DERT Lighting
1 / 5

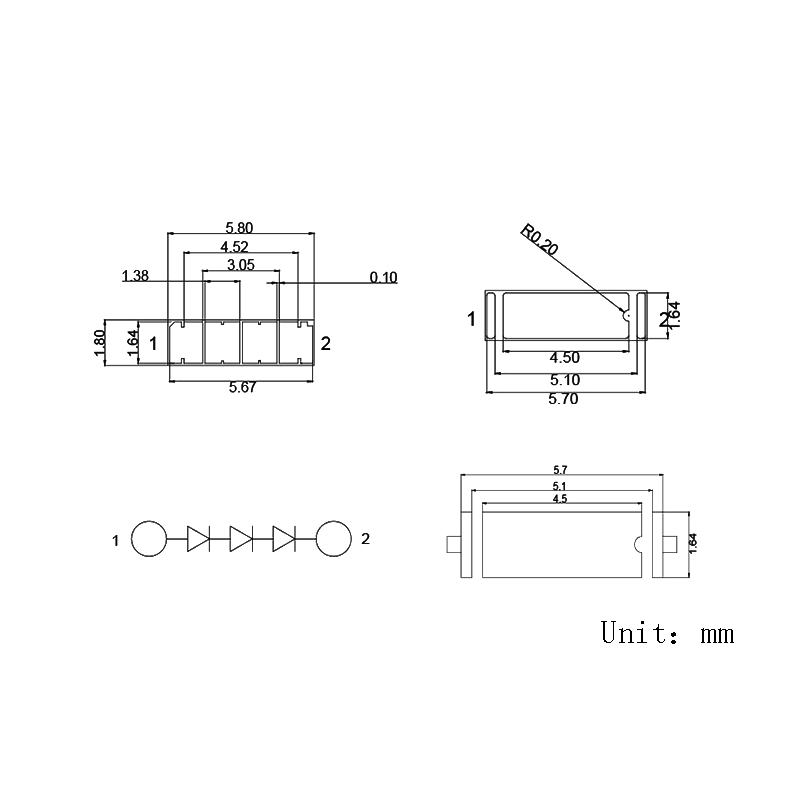

Outline Dimension:
Unit: mm | Tolerance: ±0.05mm
Key Features:
Application:
Absolute Maximum Rating (Ta=25°C):
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Forward current | If | 1.5 | A |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 15 | W |
| Operating temperature | Top | -40~+85 | °C |
| ESD (Human-body mode) | -- | 2 | KV |
| Storage temperature | Tstg | -40~+85 | °C |
| Peak pulsing current | lfP | 700 | mA |
Electrical Characteristics (Ta=25°C):
| Parameter | Test Condition | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Color temperature | If=1500mA | CCT | 5000 | --- | 6000 | K |
| Forward voltage | If=1500mA | Vf | 9.3 | --- | 9.6 | V |
| Luminous intensity | If=1500mA | Iv | 1300 | --- | 1500 | lm |
| Viewing angle | If=1500mA | 2θ1/2 | --- | 120 | --- | Deg |
| Reverse current | Vr=5V | Ir | --- | --- | 10 | μA |
Dual color red and green 3227 bi-color smd led for charger
Hot selling promotion 0805 smd led diode use for car LED display
1206 smd led diode 3.2x1.6x0.6mm 3216 led diode
PACKAGE:
Standard export carton packing ensures safe delivery of your orders.
DELIVERY TIME:
1-7 days after confirming order. Detailed delivery dates are decided according to the production season and order quantity.

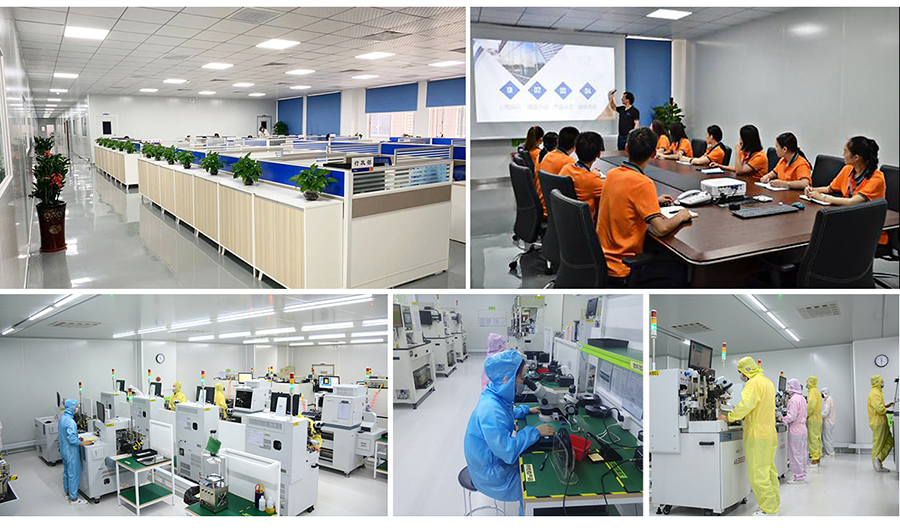

Established in 2004, our facility features a 100,000-grade purification constant temperature and humidity anti-static production workshop. We specialize in the production of various LEDs, including PCB, bracket, and TOP type directories.
With 20 years of management experience in the packaging industry, we have accumulated rich expertise in R&D and packaging technology. Our monthly production capacity exceeds 5,000 million (5000KK) pieces, supported by a scientific management system and rigorous quality control.
12,000,000pcs per day
Multiple testing sets and SGS authorized
Custom designs based on requirements
20 years of management experience
