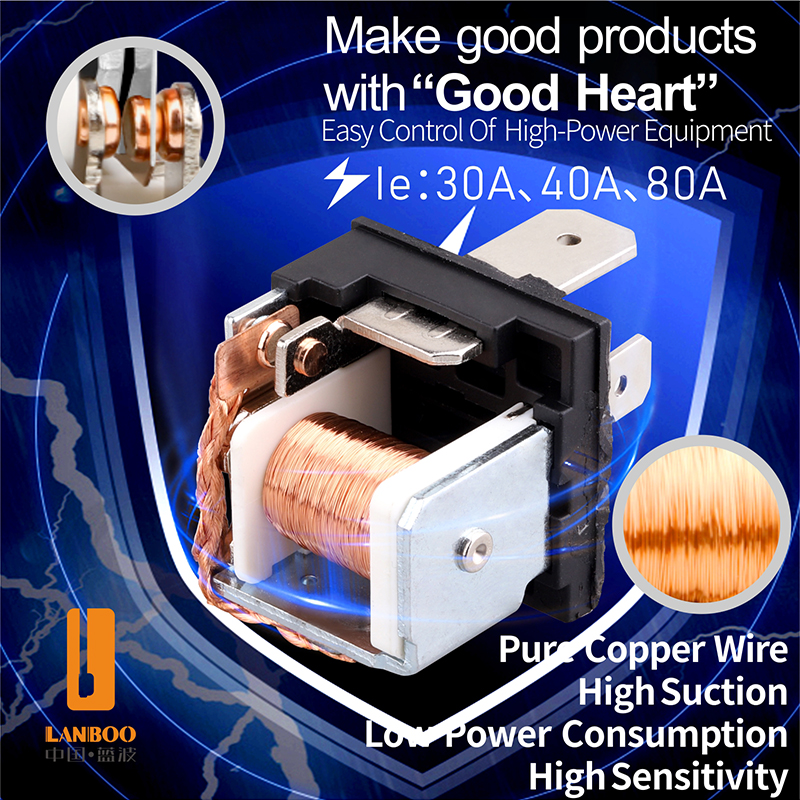

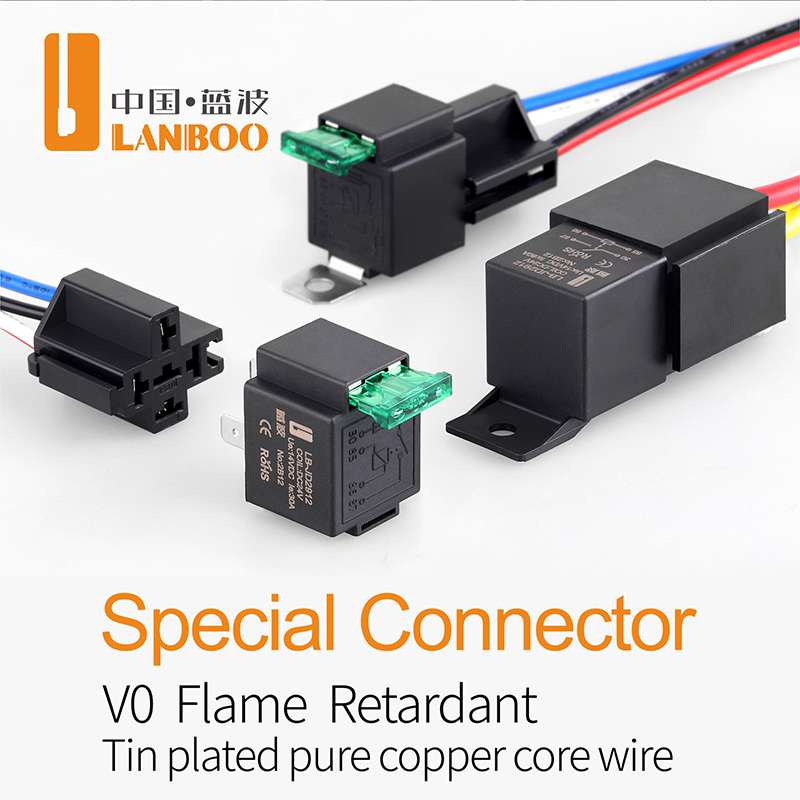

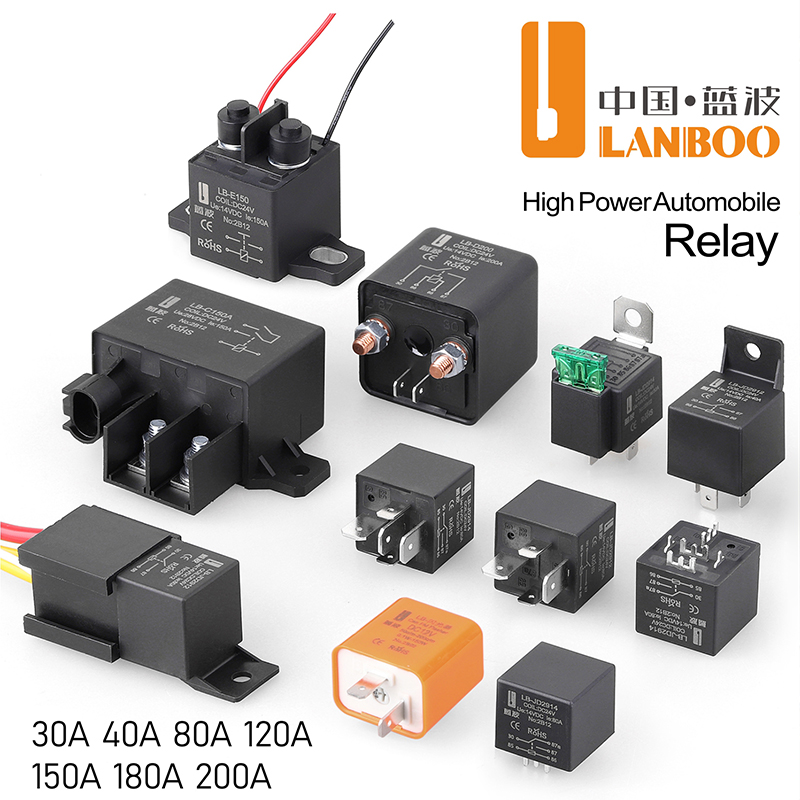

LANBOO 12V 24V Car Relay 4Pin 5 Pin High Current 30A/40A Waterproof Car Horn Start Headlight Modification
LANBOO 12V 24V Car Relay 4Pin 5 Pin High Current 30A/40A Waterproof Car Horn Start Headlight Modification
LANBOO 12V 24V Car Relay 4Pin 5 Pin High Current 30A/40A Waterproof Car Horn Start Headlight Modification
LANBOO 12V 24V Car Relay 4Pin 5 Pin High Current 30A/40A Waterproof Car Horn Start Headlight Modification
LANBOO 12V 24V Car Relay 4Pin 5 Pin High Current 30A/40A Waterproof Car Horn Start Headlight Modification
1 / 5
LANBOO 12V 24V Car Relay 4Pin 5 Pin High Current 30A/40A Waterproof Car Horn Start Headlight Modification
LANBOO 12V 24V Car Relay 4Pin 5 Pin High Current 30A/40A Waterproof Car Horn Start Headlight Modification
LANBOO 12V 24V Car Relay 4Pin 5 Pin High Current 30A/40A Waterproof Car Horn Start Headlight Modification
LANBOO 12V 24V Car Relay 4Pin 5 Pin High Current 30A/40A Waterproof Car Horn Start Headlight Modification
LANBOO 12V 24V Car Relay 4Pin 5 Pin High Current 30A/40A Waterproof Car Horn Start Headlight Modification

LANBOO 12V 24V Car Relay 4Pin 5 Pin High Current 30A/40A Waterproof Car Horn Start Headlight Modification

Send Inquiry

Product Description

Specification

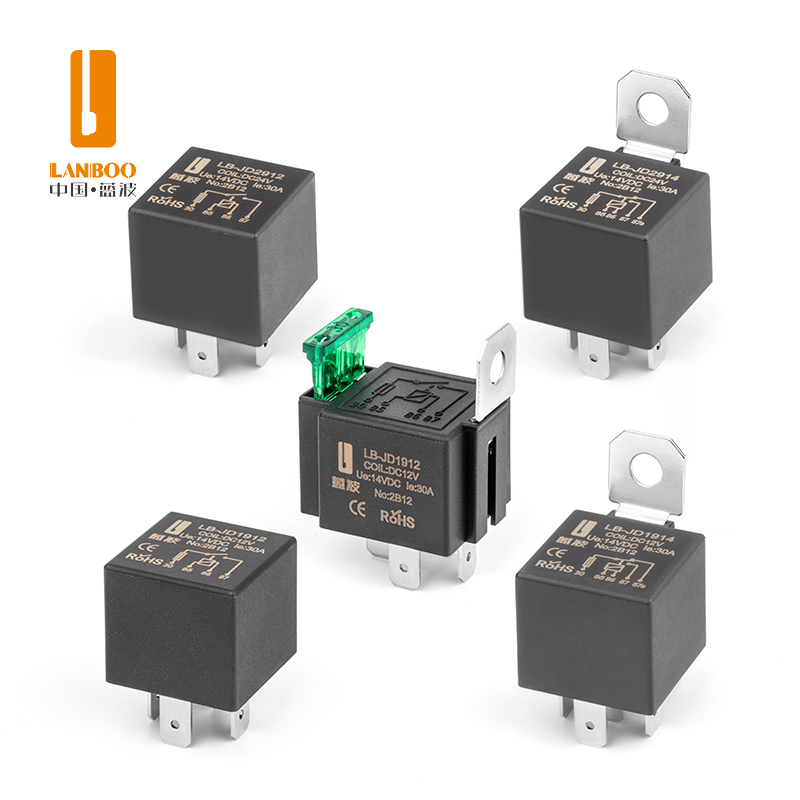

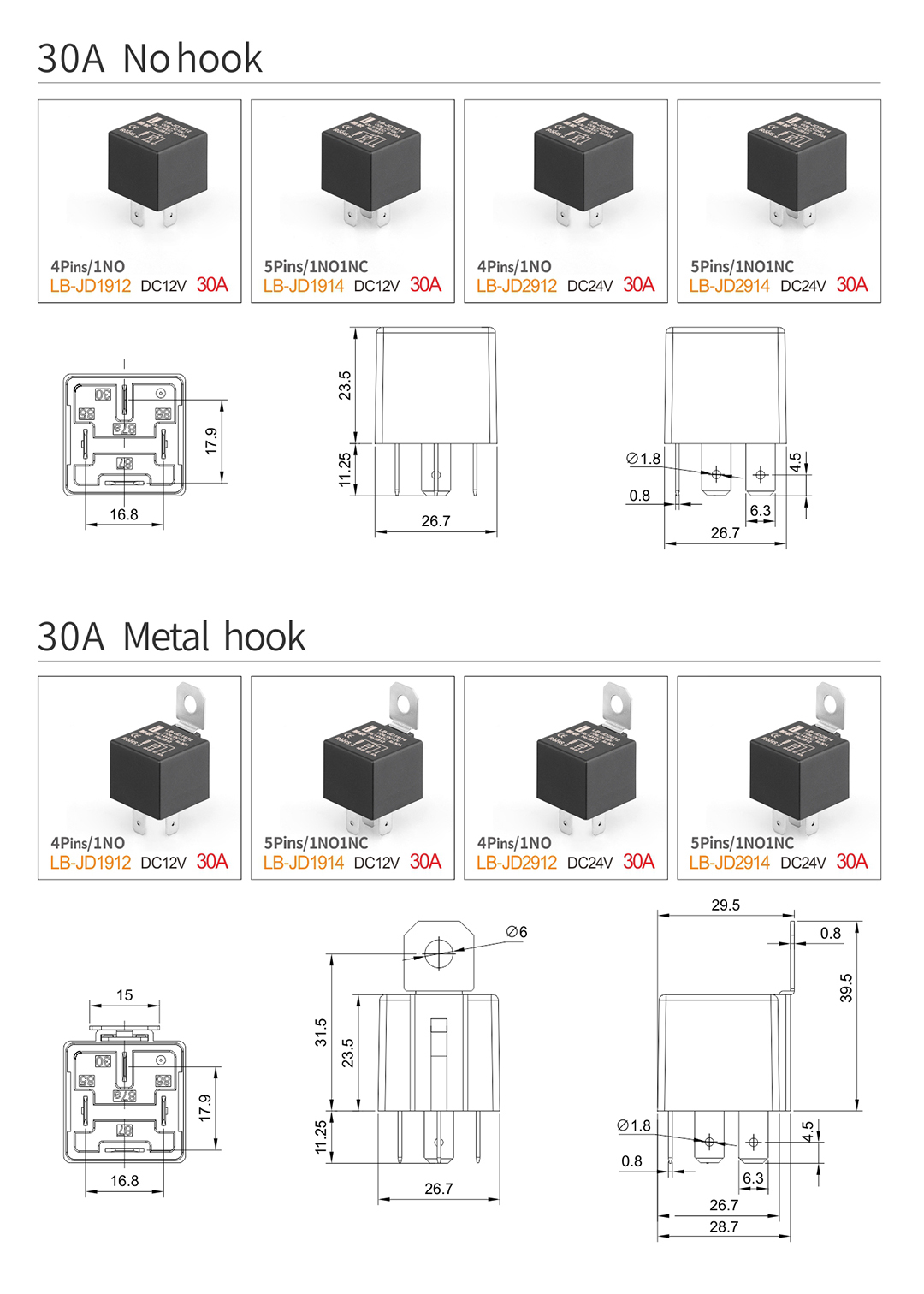

Product number LBJD1912/LBJD1914/LBJD2912/LBJD2914

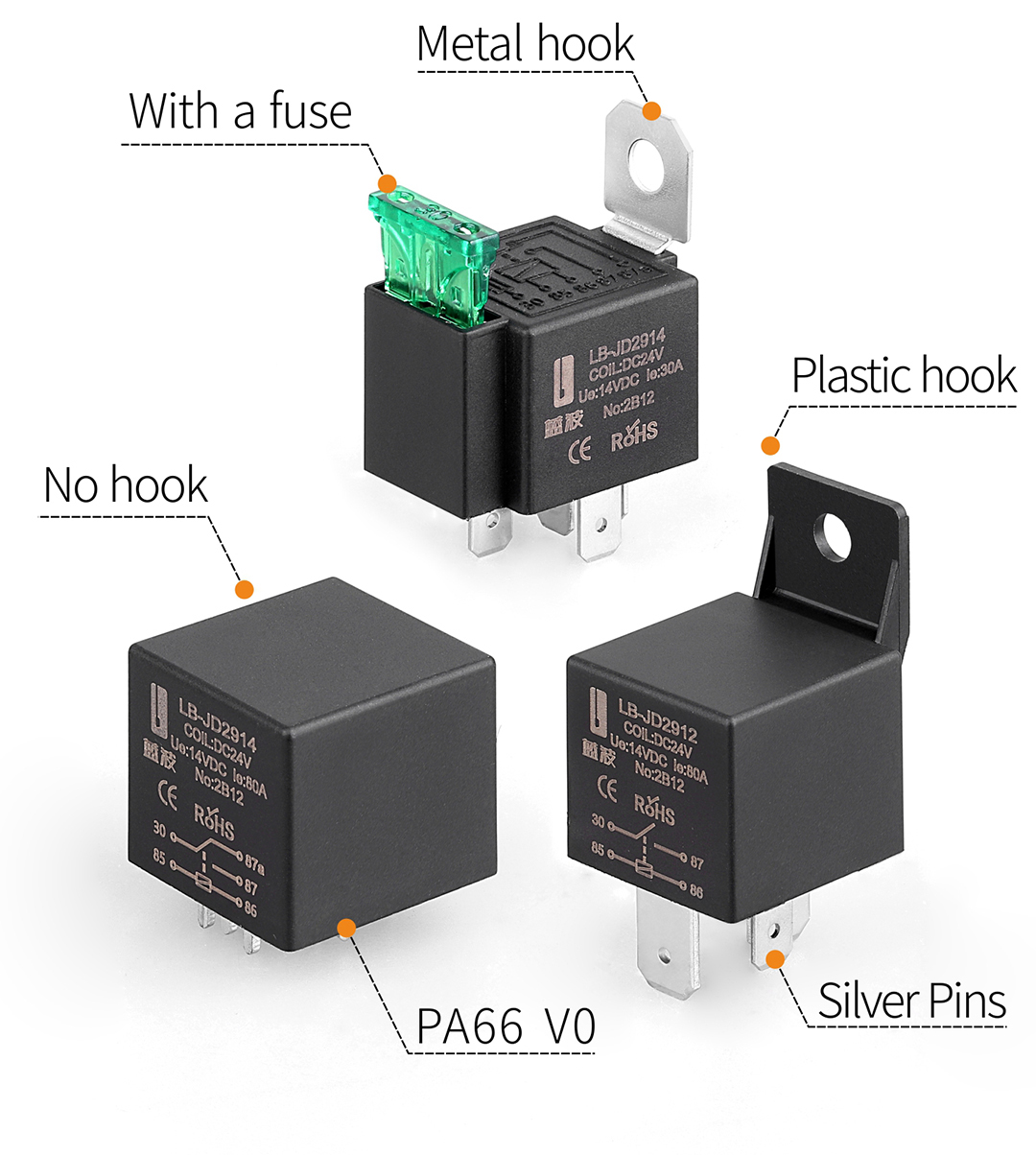

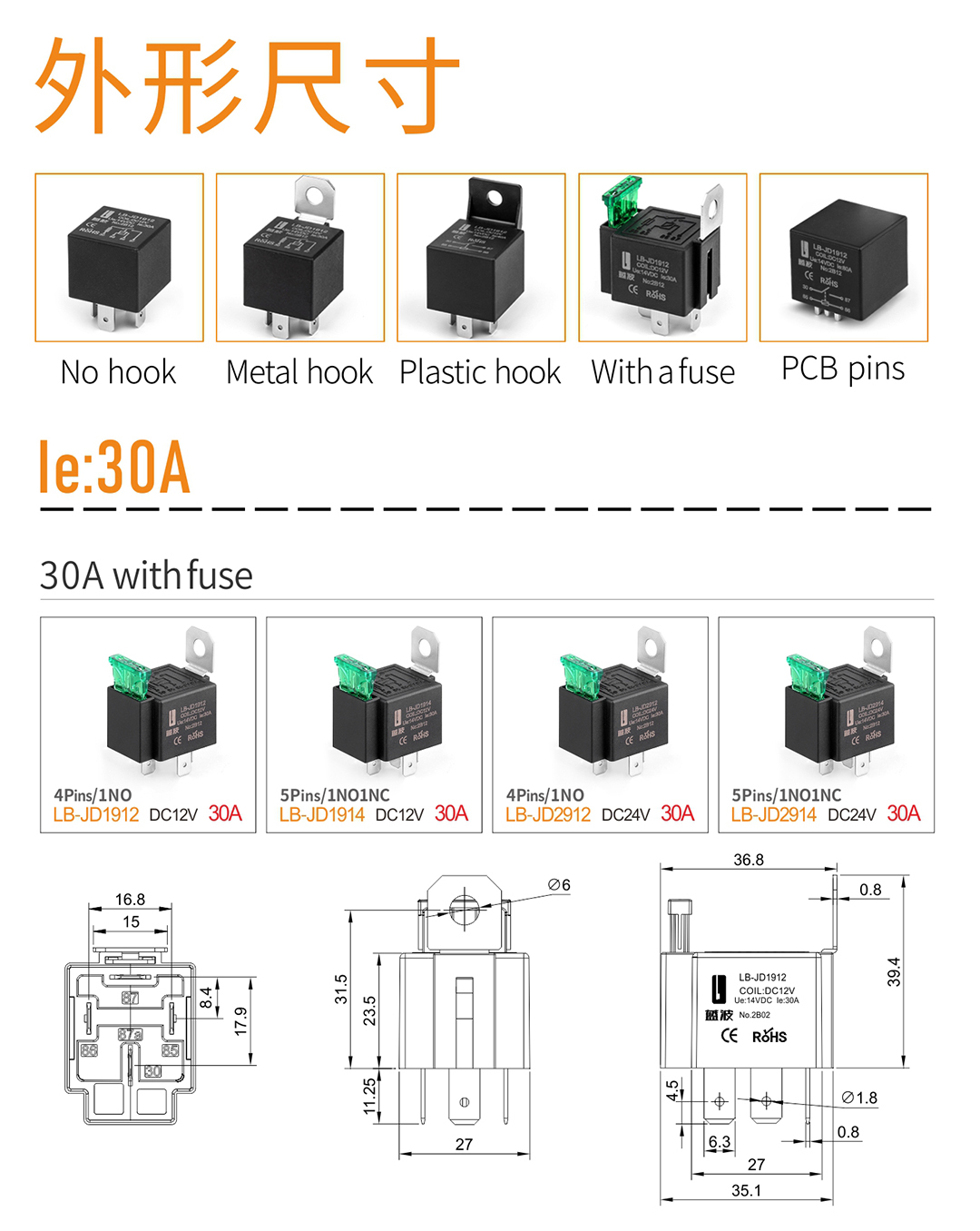

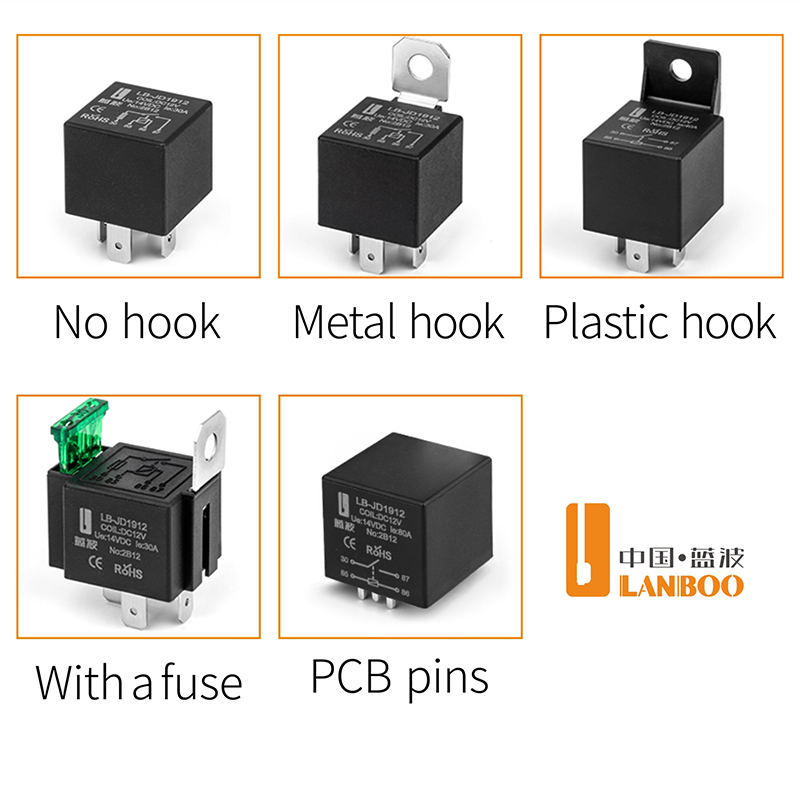

Style Common style, Metal Hook, Plastic Hook, Hook & Fuse, PCB Pins
Contact type 1NO / 1NO1NC
Pin type 4PIN, 5PIN, PCB
Coil voltage DC 12V / DC 24V
Contact load 30A: 30A/13.5VDC; 20A/27VDC

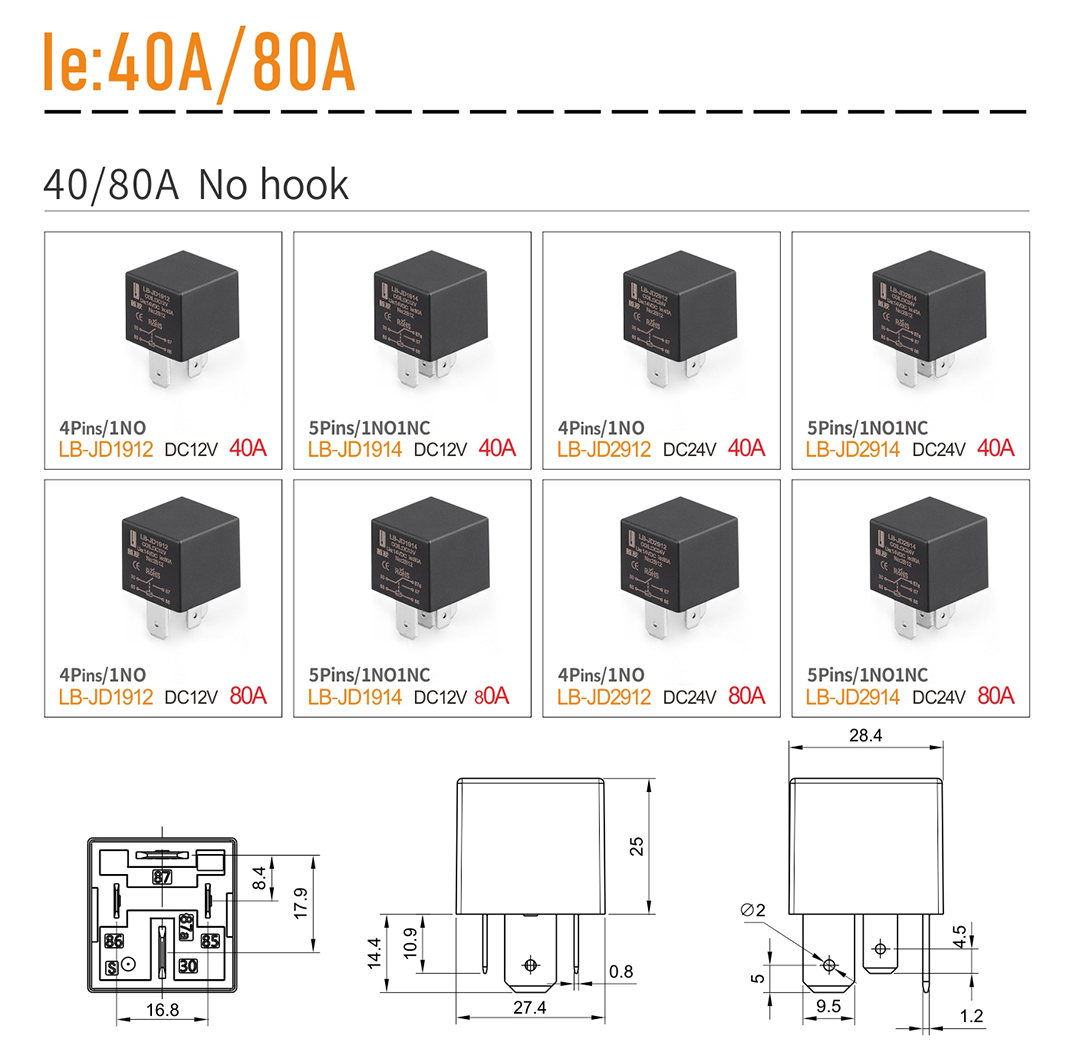

40A: 40A/13.5VDC; 20A/27VDC
80A: 70A/13.5VDC; 40A/27VDC
Suction and release time <25ms
Coil power consumption DC12V is about 1.8W
Electrical life ≥ 100,000 times
Mechanical life ≥ 1 million times (switching frequency: 300cpm)
Product certified CE ROHS
Product Description
Product Image 1

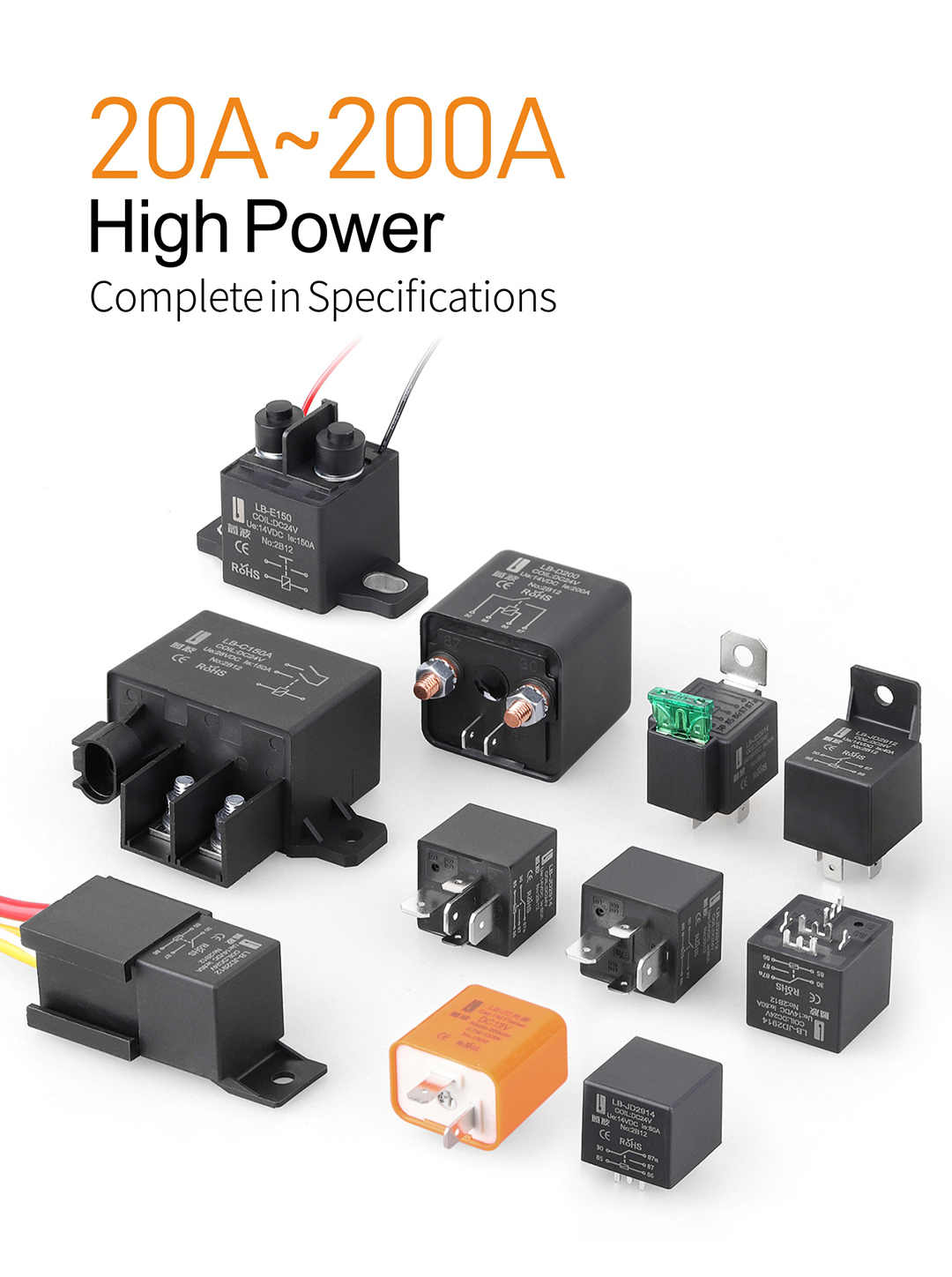

Product Image 2
Product Image 3
Product Image 4

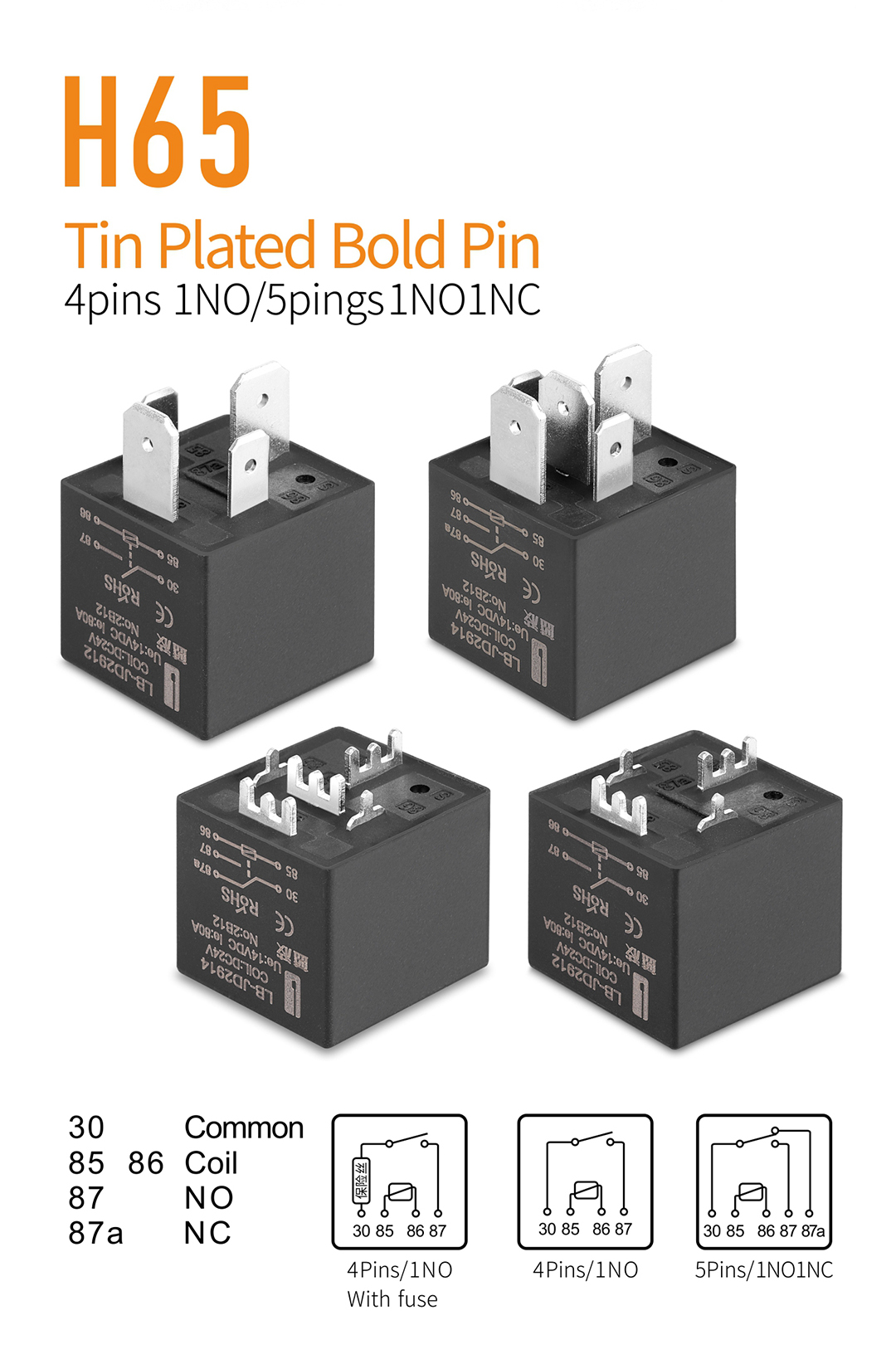

Product Image 5

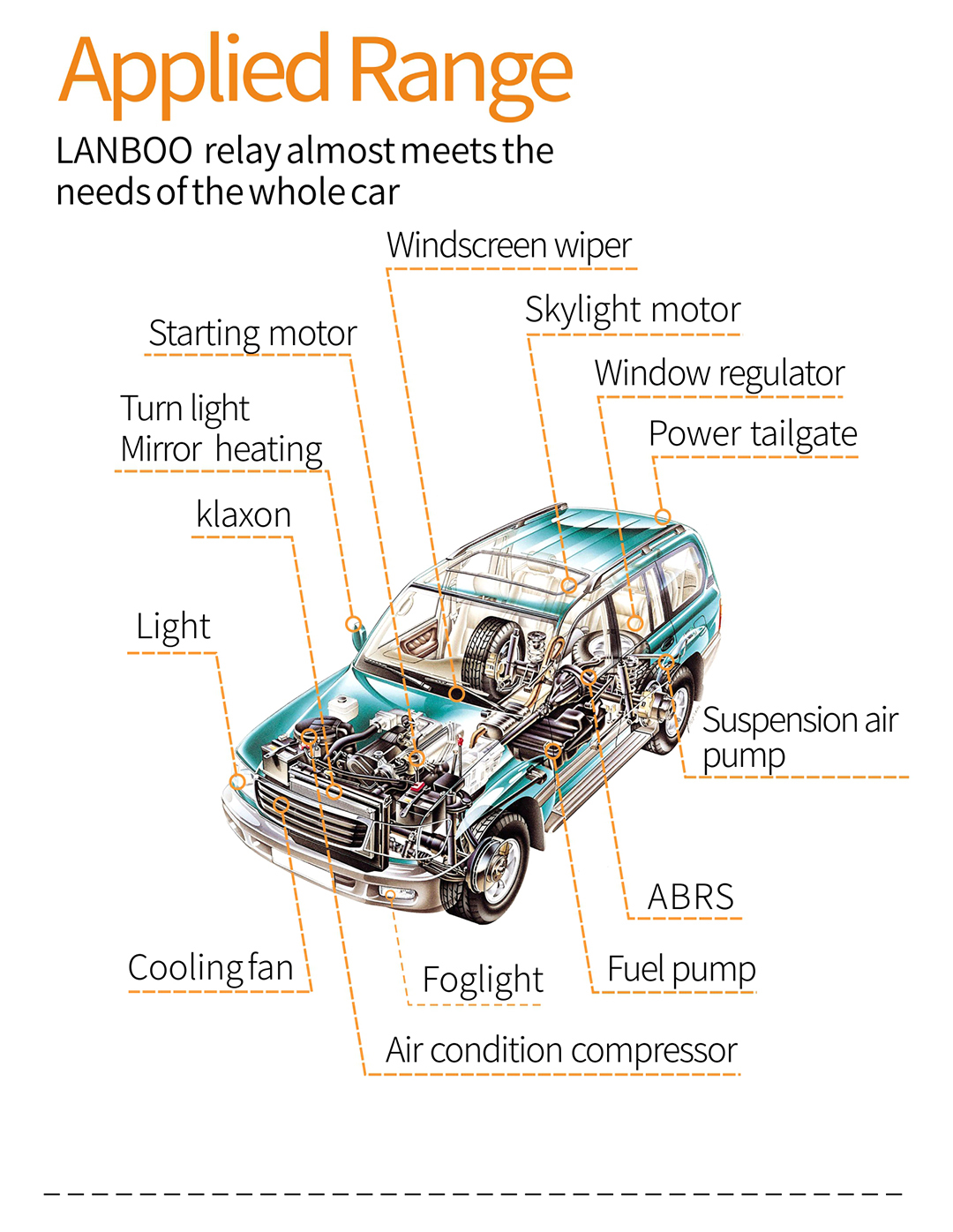

Product Image 6
Product Image 7
Product Image 8
Product Image 9

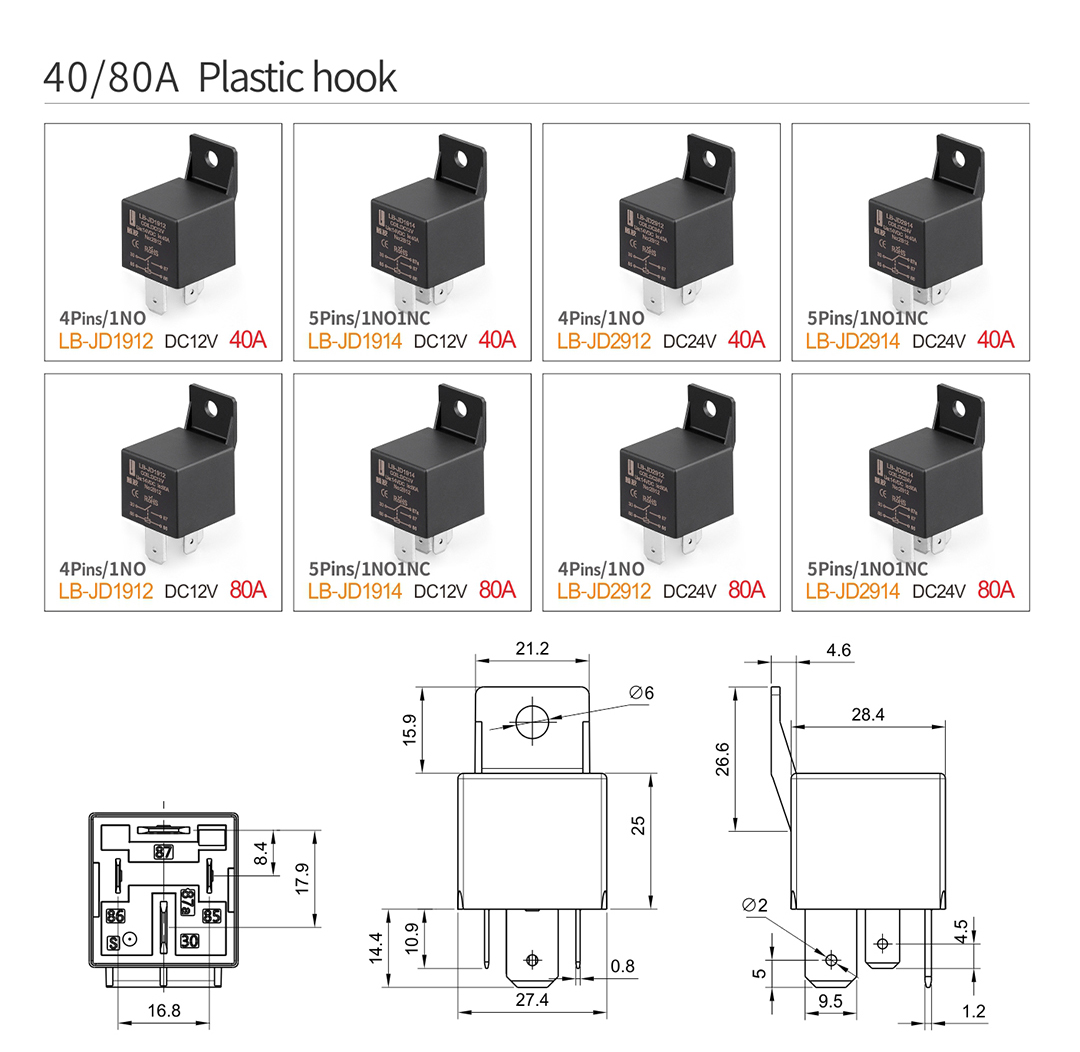

Product Image 10
Manufacturing & Production

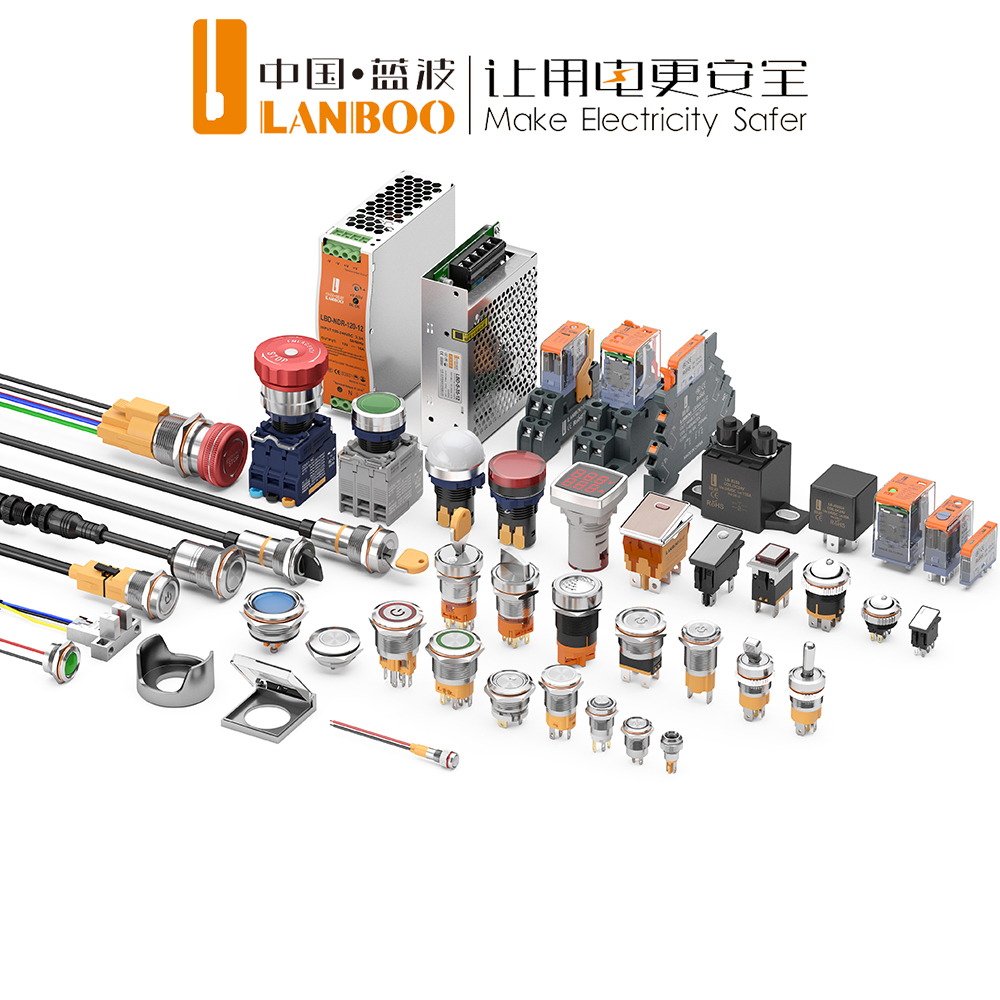

Manufacturing Tour 1
Manufacturing Tour 2
Manufacturing Tour 3

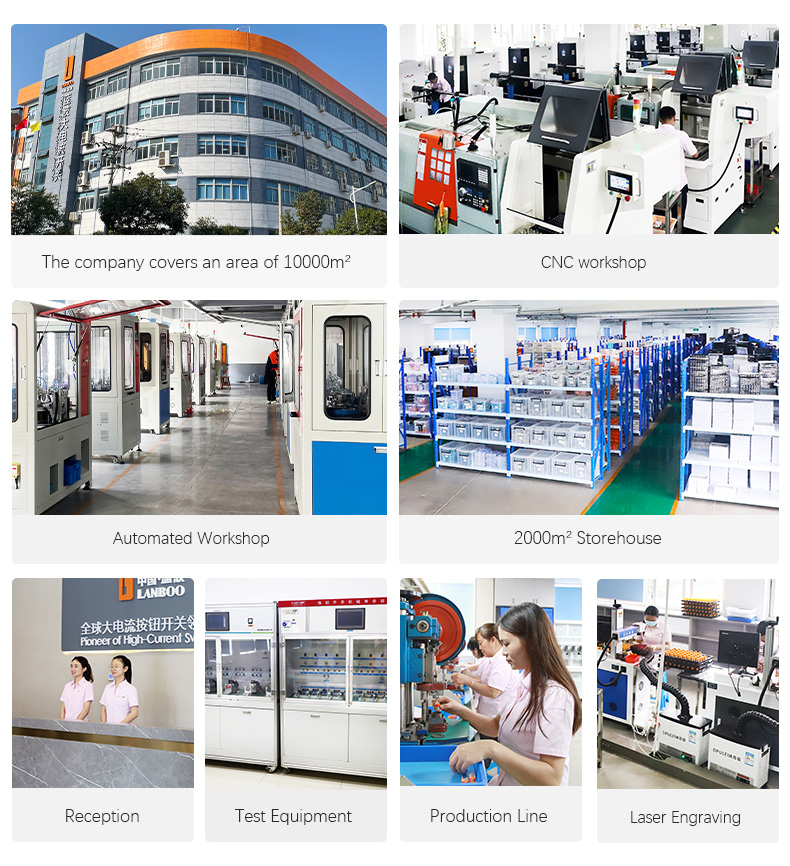

Manufacturing Tour 4
Certifications
Certifications Certificate
Packing & Delivery
Packing Detail 1
Packing Detail 2
Frequently Asked Questions (FAQ)
Q1: What are the available coil voltage configurations for these automotive relays?
A: These relays are designed to operate efficiently with standard automotive voltage systems, offering both DC 12V and DC 24V options to match your specific application requirements.
Q2: What load currents are supported by this relay series?
A: We support multiple load classes depending on your system requirements, including 30A, 40A, and heavy-duty 80A ratings, configured to work stably across 13.5VDC or 27VDC limits.
Q3: Which contact types can I choose for these models?
A: This product line features various contact setups including 1NO (Normally Open) and 1NO1NC (Normally Open & Normally Closed) combinations to suit different circuit layouts.
Q4: What is the expected service life of these automotive relays?
A: Designed for superior durability, they deliver an electrical lifespan of over 100,000 operations, and a mechanical lifespan reaching 1 million cycles under standard switching conditions.
Q5: What safety standards and certifications do these relays meet?
A: To guarantee environmental compliance and safe usage in demanding conditions, the entire product series carries official CE and RoHS certifications.
