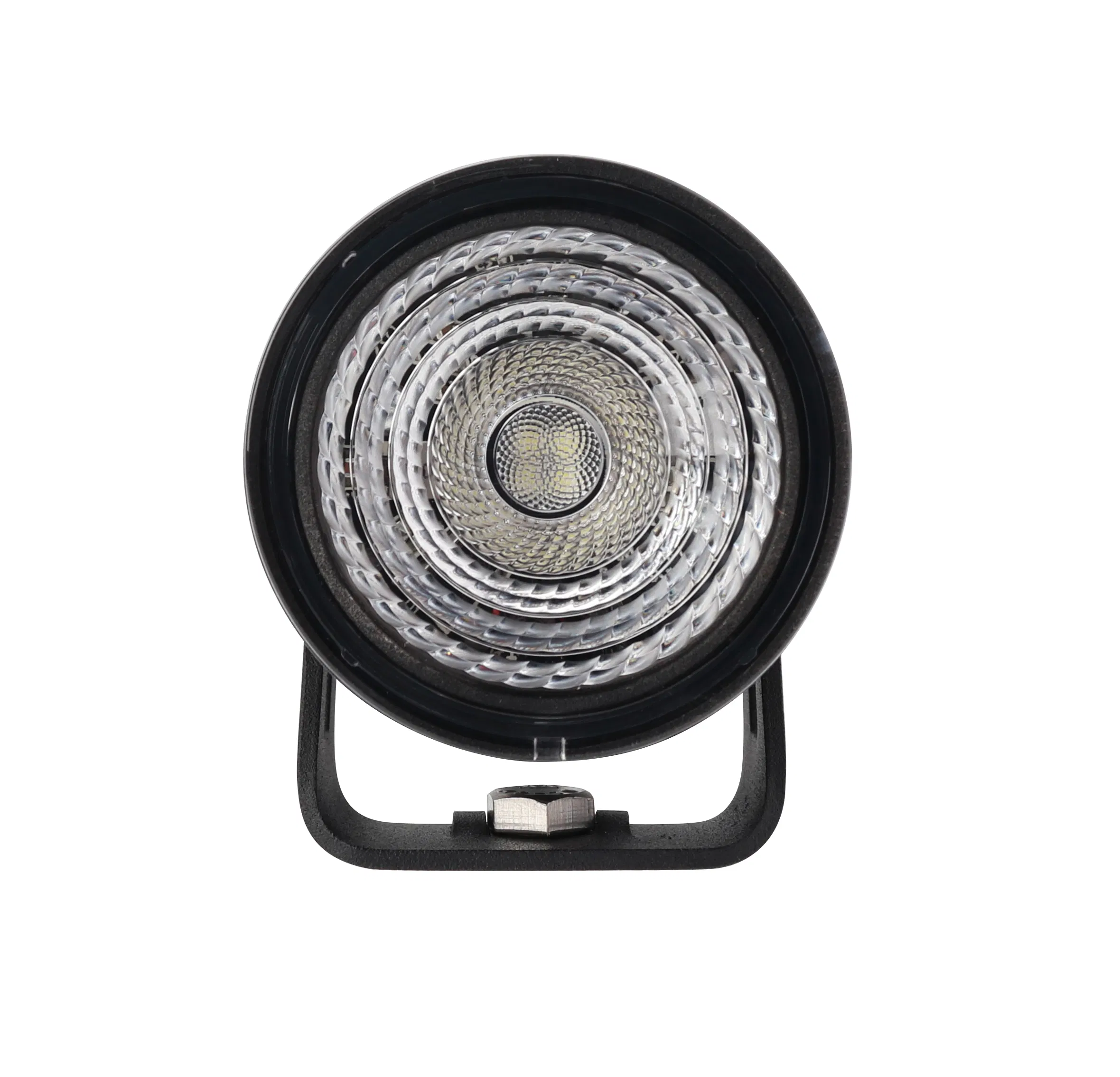

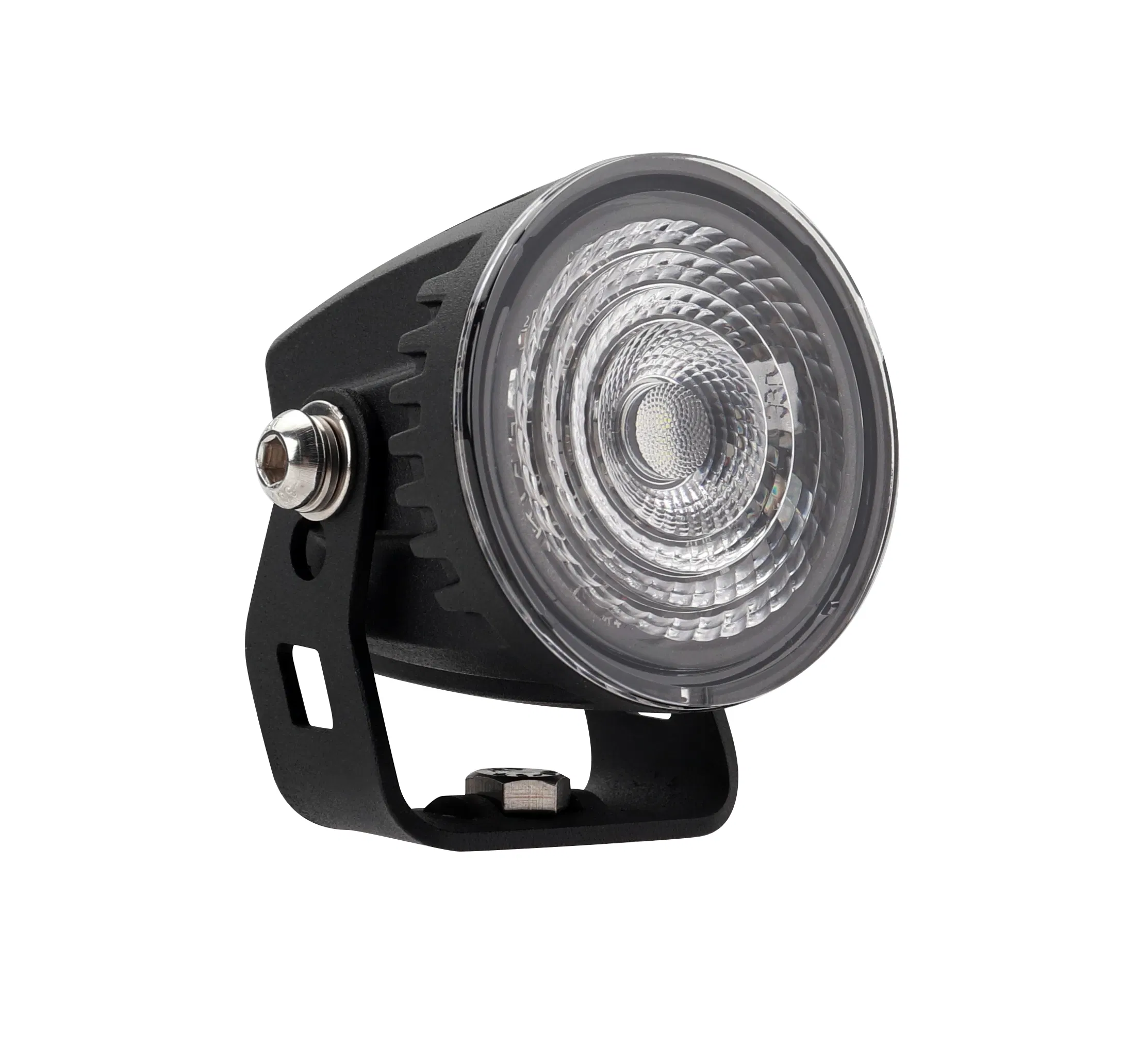

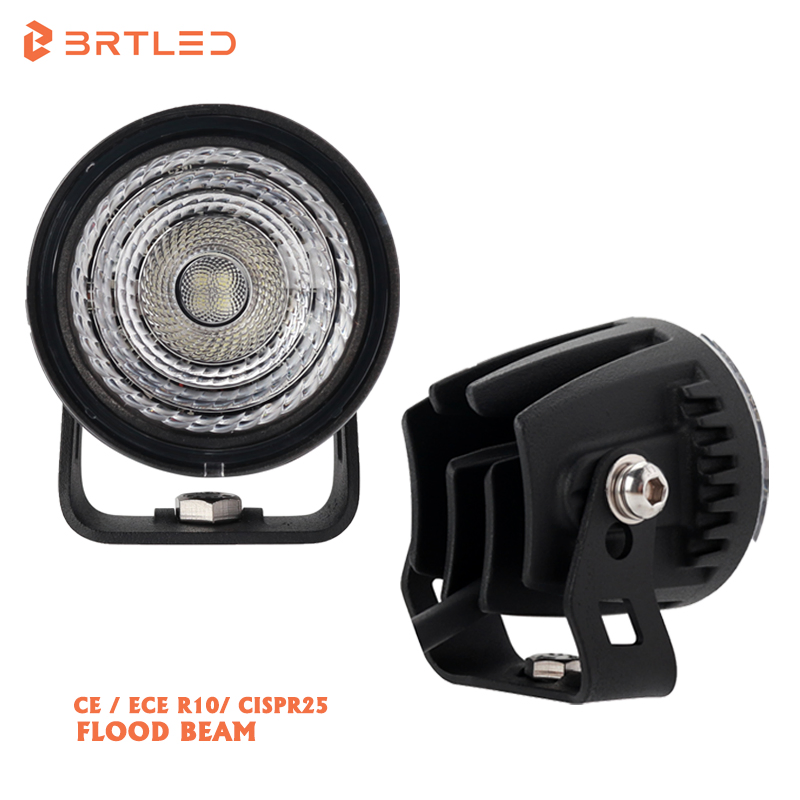

2inch LED Work Light Mini Motorcycle LED Offroad Trailer Tractor 12W Flood Beam Truck Light Systems

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info

Model NO.BLW0403R
IP RatingIP68
Power11-15W
ApplicationUniversal Motorcycle LED
VoltageDC9-36V
Voltage TypeDC
CertificationCE, EMC, REACH, RoHS, CE / ECE R10/ Cispr25,IP68/IP69K
Size2inch--55*51.7mm
Watts12W
Beam PatternFlood Beam
Luminous Flux (Lm)1000 Lm
LED4PCS*3W LEDs
LED Temperature6000K
FeaturesAnti Rust / Corrosion / Freezing Resistance
FunctionElectronic Thermal Management (Etm)
Lux1lux@42m
Specification55*51.7MM
OriginChina
Production Capacity50,000 Pieces/Year

Product Description

LED Work Light

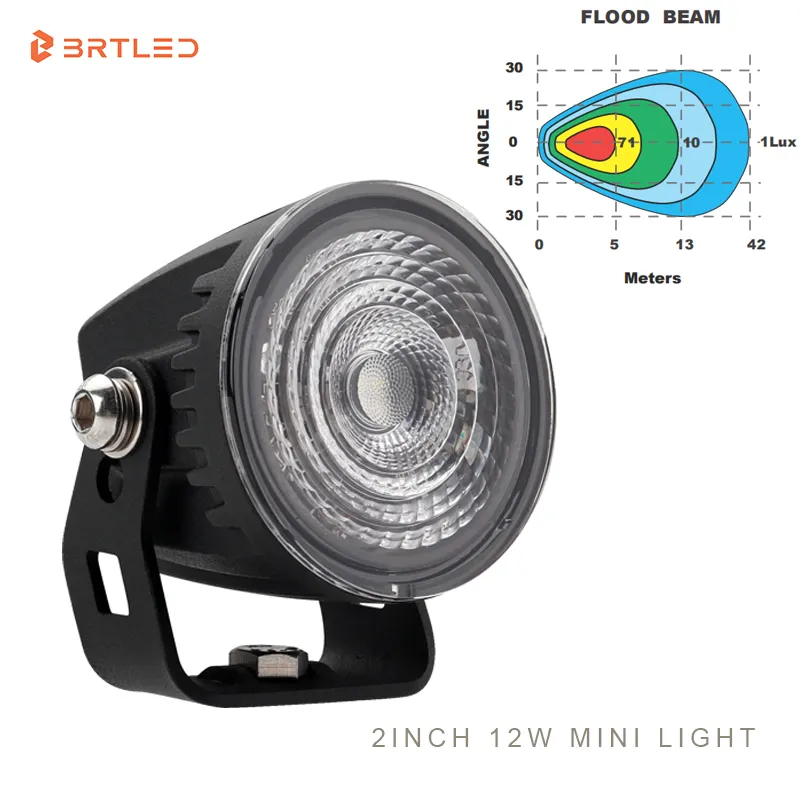

LED Detail

Main Features

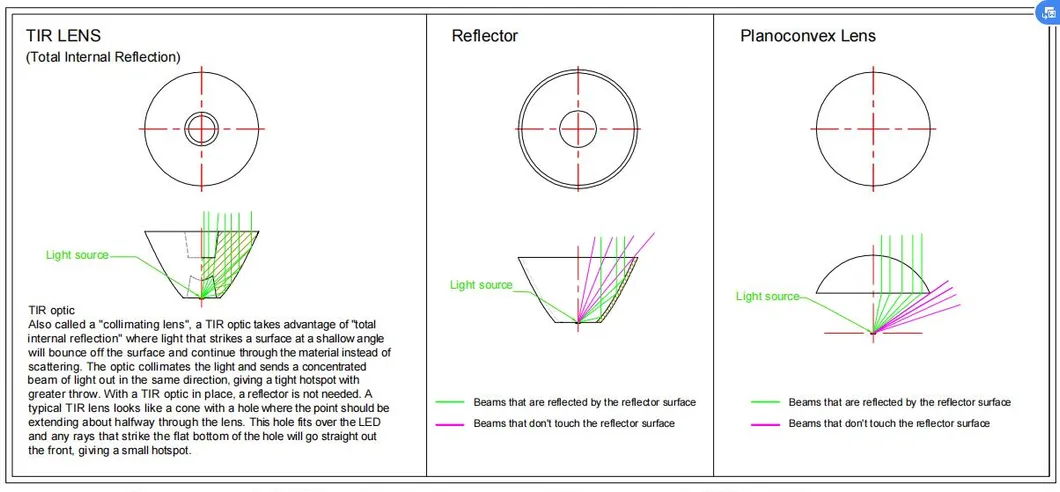

  • TIR Optic Lens System
  • Electronic Thermal Management (ETM)
  • UV Resistant, Shock Resistant > 20G
  • Superior IP rating: IP68 & IP69K
  • Highest EMC level: CE / ECE R10 / CISPR 25 CLASS 3
  • Over / Under Voltage Protection
  • Anti Rust / Corrosion / Freezing Resistance
  • Reverse Polarity Protection

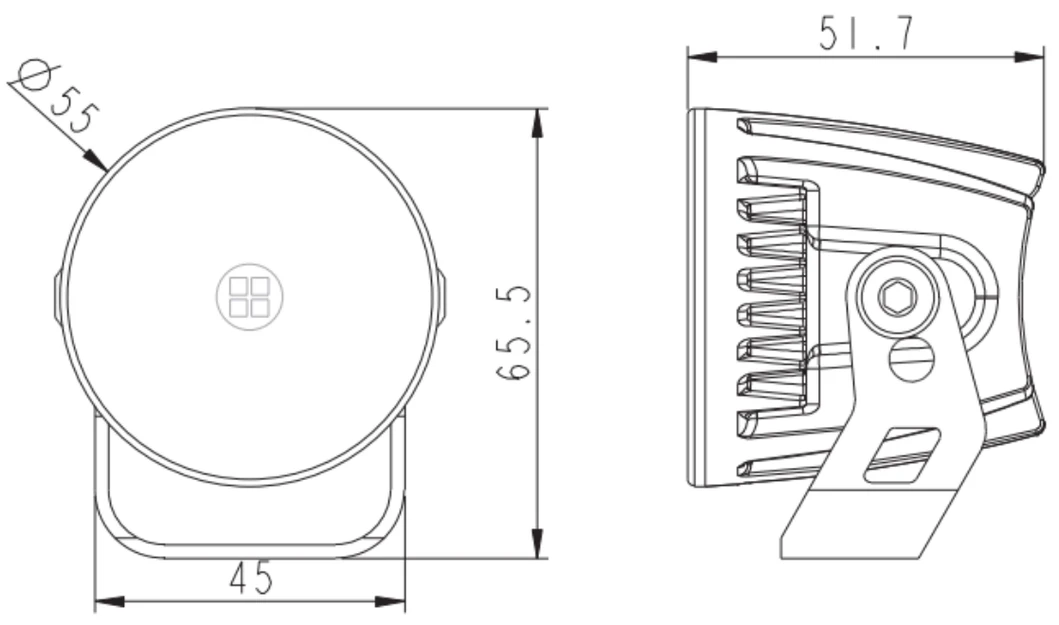

Mounting Dimension

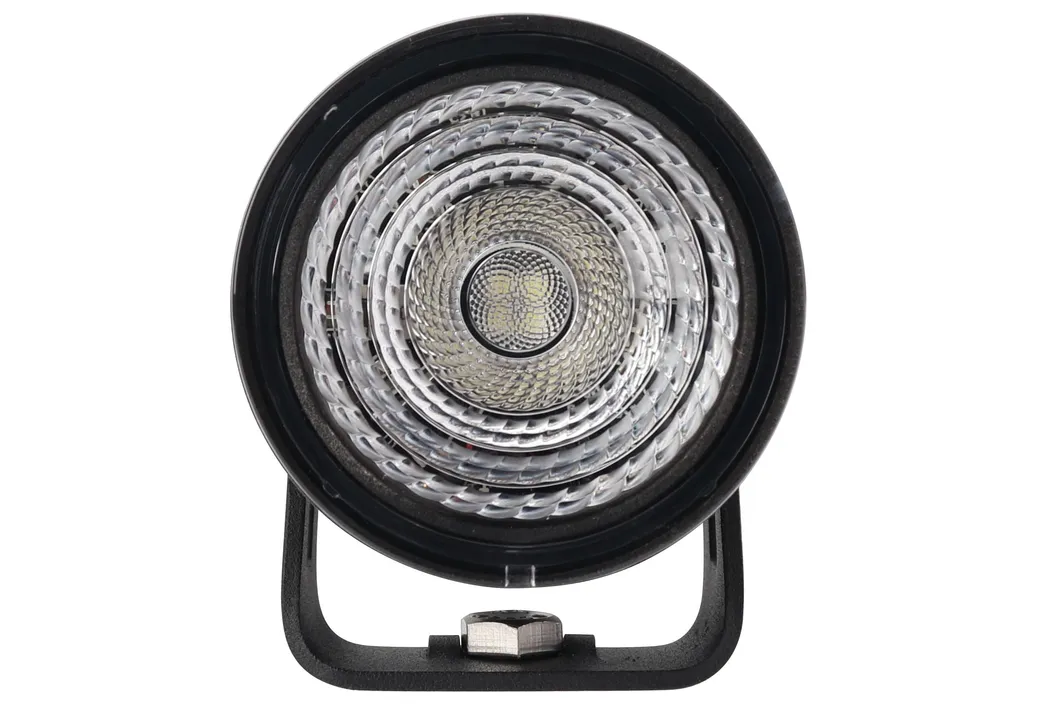

Angle 1

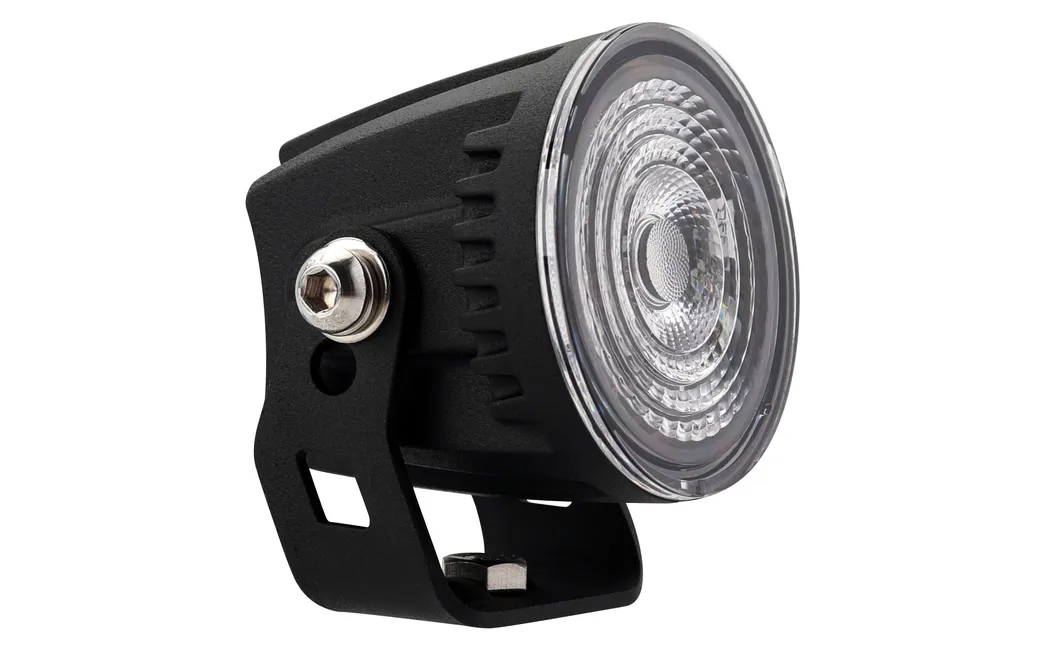

Angle 2

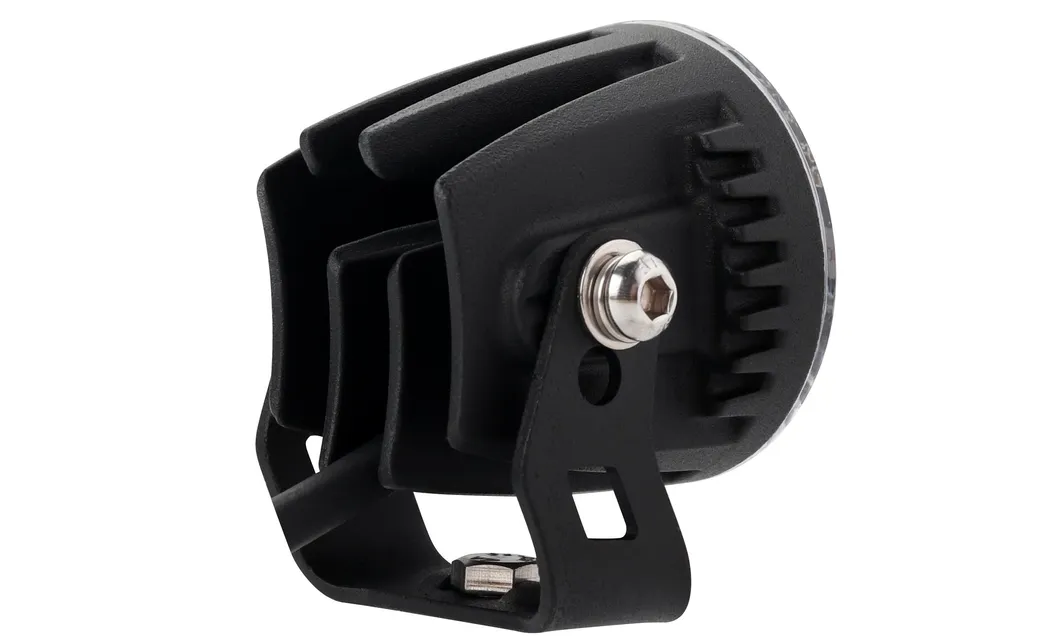

Angle 3

Technical Parameters

Input Voltage9-36V DC
Wattage12W
Color Temp.6000K
Raw Lumens1000lm
Beam PatternFlood Beam
Available Size2inch (55*51.7mm)
IP RatingComply with IP68, IP69K
Optic SystemSide luminous reflector cup
LED4pcs*3W LED
Life Span50,000+ hours
EMC LevelCISPR 25 CLASS 3
Other SpecIntegrated ETM Technology to extend lifespan
CertificationCE / ECE R10 / CISPR25
Waterproof test
Component structure

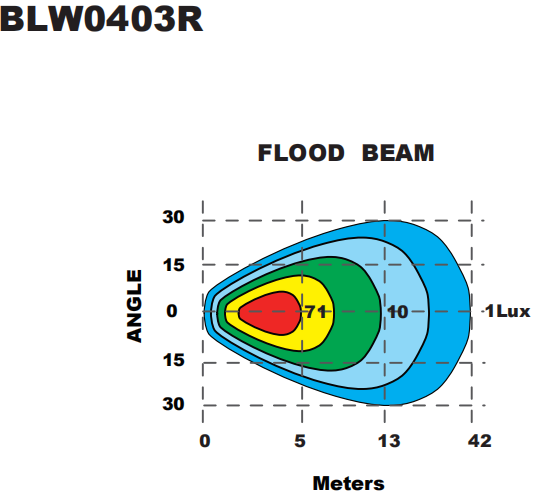

Lighting beam
Real scenario usage

Detail Show

5. Widely used on machines and vehicles

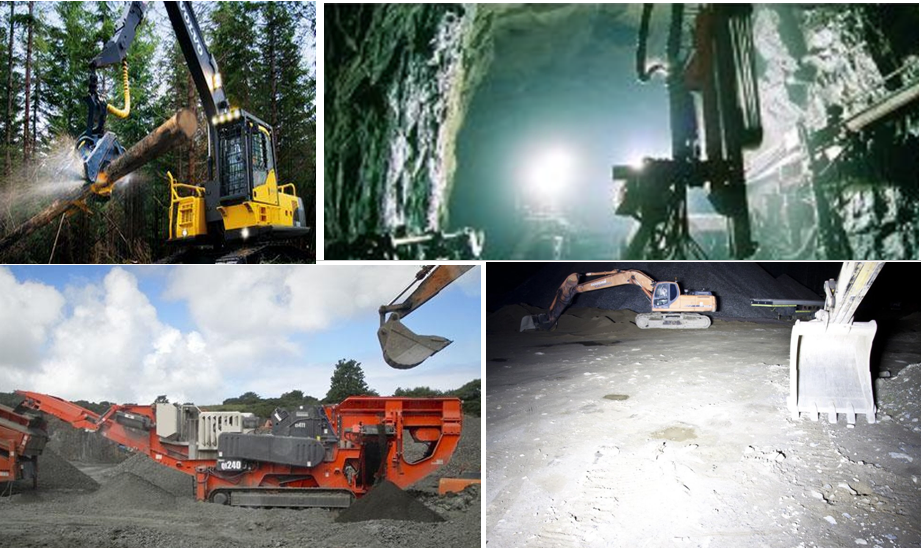

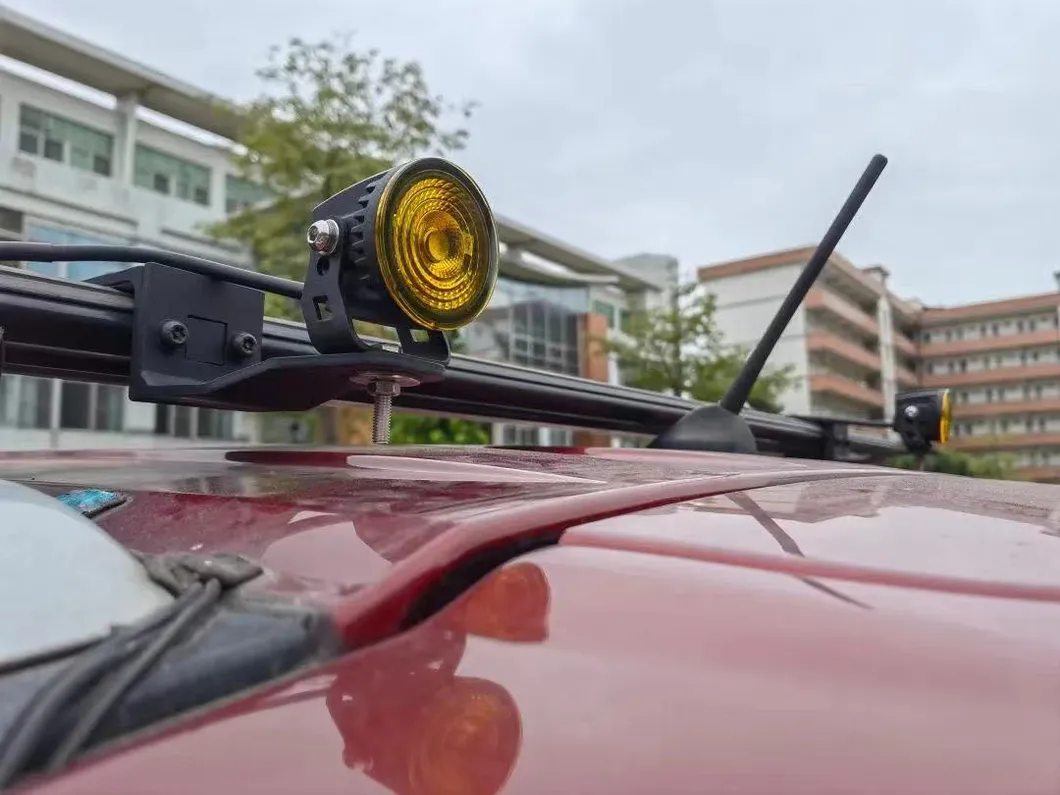

Vehicle installation showcase

More Info

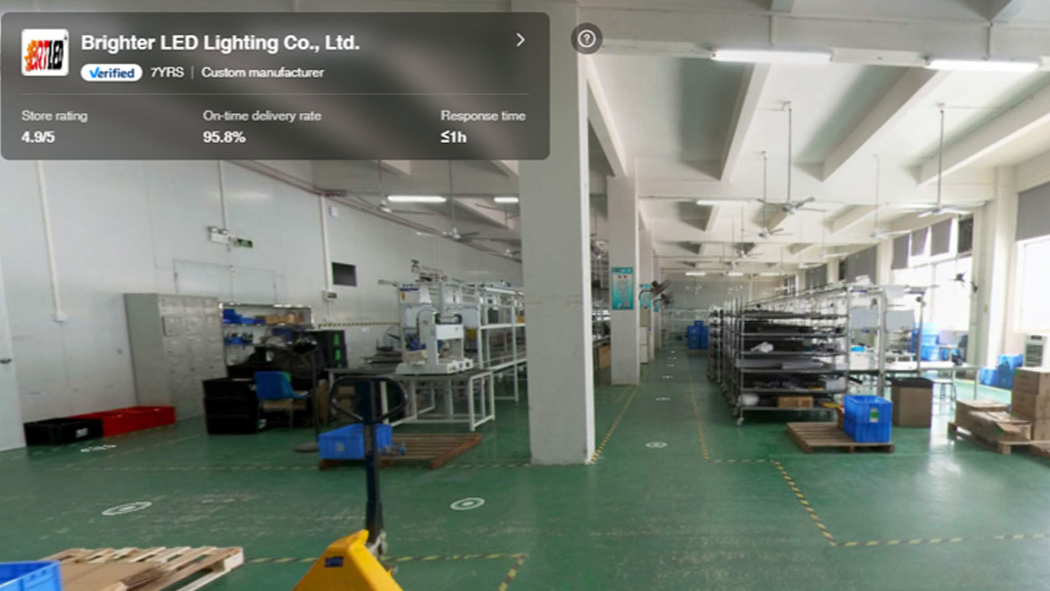

Showroom and factory details

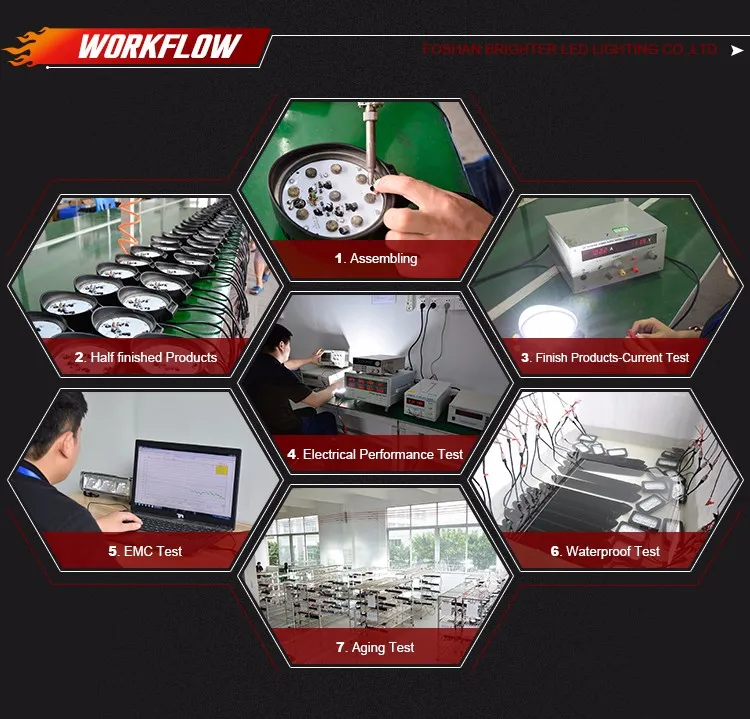

Assembly line production
Testing laboratory instruments
Product quality control tests

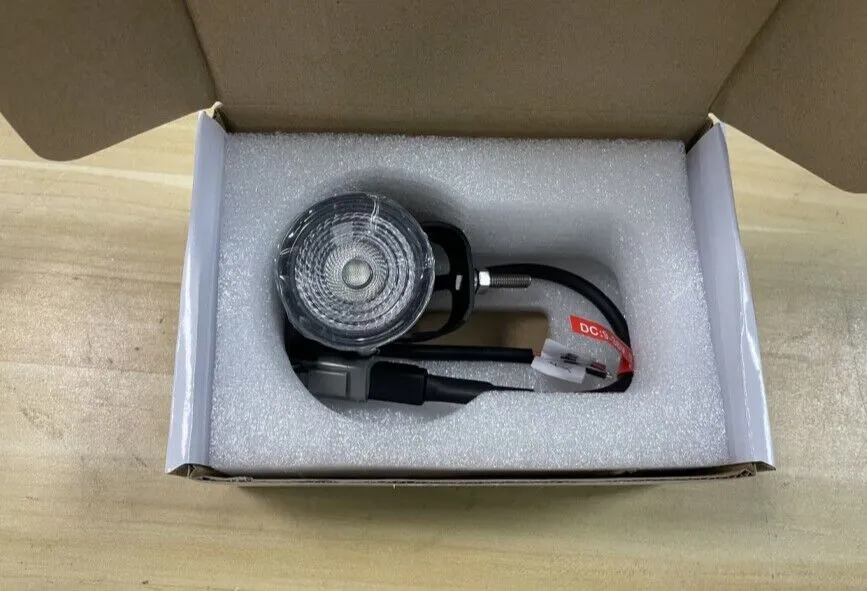

Export shipments packing
Certificates and standards listing

FAQ

1. What is the waterproof level of this LED work light?
This LED work light is built to comply with IP68 and IP69K standards, meaning it offers premium protection against high-pressure water spray, dust, and full immersion.
2. Can this light work on standard 12V and 24V vehicle electrical systems?
Yes, it operates on a wide input voltage range from DC 9V to 36V, making it fully compatible with both 12V and 24V power systems on cars, motorcycles, trucks, and tractors.
3. How does the ETM technology benefit the light's lifespan?
Integrated Electronic Thermal Management (ETM) dynamically adjusts the current flow based on the temperature of the LEDs. This prevents overheating and extends the overall operational lifespan of the light to more than 50,000 hours.
4. What makes this light suitable for harsh off-road environments?
It is built with robust materials offering anti-rust, anti-corrosion, and freezing resistance. Furthermore, it features shock resistance rated above 20G to withstand intense vibrations.
5. Will this LED light cause radio interference with other onboard electronics?
No, this light is designed with a high electromagnetic compatibility (EMC) level, meeting CE, ECE R10, and CISPR 25 CLASS 3 requirements, ensuring minimal electronic noise or interference.
6. What type of illumination does the optical system deliver?
The light features a side luminous reflector cup optic system, which creates a wide, evenly distributed Flood Beam pattern, ideal for close-range work areas and broad path lighting.
