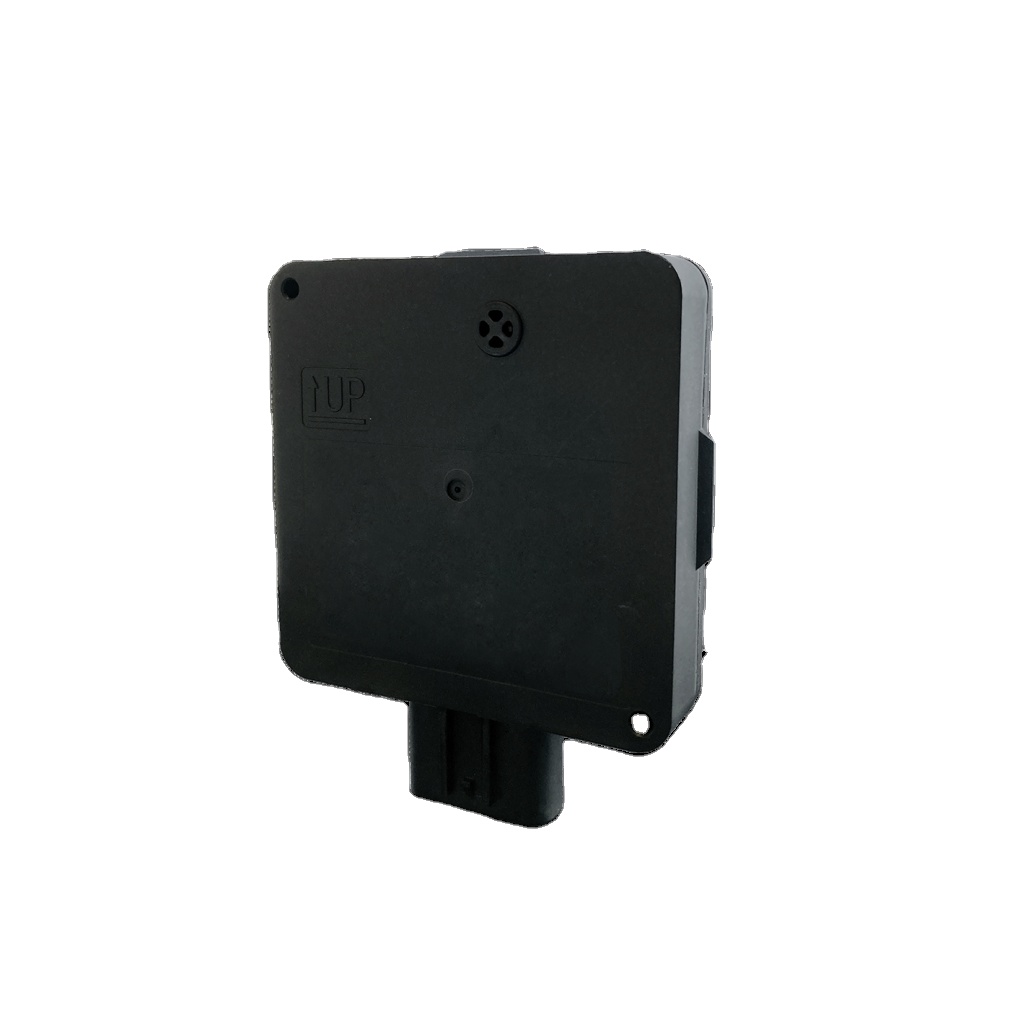

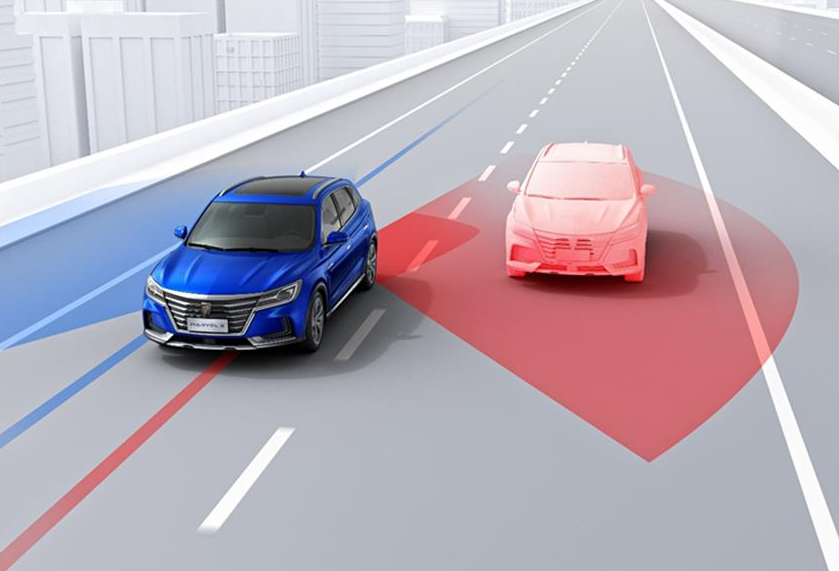

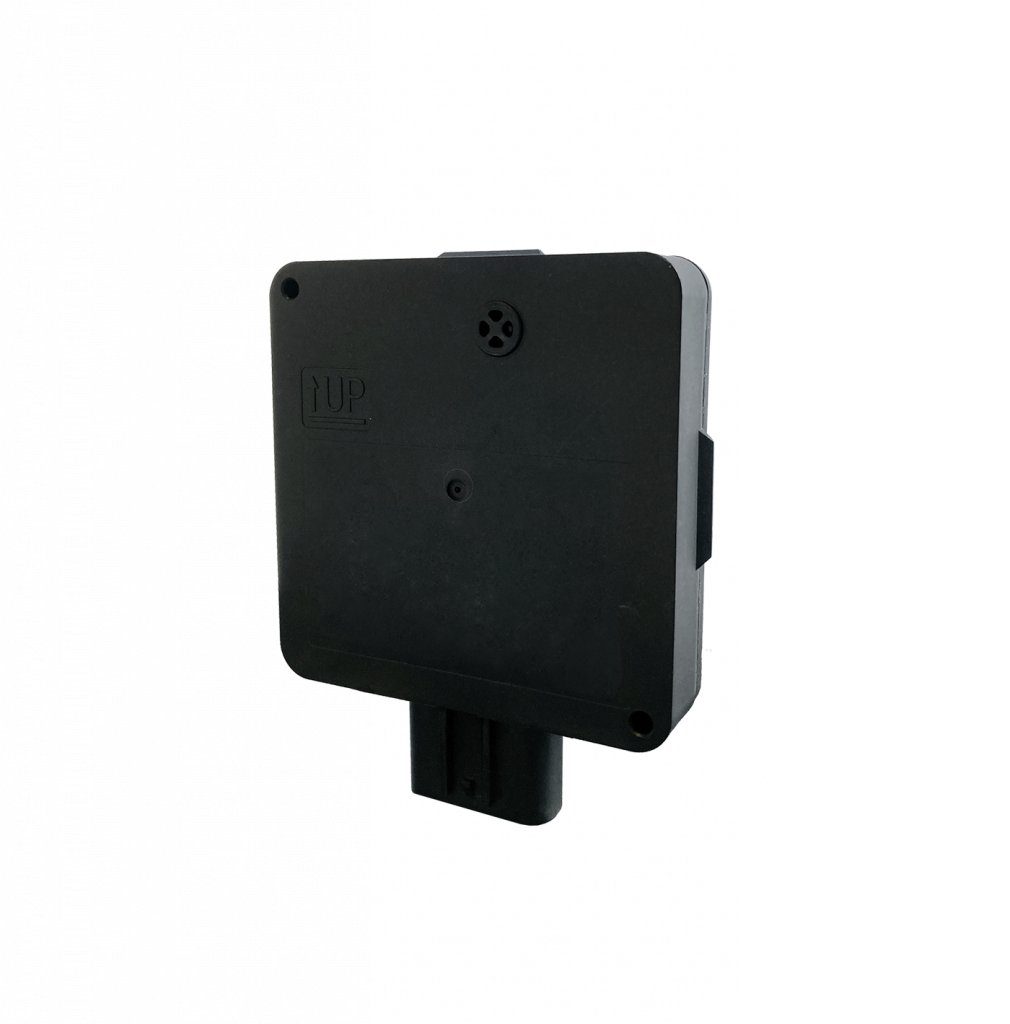

P1 is the first generation corner radar which provides integrated BSD LCA DOW RCW RCTA(B) FCTA(B) features, supporting up to L3 ADAS features.
The P1 is a high-performance 77 GHz short-range radar sensor that was developed specifically for advanced convenience and safety features as well as autonomous driving.
| Antenna | 3Tx/4Rx | Weight | 80g |
| Max. Detection Range | 180M | Size | 70 x 70 x 14.8 mm |
| Min. Detection Range | 0.33M | Interface | CAN + CAN-FD, 2 Channels |
| Distance Accuracy | 0.034m | Voltage | 9~36V |
| Distance Resolution | 0.55m | Power | 3W |
| FoV | -69.97~69.33 | Temperature | -40 ~ +85 |
| Angle Accuracy | 0.189 | Anti-Dust/Water | IP69K + IP67 |
| Angle Resolution | 3.93 | Installation | Bracket Mounting |
| Velocity Detection Range | -277km/h ~ +135km/h | Power Supply Model | KL15 or KL30 Compatible |
| Velocity Detection Accuracy | 0.032 m/s | Frequency | 76 GHz ~ 77 GHz |
| Velocity Detection Resolution | 2m/s | Self-Integrated Feature | BSD, LCA, RCTA/B, DOW, RCW, FCTA/B |
| Max. Detection Output | 200/cycle | Connector | Molex |
| Max. Object Output | 40/cycle | Blockage Detection | Supported |
