Tricar Self Adaptive 3D Four Wheel Aligner Active Tracking Measurement Beam Wide Range Lift Support Two Large Screen Monitoring
Tricar Self Adaptive 3D Four Wheel Aligner Active Tracking Measurement Beam Wide Range Lift Support Two Large Screen Monitoring
Tricar Self Adaptive 3D Four Wheel Aligner Active Tracking Measurement Beam Wide Range Lift Support Two Large Screen Monitoring
Tricar Self Adaptive 3D Four Wheel Aligner Active Tracking Measurement Beam Wide Range Lift Support Two Large Screen Monitoring
Tricar Self Adaptive 3D Four Wheel Aligner Active Tracking Measurement Beam Wide Range Lift Support Two Large Screen Monitoring
1 / 5
Tricar Self Adaptive 3D Four Wheel Aligner Active Tracking Measurement Beam Wide Range Lift Support Two Large Screen Monitoring
Tricar Self Adaptive 3D Four Wheel Aligner Active Tracking Measurement Beam Wide Range Lift Support Two Large Screen Monitoring
Tricar Self Adaptive 3D Four Wheel Aligner Active Tracking Measurement Beam Wide Range Lift Support Two Large Screen Monitoring
Tricar Self Adaptive 3D Four Wheel Aligner Active Tracking Measurement Beam Wide Range Lift Support Two Large Screen Monitoring
Tricar Self Adaptive 3D Four Wheel Aligner Active Tracking Measurement Beam Wide Range Lift Support Two Large Screen Monitoring

Tricar Self Adaptive 3D Four Wheel Aligner Active Tracking Measurement Beam Wide Range Lift Support Two Large Screen Monitoring

Send Inquiry

Product Description

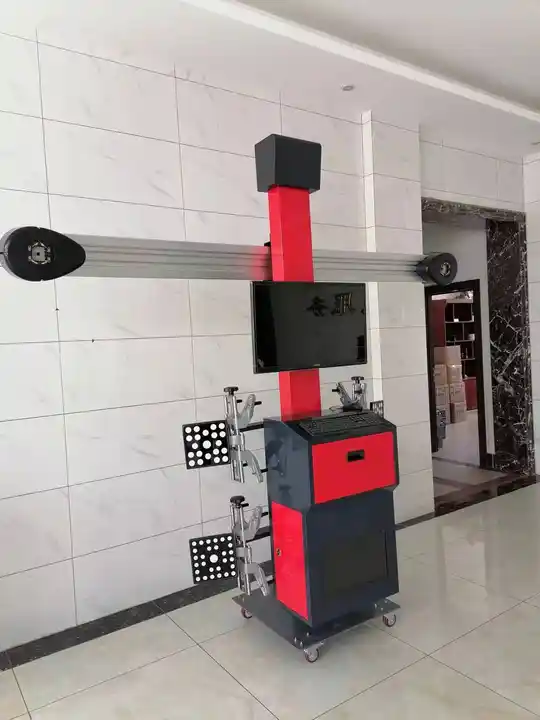

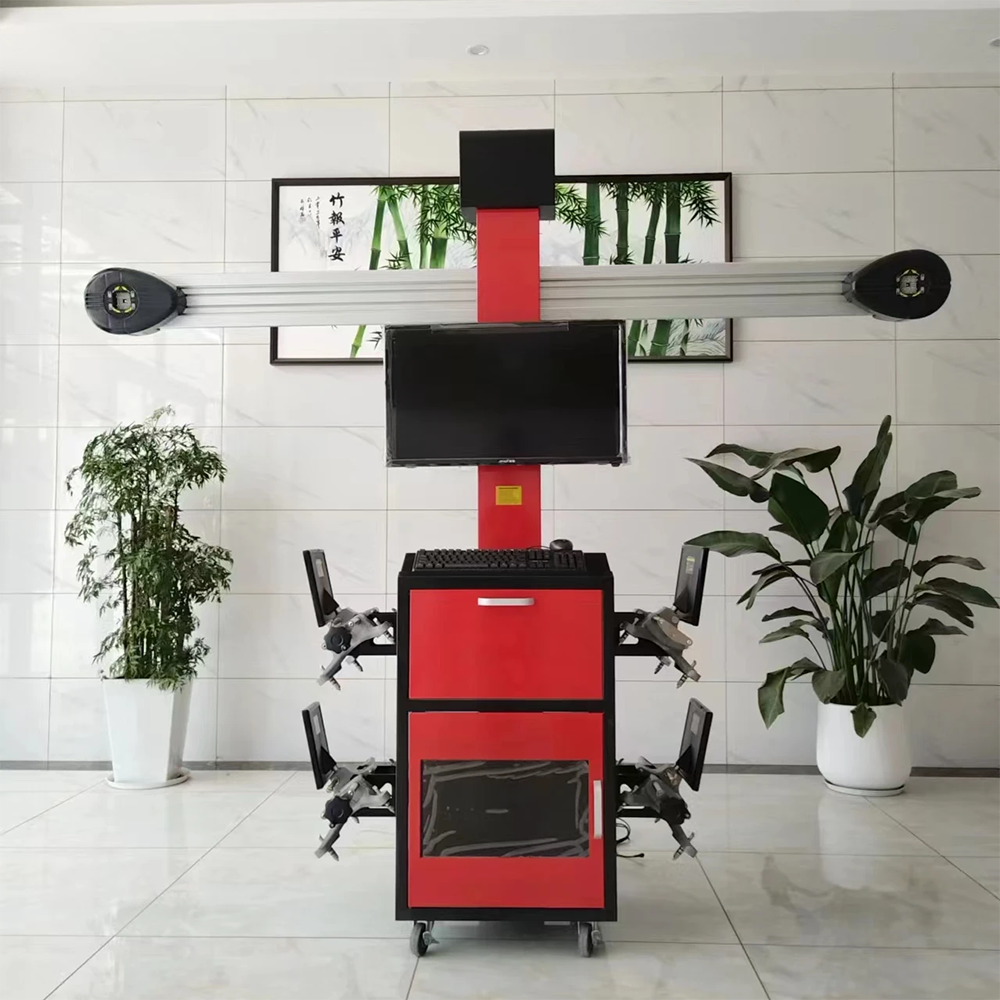

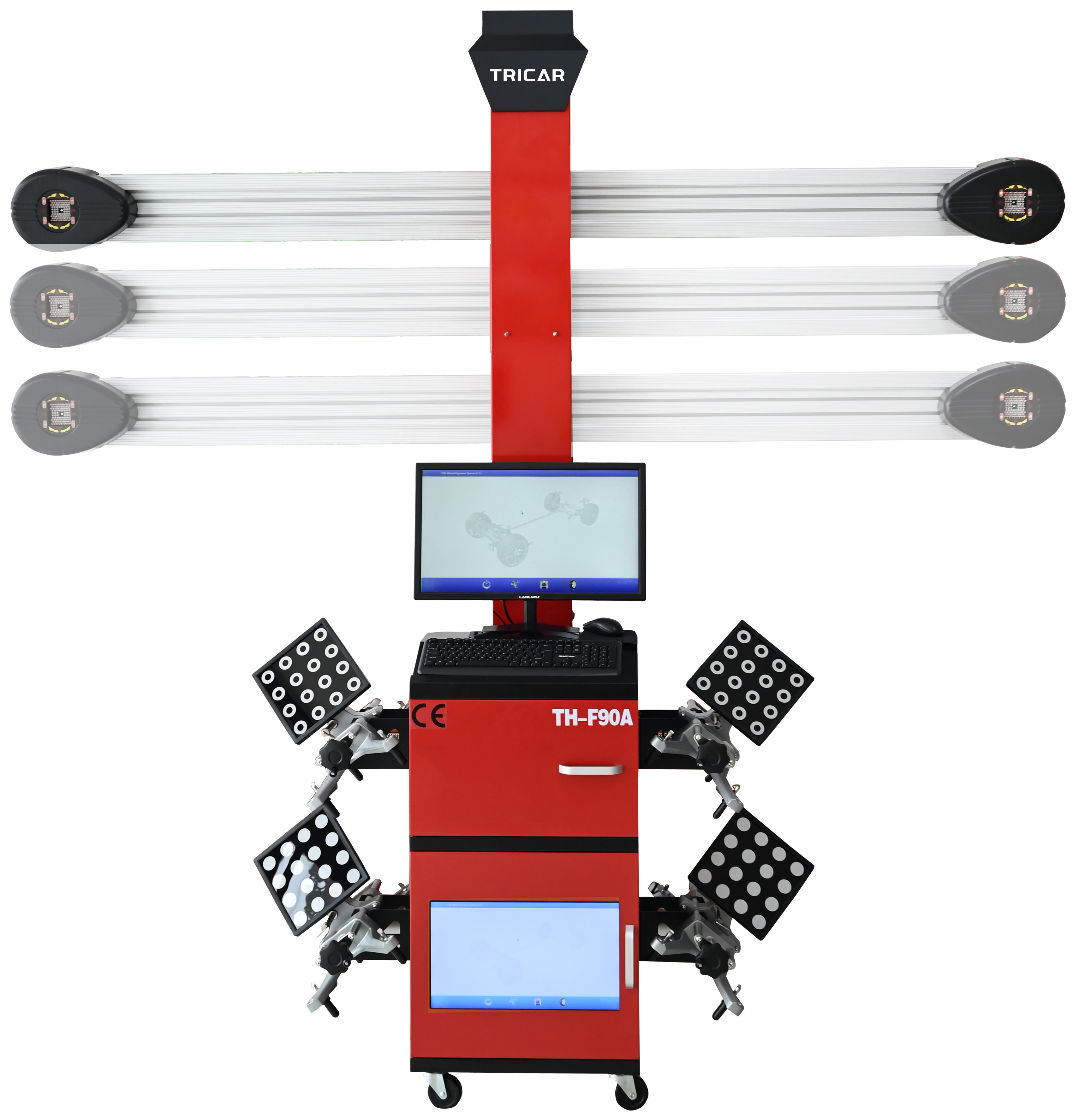

Wheel Alignment System Overview

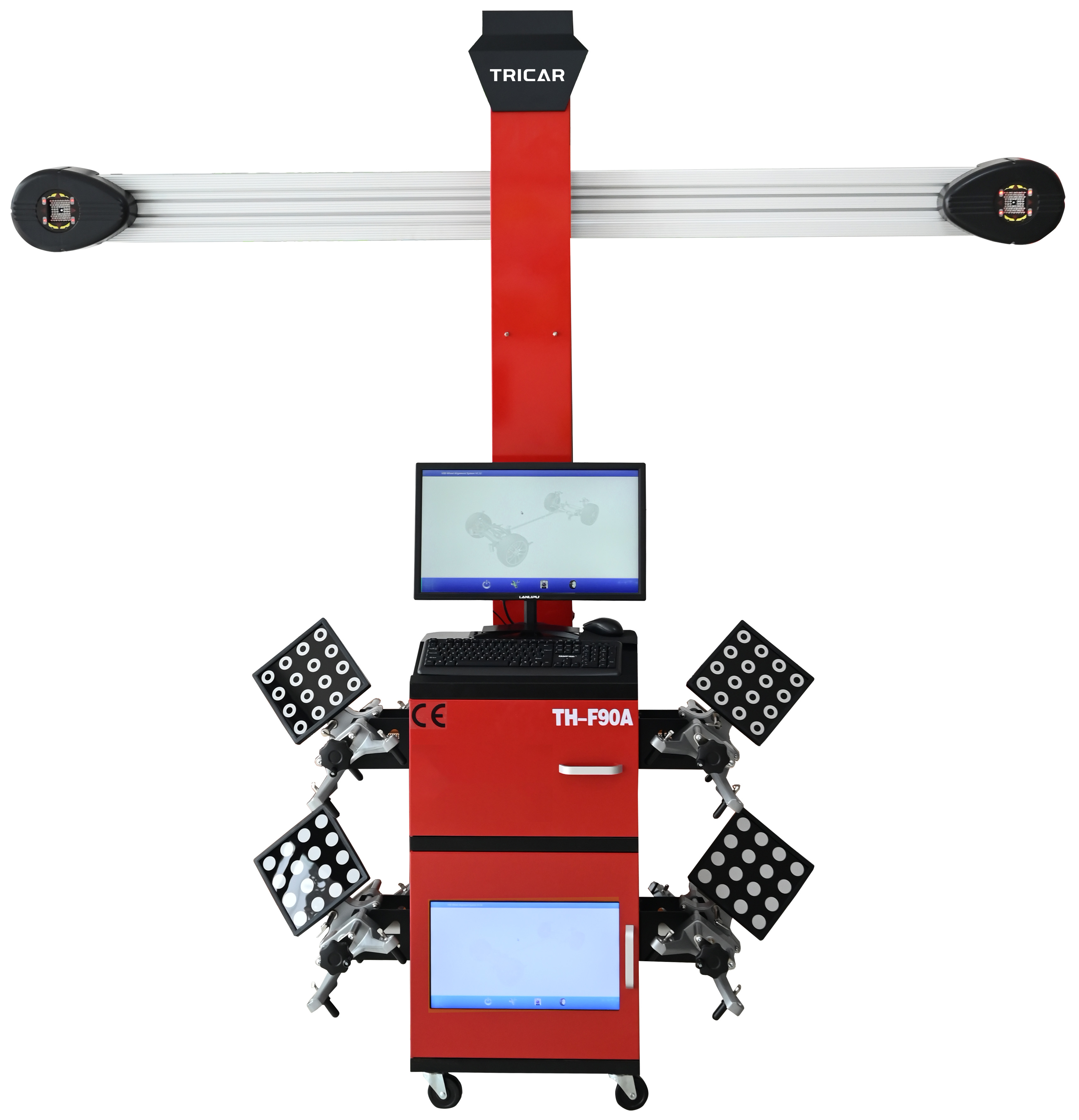

System Setup view 1

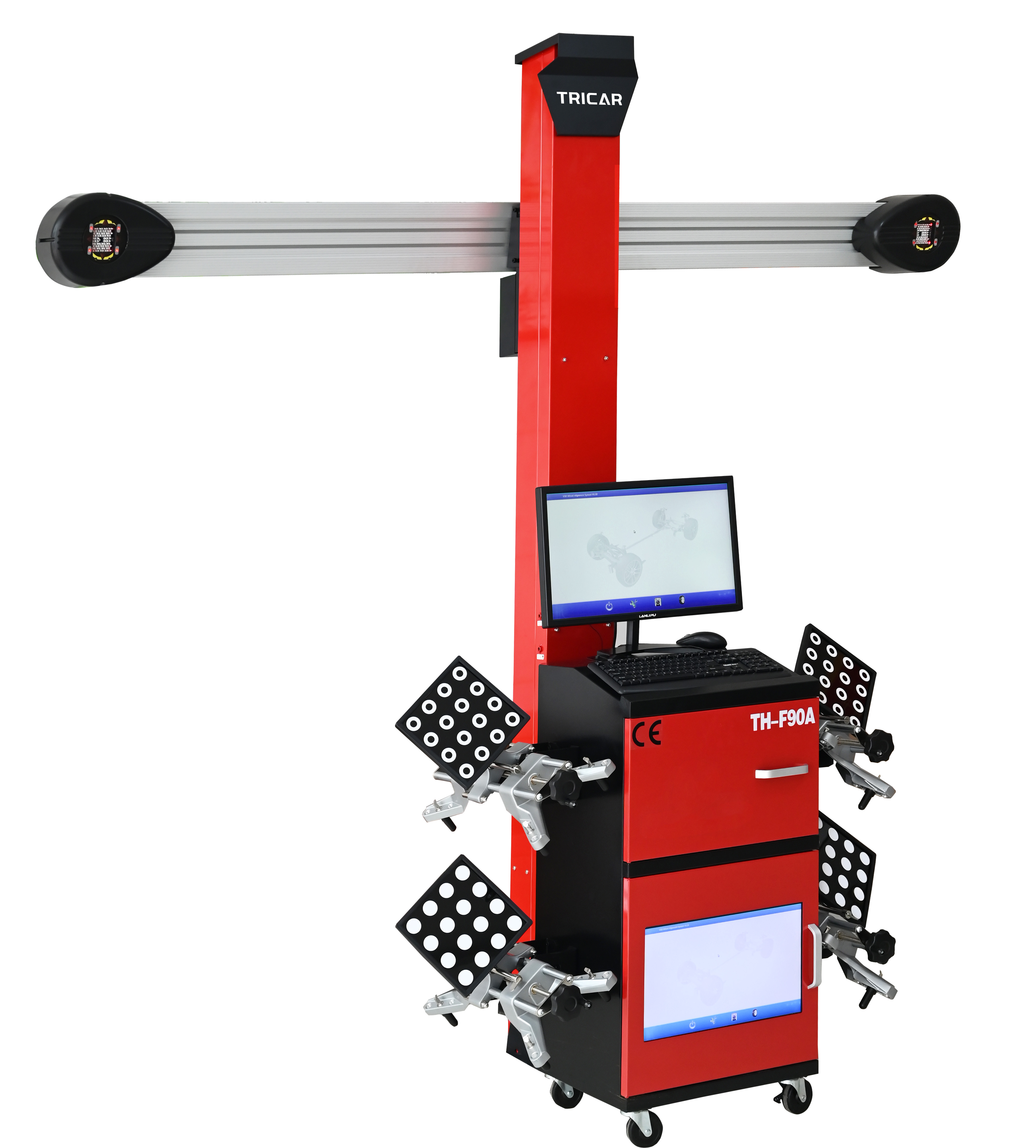

System Setup view 2

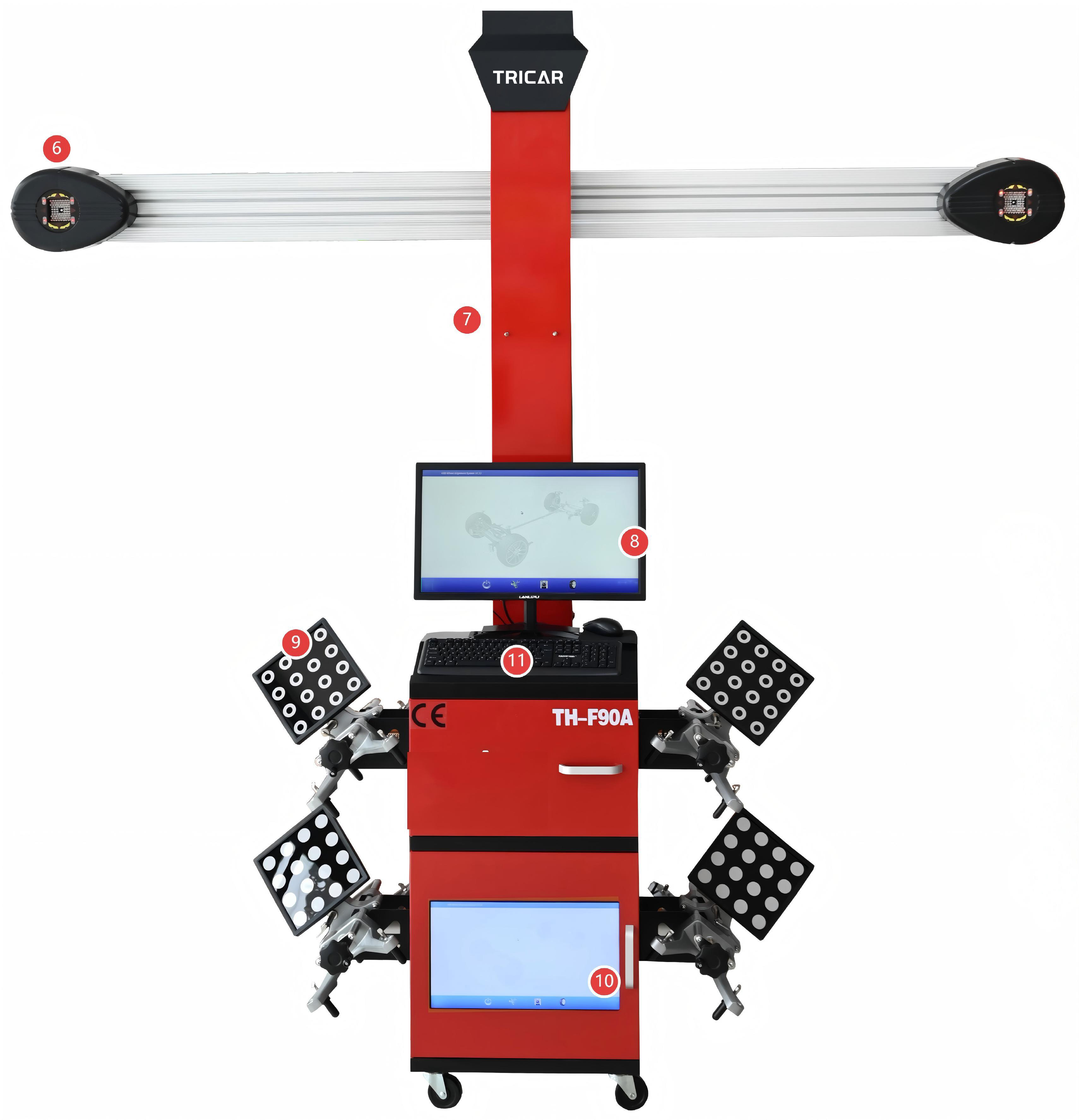

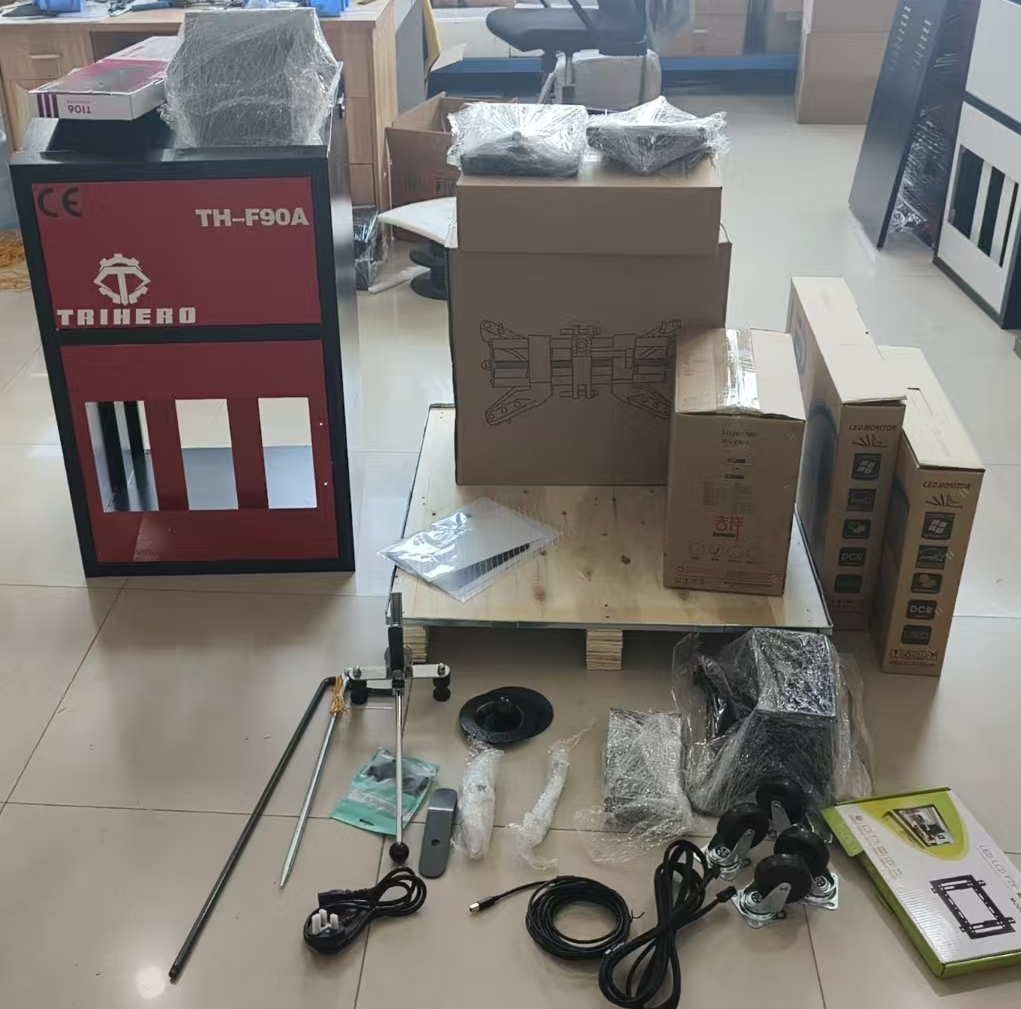

Accessories List

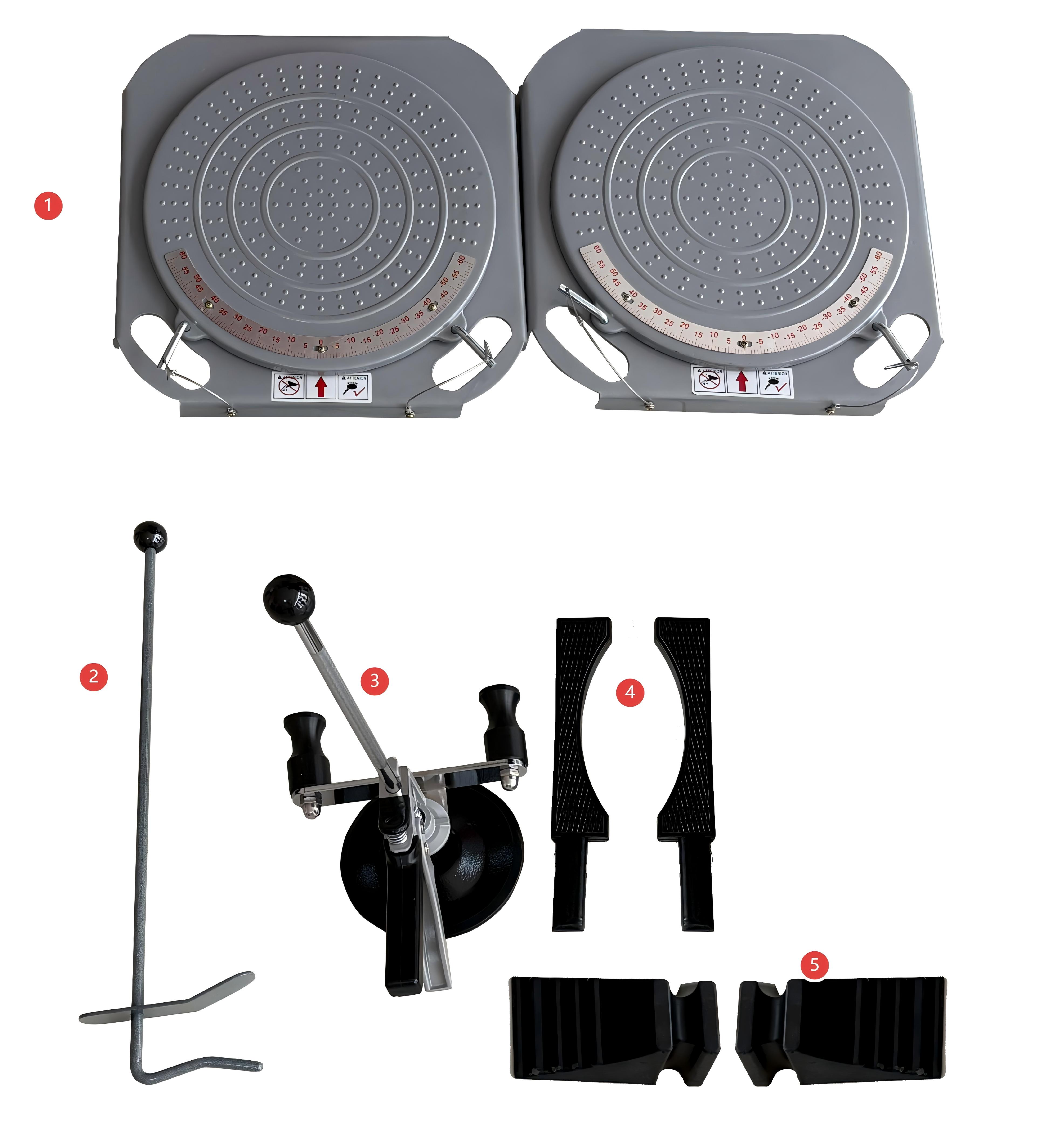

Accessory Component 1
Accessory Component 2
NO Items Quantity
1Turntables & Transitional block1/Set
2Brake holder1 pc
3Steering wheel holder1 pc
4Wedge-shaped pad2 pcs
5Turn Plate2 pcs
65 Mega-pixel SONY Cameras2 pcs
7Support column1 pc
824" LCD Monitor1 pc
9High Precision Patented Target4 pcs
1019" LCD Monitor1 pc
11Computer1 pc
Alignment software function preview

System Functions

BASIC FUNCTIONS
  • Toe-in, Camber, Caster, S.A.I
  • Total Toe, Camber Difference
  • Thrust Angle, Zoom Function, etc.
EXTENDED FUNCTIONS
  • Automatic tracking, Car Body Size
  • Axis Offset, Wheel Offset
  • Wheel Base & Wheel Track
  • Rise Adjusting Function, Steering Adjustment
  • Toe-Out-On-Turns, etc.

Product Specifications

MEASUREMENT ITEMS MEASUREMENT ACCURACY MEASUREMENT RANGE
TOTAL TOE-IN± 0.01 °± 40 °
EXTERNAL BEVEL± 0.01 °± 45 °
CASTER± 0.02 °± 45 °
S.A.I± 0.02 °± 45 °
THRUST ANGLE± 0.01 °± 40 °
SET BACK± 0.01 °± 40 °
MAX STEERING ANGLE± 0.02 °± 50 °
WHEEL TRACK± 2MM850-2438MM
WHEEL BASE± 2MM1100-5000MM

Product Packaging

Package Information
Package Size 1# 2920 * 350 * 370 MM
2# 2920 * 350 * 370 MM
3# 860 * 760 * 1070 MM
Weight & Volume 1.46 CBM, 257kg

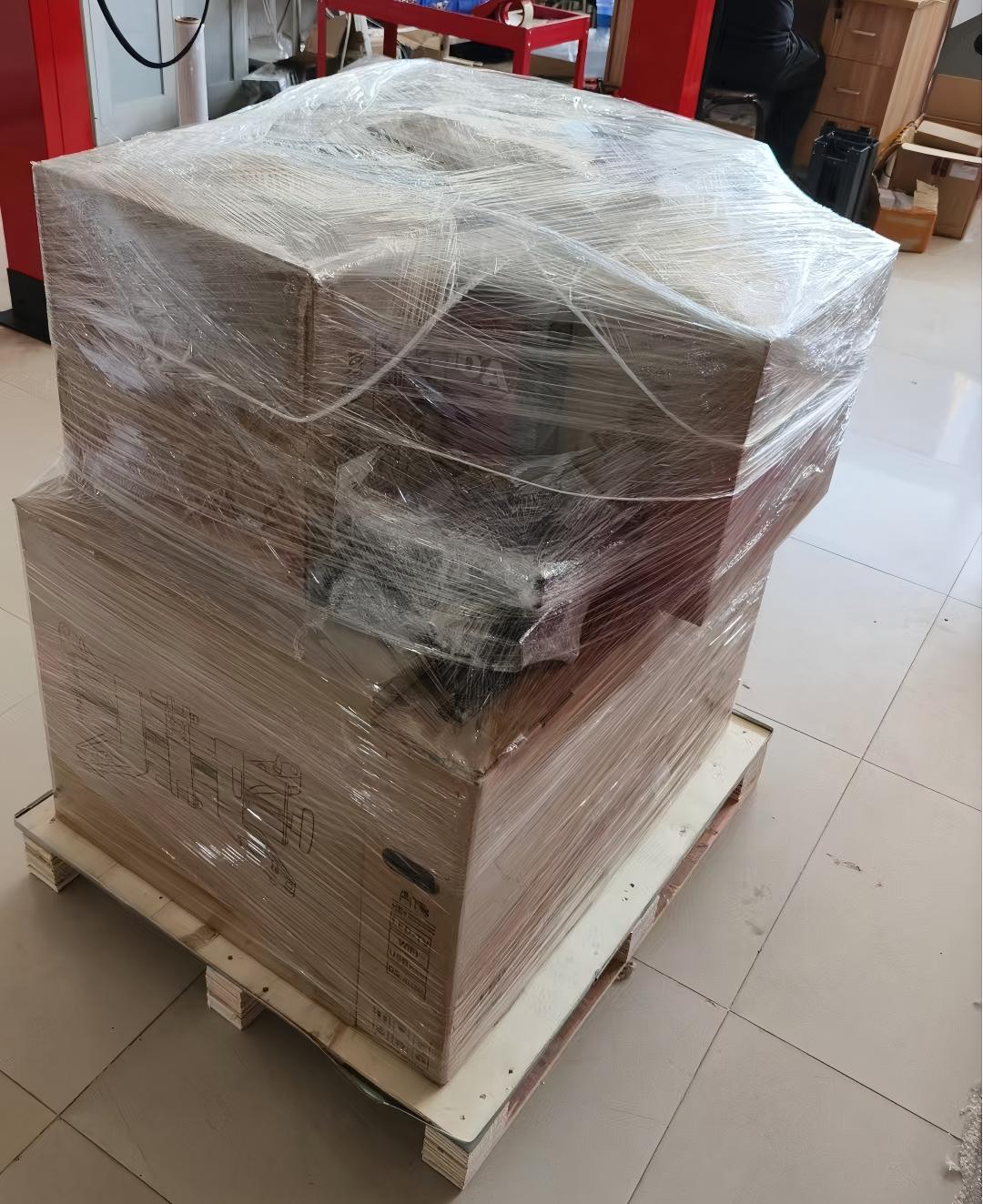

Package Details 1
Package Details 2
Calibration Board Blue
Calibration Board Red

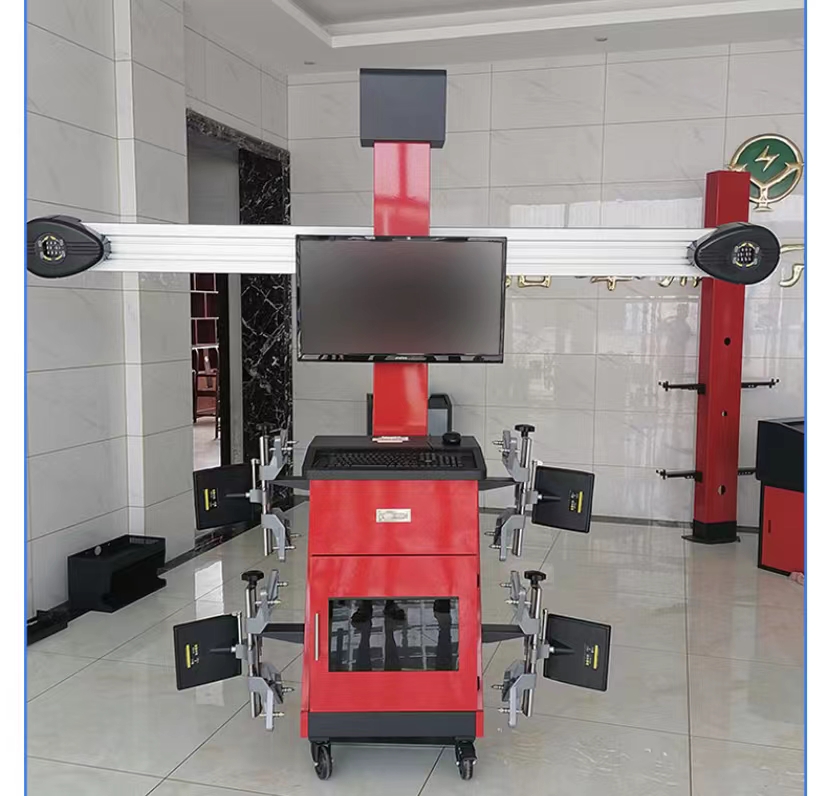

Equipment installation preview

Equipment Showcase & Verification

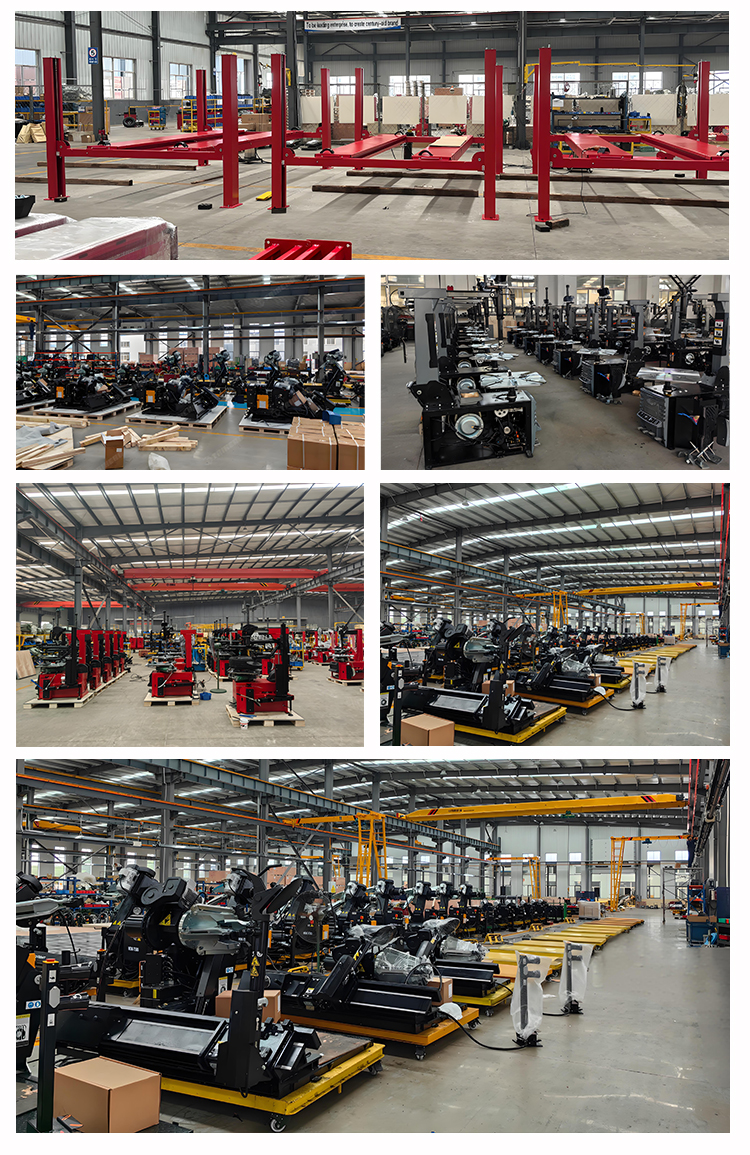

Testing and Calibration Process 1
Testing and Calibration Process 2
Manufacturing testing line 1
Manufacturing testing line 2
Product quality test 1
Product quality test 2
Product quality test 3

Frequently Asked Questions

Q1: What basic functions are covered by this wheel alignment system?
A1: The basic functions include measurement of Toe-in, Camber, Caster, S.A.I, Total Toe, Camber Difference, Thrust Angle, and a Zoom function.
Q2: What extended measurement features does the system offer?
A2: It offers advanced functions such as Automatic Tracking, Car Body Size evaluation, Axis Offset, Wheel Offset, Wheel Base & Wheel Track calculation, Rise Adjusting, Steering Adjustment, and Toe-Out-On-Turns.
Q3: What type of camera and sensor technology does the hardware use?
A3: The system utilizes dual 5 Mega-pixel SONY Cameras combined with high precision patented targets to capture vehicle position accurately.
Q4: What size displays and hardware accessories are included in the package?
A4: The package comes complete with a 24" LCD Monitor, a 19" LCD Monitor, a dedicated computer system, a support column, turn plates, turntables with transitional blocks, a brake holder, a steering wheel holder, and wedge-shaped pads.
Q5: What is the measurement accuracy and range of the alignment tool?
A5: Total Toe-In and External Bevel measurements have an accuracy of ± 0.01° with a range of up to ± 45°. Caster and S.A.I have an accuracy of ± 0.02° within a ± 45° range. Wheel track and wheel base measurements are accurate to within ± 2MM.
Q6: What are the shipping package details for this system?
A6: The entire system is packed into three boxes. Package dimensions are: 1# 2920*350*370MM, 2# 2920*350*370MM, and 3# 860*760*1070MM. The combined weight is 257kg, with a total volume of 1.46 CBM.
