Advanced IP68 LED Panel Lighting Business Super Durable Extreme Environment Protected Installation
Advanced IP68 LED Panel Lighting Business Super Durable Extreme Environment Protected Installation
1 / 2
Advanced IP68 LED Panel Lighting Business Super Durable Extreme Environment Protected Installation
Advanced IP68 LED Panel Lighting Business Super Durable Extreme Environment Protected Installation

Advanced IP68 LED Panel Lighting Business Super Durable Extreme Environment Protected Installation

Send Inquiry

Product Description

Product Overview

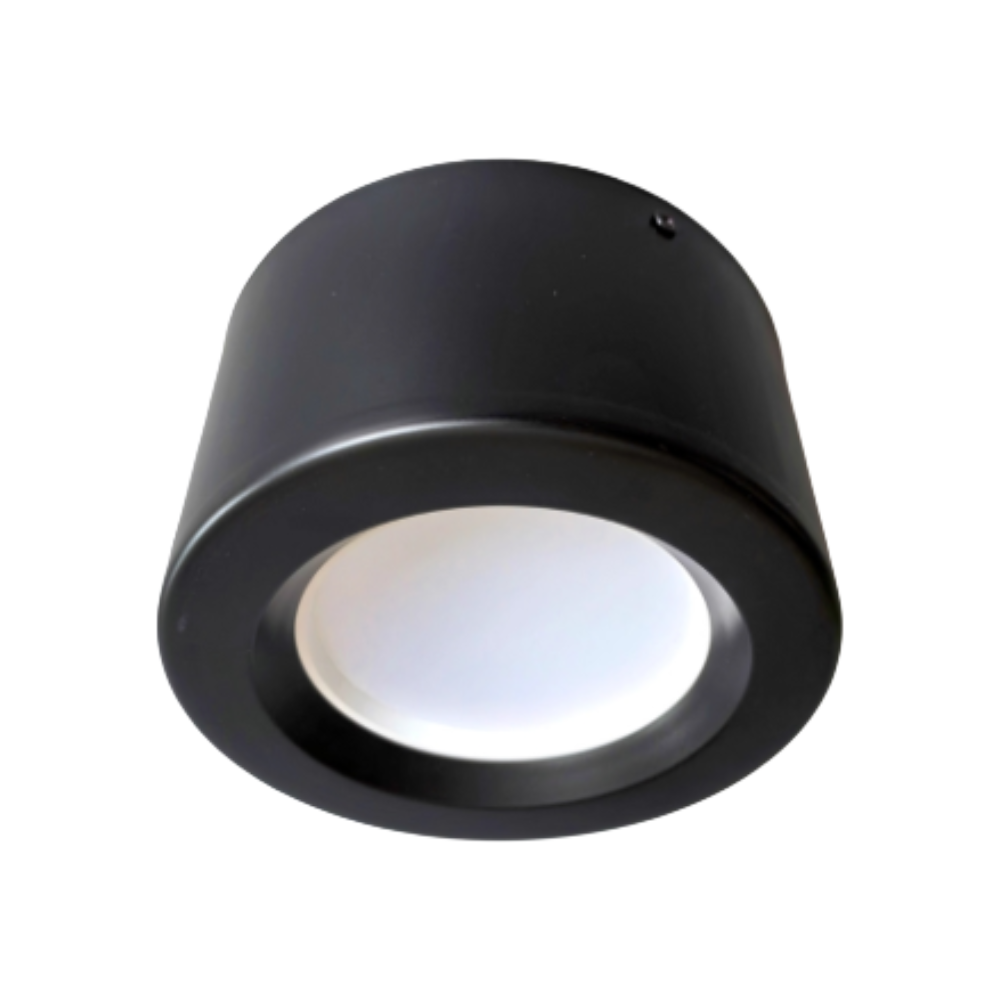

Product Image 1
Product Image 2
Specifications
Parameter Value
Place of Origin Taiwan
Color Temperature(CCT) 3000K ± 300K
Lighting Solutions Service Other
Application Other
Lamp Luminous Efficiency (lm/w) 125
Warranty (Year) 2-Year
Color Black
Input Voltage (V) AC 100~240V
IP Rating IP68
Lamp Luminous Flux (lm) >3750 Lm
Lifespan (Hours) 12000
Light Source Other
Power Source AC
Power Supply AC
LED Type OSRAM LED
Beam Angle 120°
Color Rendering (CRI) >80% (@5700K)
Fixing Method of Lamps
Surface Fixation Hanging Chain Fixed Steel Cable Fixation
Product Features & Details
Product Features Description
  • 10W/16W/30W, Uniform light and high brightness
  • The light source module is embedded and easy to replace
  • The light source module adopts an open waterproof design, with high-tech nano waterproof technology that is resistant to acid, alkali, and salt. The protection level can reach IP68, and it has passed the salt spray test (CNS 8886 RN10), which is suitable for use in seaside environments and hot spring areas.
  • Lamp circuit protection mechanism: OVP/OCP/OTP
  • Photobiological hazard: IEC62471 No hazard level
  • Light source module passed the Energy Saving Label of the Bureau of Standards, Metrology and Inspection, Ministry of Economic Affairs
Product Application
  • Outdoor passages (rain shelters), balconies, saunas, SPA halls, swimming pools, coastal environments, hot spring areas, and areas with high acid, alkali, and salt erosion.
Lamp Material Description

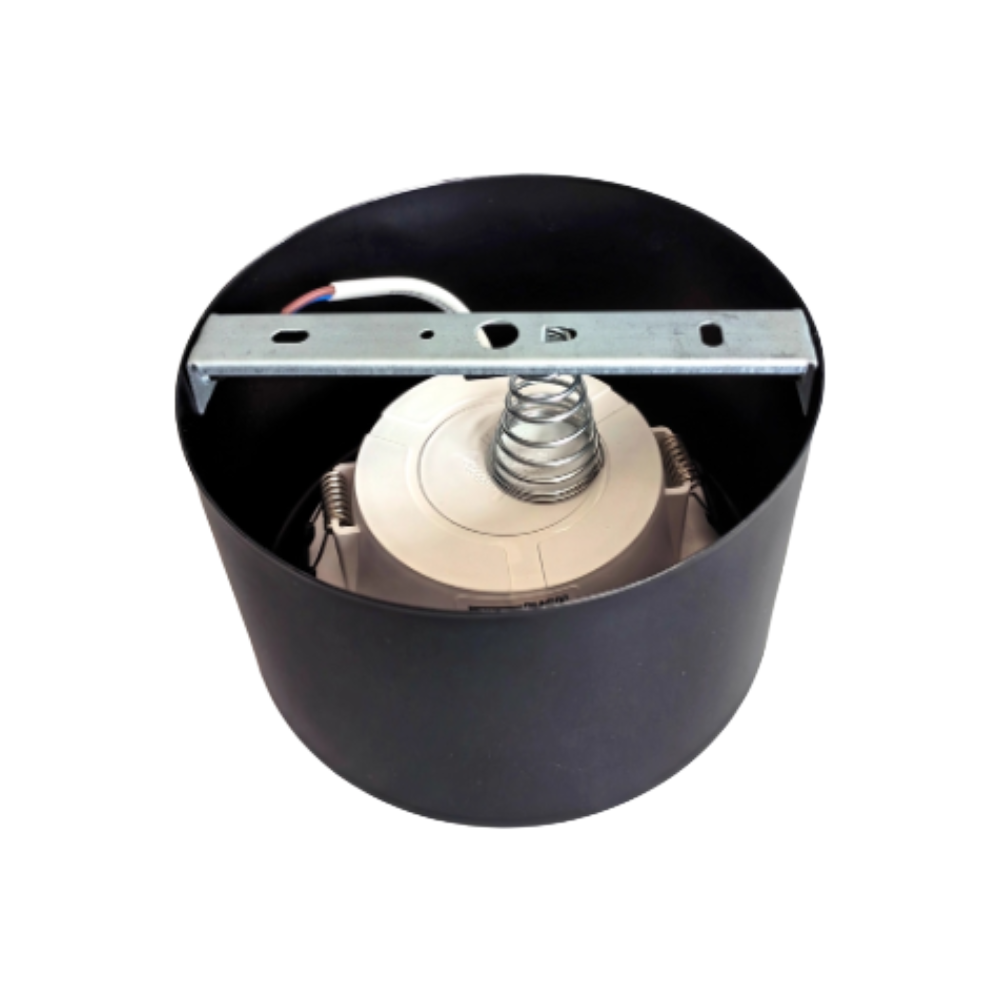

  • Ceiling downlight body: IRON (VBOX-F)
  • Light source module body: 10W/30W Aluminum alloy die casting; 16W Heat-resistant and impact-resistant engineering plastic
  • Light source module lampshade: PC
Product Notes & Announcements
  • This equipment is only for professional installation. Non-professional personnel shall not remove or install the equipment.
  • Please read the instruction manual before installation and keep it for future reference.
  • To avoid damage, falling, electric shock or fire, please do not modify the lamp or replace accessories without confirming with the supplier.
  • For maintenance, installation, and replacement of the lamps, please confirm to cut off the power supply, and make sure the lamps have cooled down. Please ensure the lamps are properly installed before turning the power on.
  • Ensure accurate and reliable connection.
  • Ensure that the product around the vent, the lamp cannot violate any fire prevention regulations when using.
Product Dimensions & Details
Product Specification Dimensions
Product Technical Blueprint

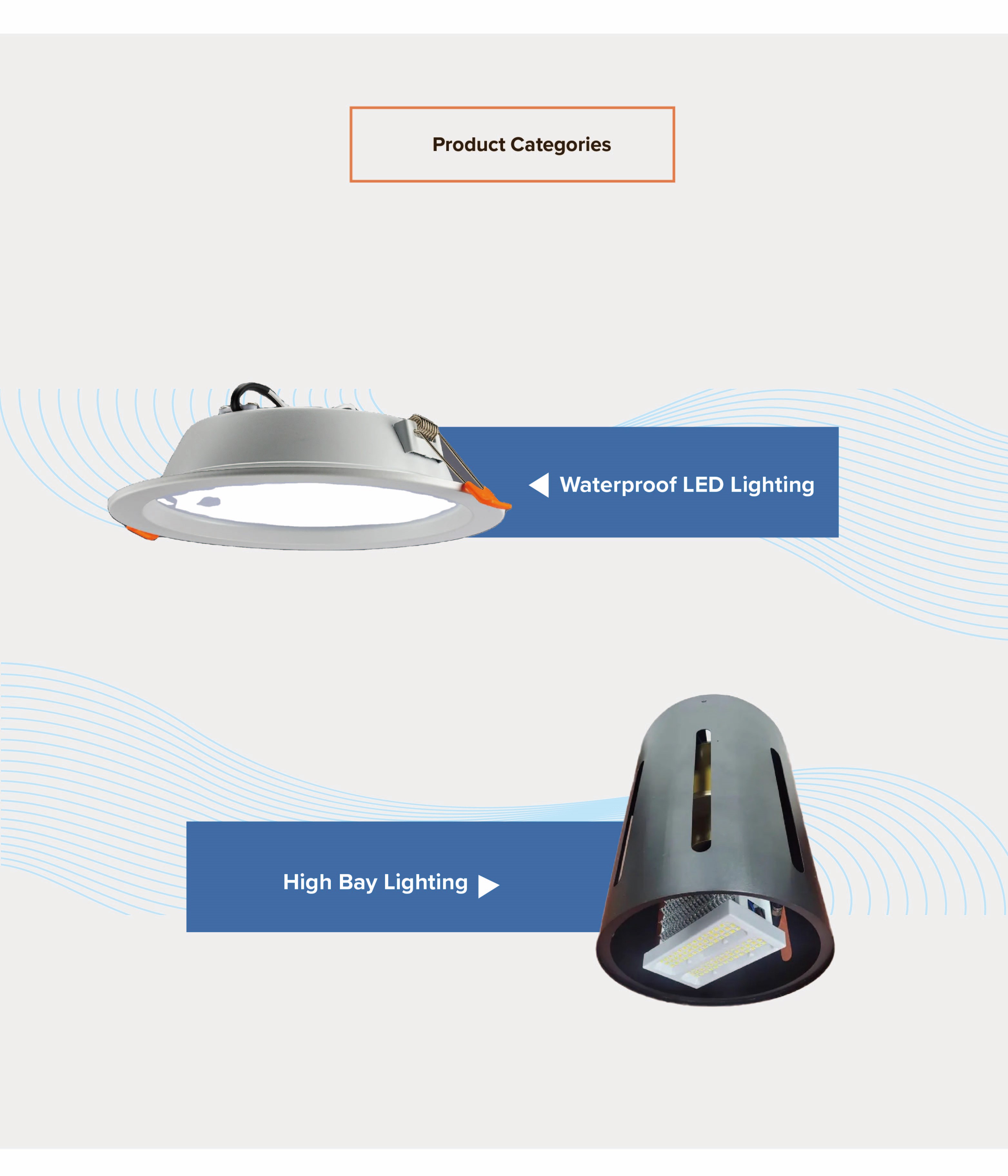

Product Application Display
Gallery
Gallery Image 1
Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
Gallery Image 6
Gallery Image 7
Frequently Asked Questions
Q1: What makes the light source module highly waterproof?
The light source module uses an open design with advanced nano-waterproof technology that resists acid, alkali, and salt. It has achieved an IP68 protection rating and passed the rigorous salt spray test (CNS 8886 RN10).
Q2: Where is this lighting system recommended to be installed?
It is ideal for outdoor passages (rain shelters), balconies, saunas, SPA halls, swimming pools, coastal environments, hot spring areas, and any environment subjected to high levels of acid, alkali, or salt corrosion.
Q3: What methods can be used to fix and mount the lamps?
The supported fixing methods include Surface Fixation, Hanging Chain Fixed, and Steel Cable Fixation, giving you flexible options during installation.
Q4: What are the input voltage and lighting output parameters?
It runs on an input voltage of AC 100~240V. The system offers a high luminous flux of >3750 Lm with a luminous efficiency of 125 lm/W, providing consistent and bright illumination.
Q5: What safety circuit protections are embedded within the product?
The lamp features comprehensive circuit protections, including Over Voltage Protection (OVP), Over Current Protection (OCP), and Over Temperature Protection (OTP). Additionally, it meets the IEC62471 standard for no photobiological hazard.
Q6: What materials are used to construct the different modules?
The ceiling downlight body is built with IRON (VBOX-F). The light source modules are made of aluminum alloy die casting for 10W and 30W versions, and impact-resistant engineering plastic for the 16W version, all topped with a PC lampshade.
