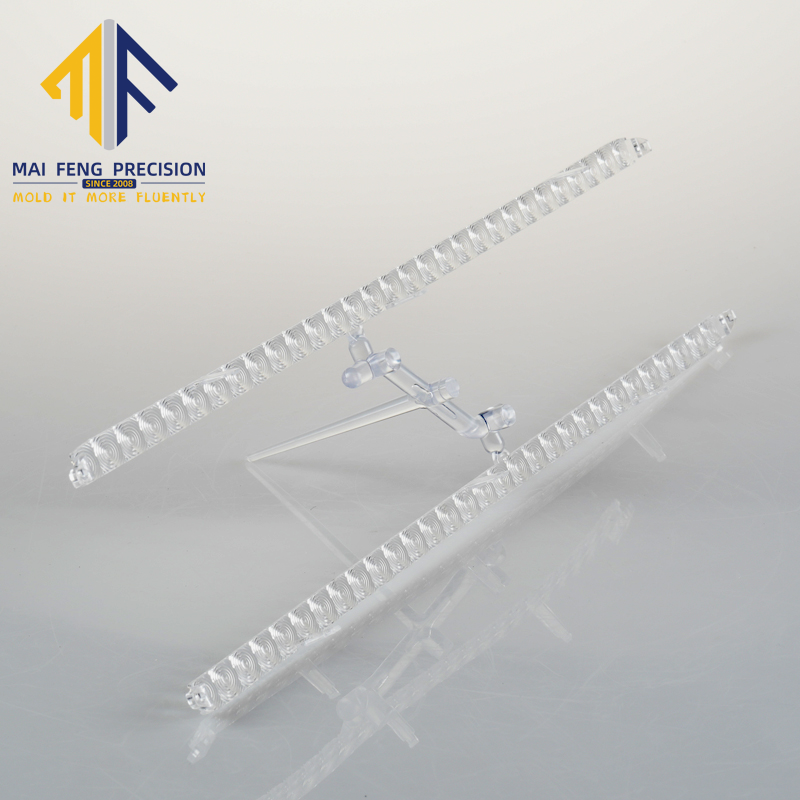

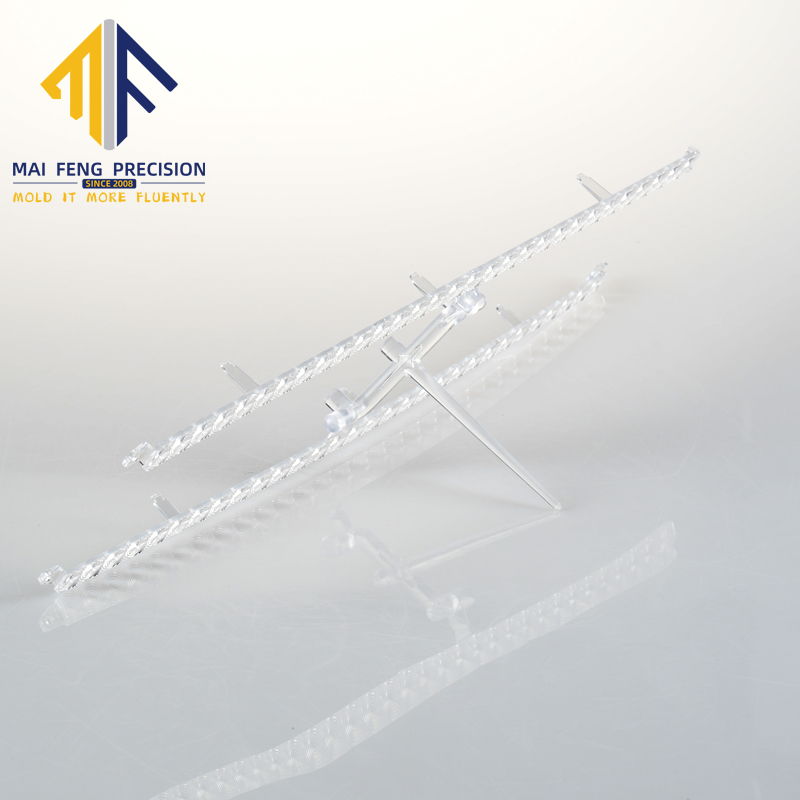

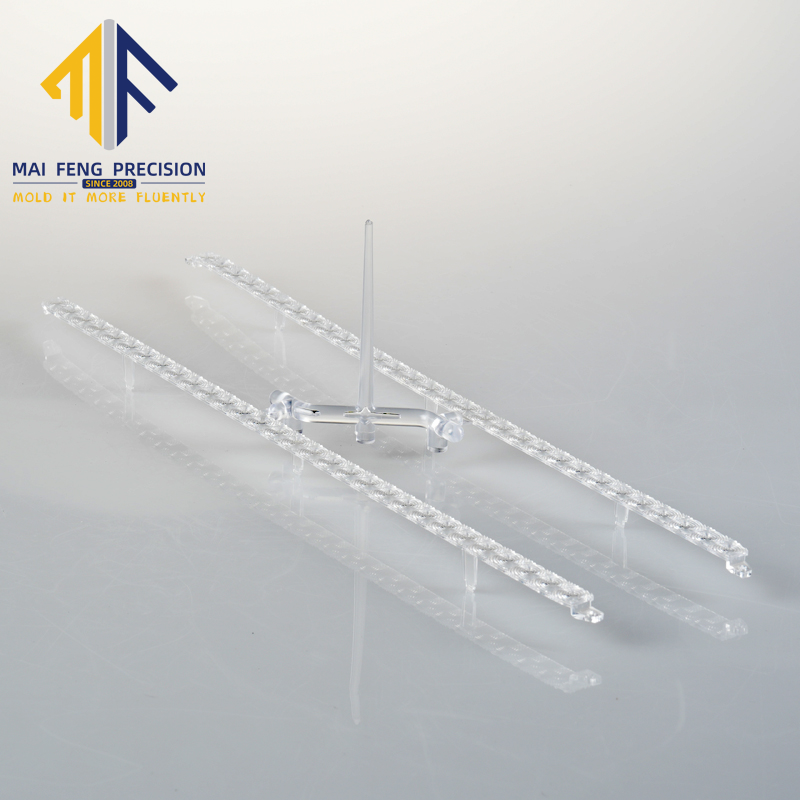

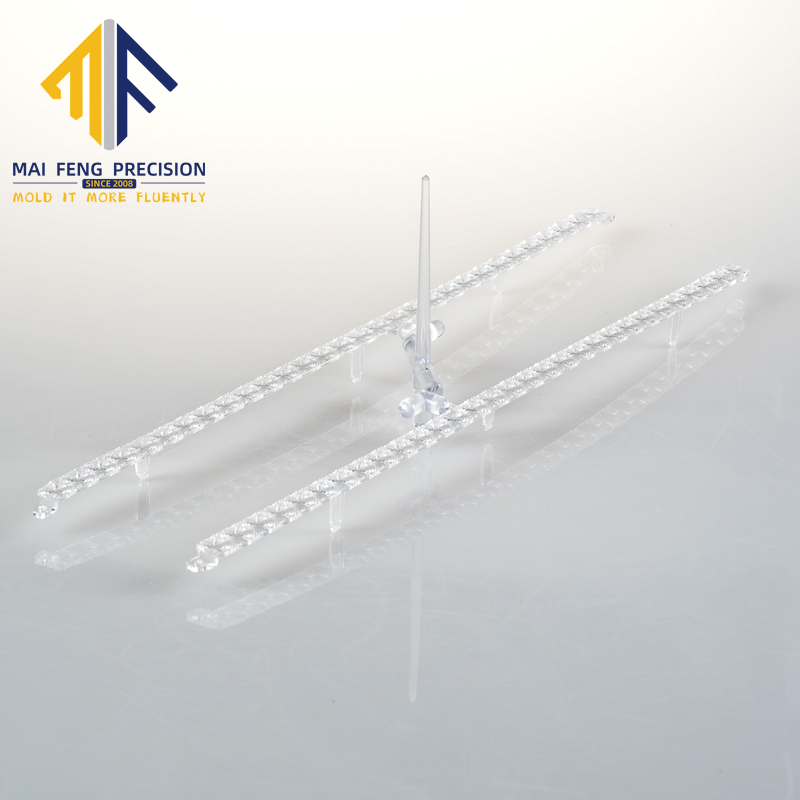

Auto Ambient Lighting LED Backlight Module Kit High Precision Injection Mold Automotive Applications OEM/ODM Customized MIF

1 / 5

Auto Ambient Lighting LED Backlight Module Kit High Precision Injection Mold Automotive Applications OEM/ODM Customized MIF

Send Inquiry

Product Description

Professional Plastic Injection Mold Factory & China Mould Manufacturer

Start from part design analysis.
Mold design drawing and DFM report available so you can see how the mold is going to be before mold making.
If the product is complex, a moldflow report will be presented as well.
In-house mold making shop ensures your mold quality is under well control.
Normally it takes 20-40 days to make the mold; precise time depends on the part design.
Injection molded parts can be different materials such as ABS/PC/PP/HDPE/POM/PA6/PA6+GF/PVC/NYLON/PMMA/PET, etc.
Our mold factory can also provide different surface treatments for injection molded parts.
Commonly used surface treatments for injection molded parts include: Texture/Sandy/MT/YS/SPI/EDM finish/smooth/glossy/VDI.
Besides making injection molded parts, we also provide printing, welding, assembly, and packing services.

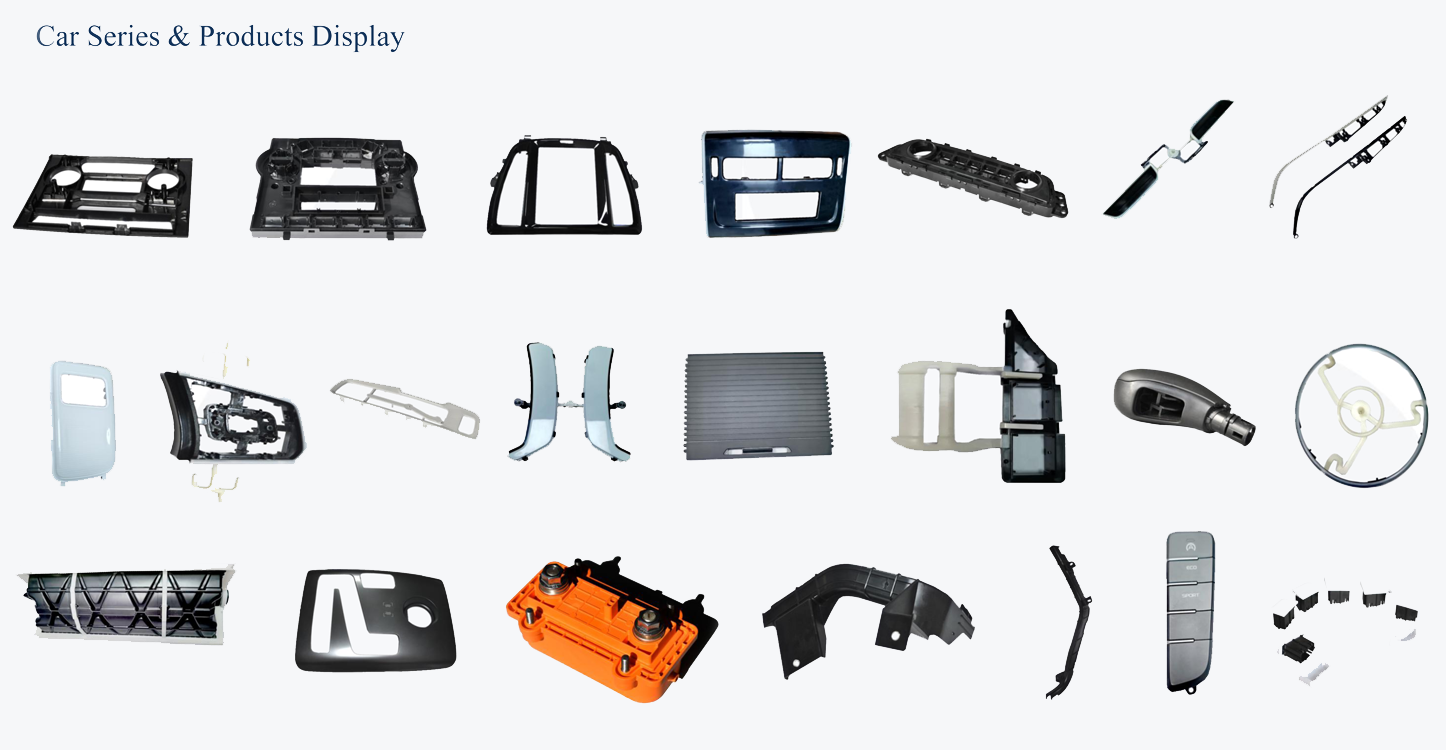

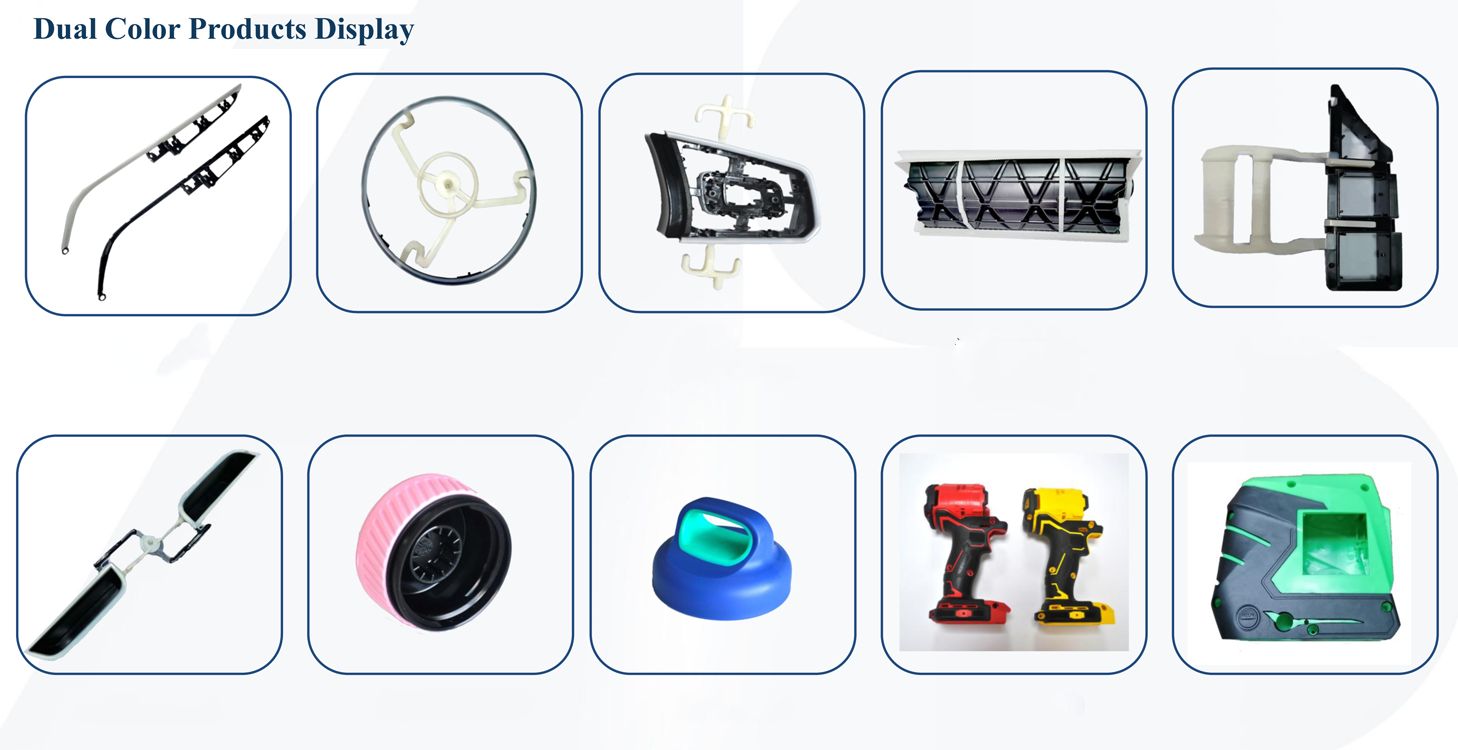

Successful Projects

Technical Cases & Parameters

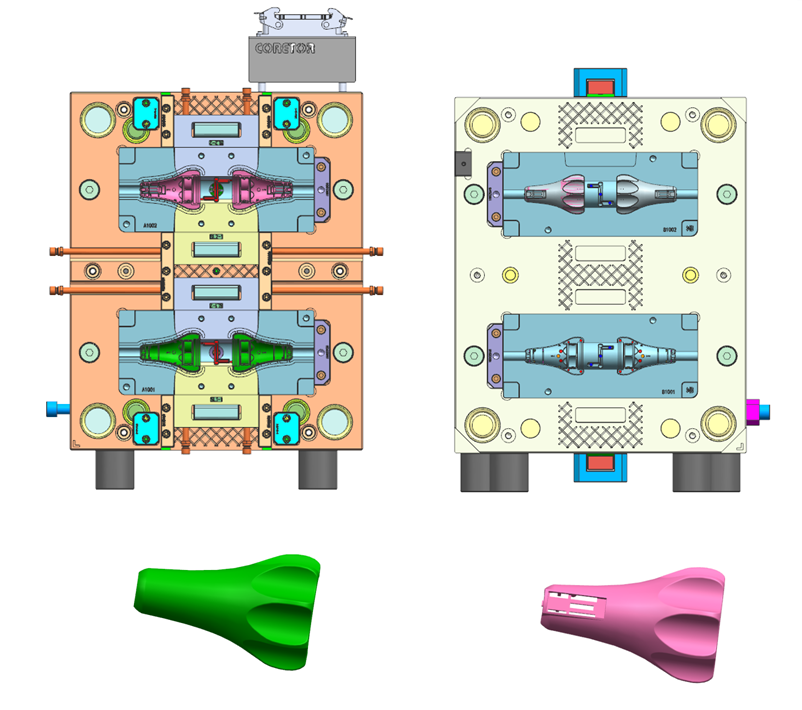

Technical Parameters

Cavity: 2+2
Automated production, C/T 48S
Two point hot runner turning gate
Free flash
Use machine: Yizumi 160T

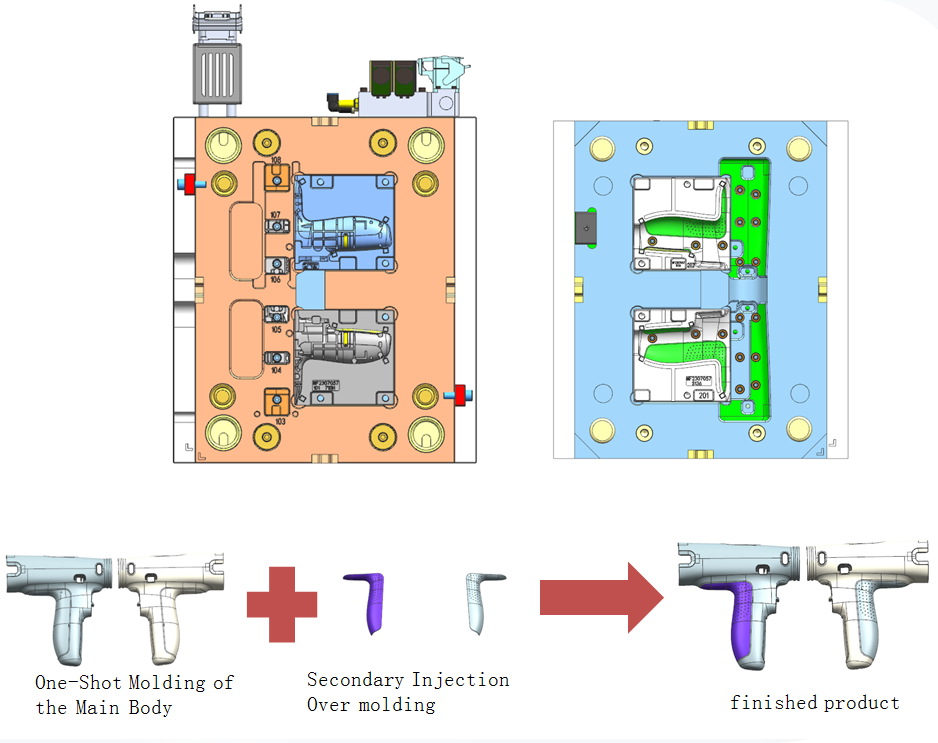

Technical Parameters

Cavity: 1+1
Automated production, C/T 50S
Two point hot runner
Free flash
Use machine: Yizumi 120T

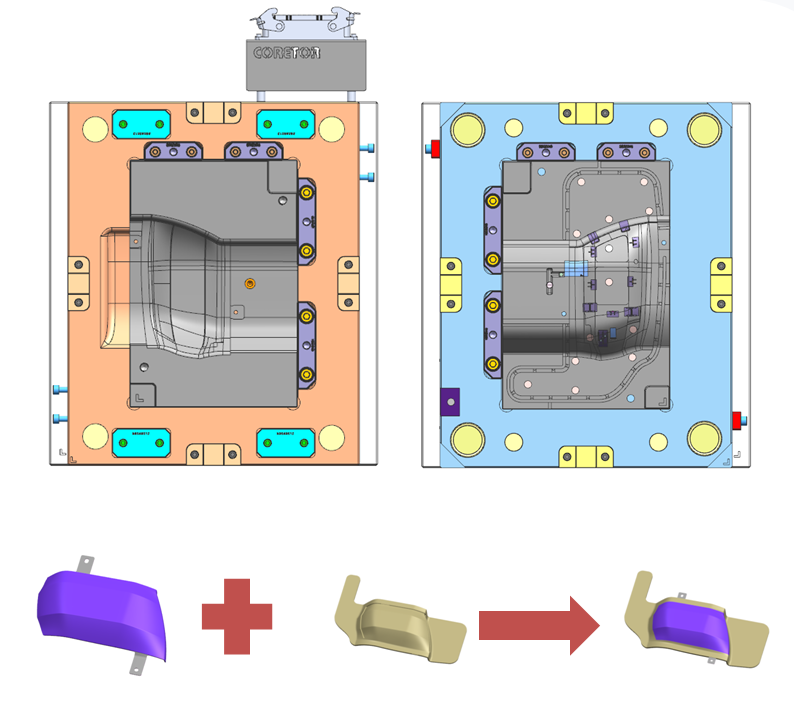

Technical Parameters

Cavity: 1
Automated production, C/T 50S
One point open hot runner inclined top submerged pouring
Free flash
Use machine: Yizhi 90T

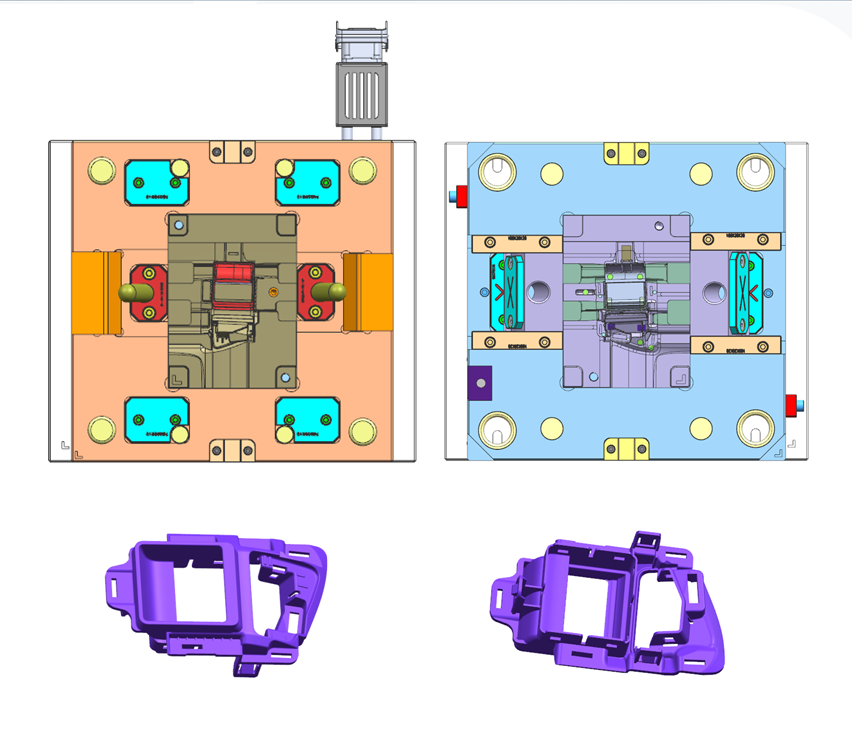

Technical Parameters

Cavity: 1
Automated production, C/T 35S
One point open hot runner rotary gate
Free flash
Use machine: Haitian 130T

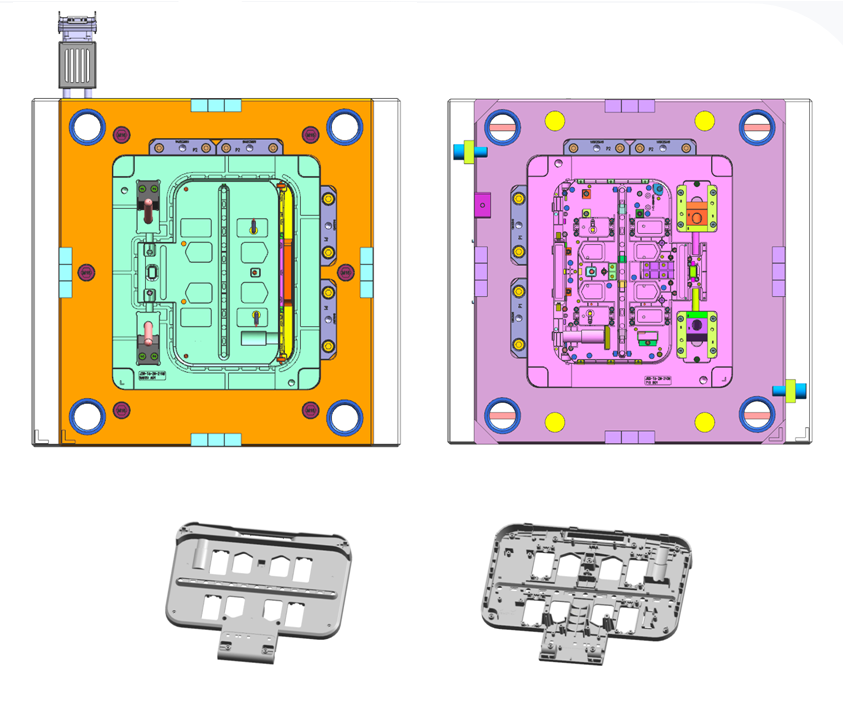

Technical Parameters

Cavity: 1
Automated production: C/T 50S
Two point open hot runner to two point submerged gate + one point tip hot runner
Free flash
Use machine: Yizumi 300T

Key Features & Performance

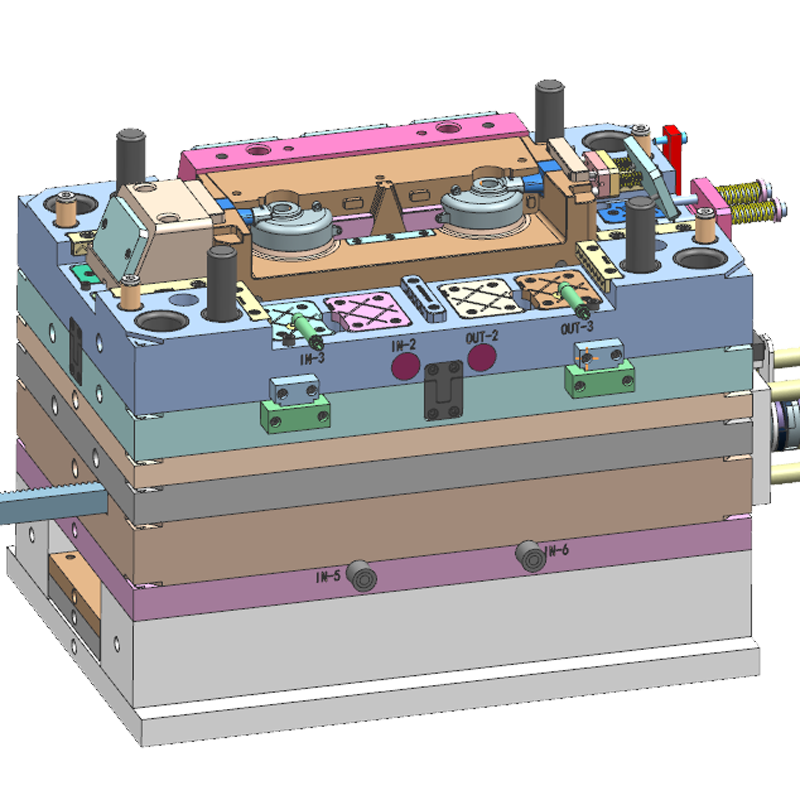

Fully automatic

Fully automated production, saving labor costs.

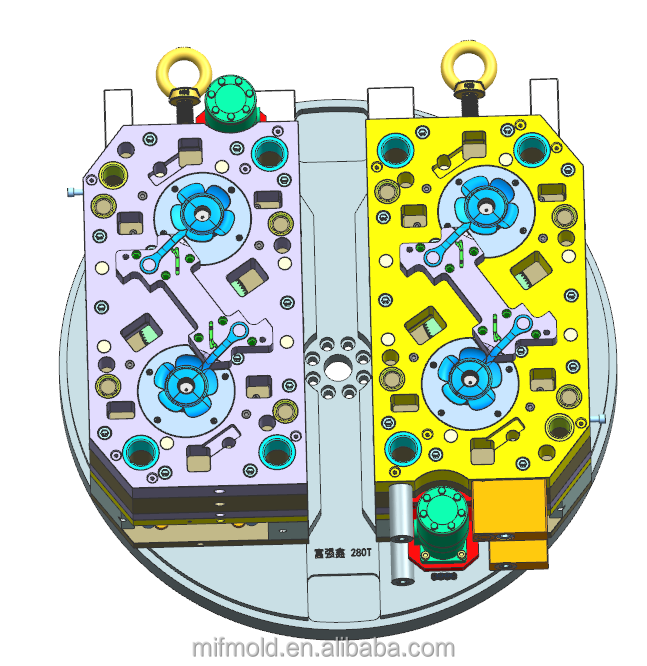

Good material quality

Highly polished and corrosion-resistant mold steels such as 1.2083 and S136.

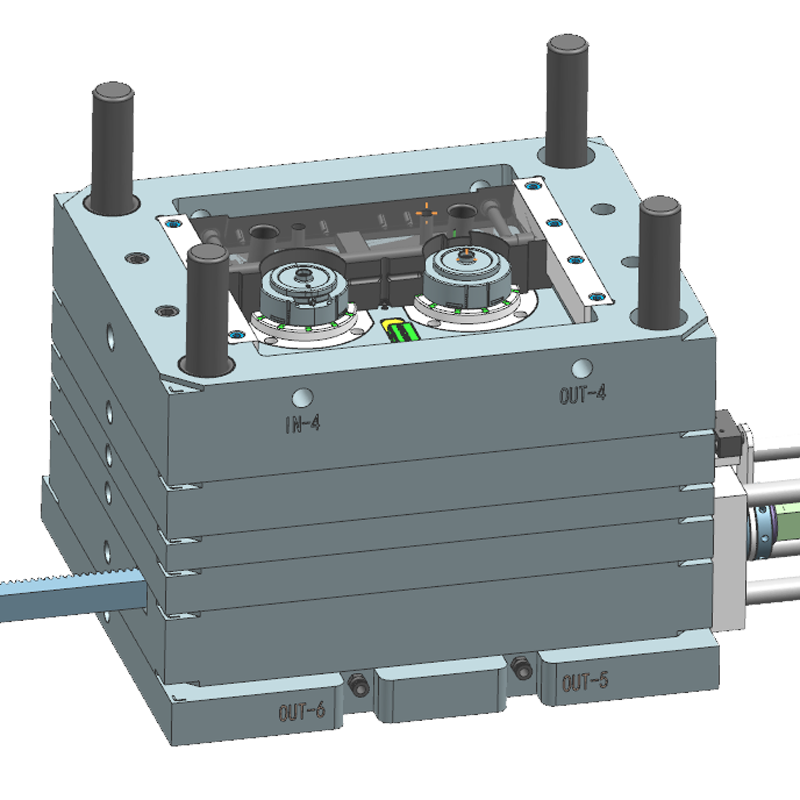

Longevity

Customized lifespan of 1-5 million cycles.

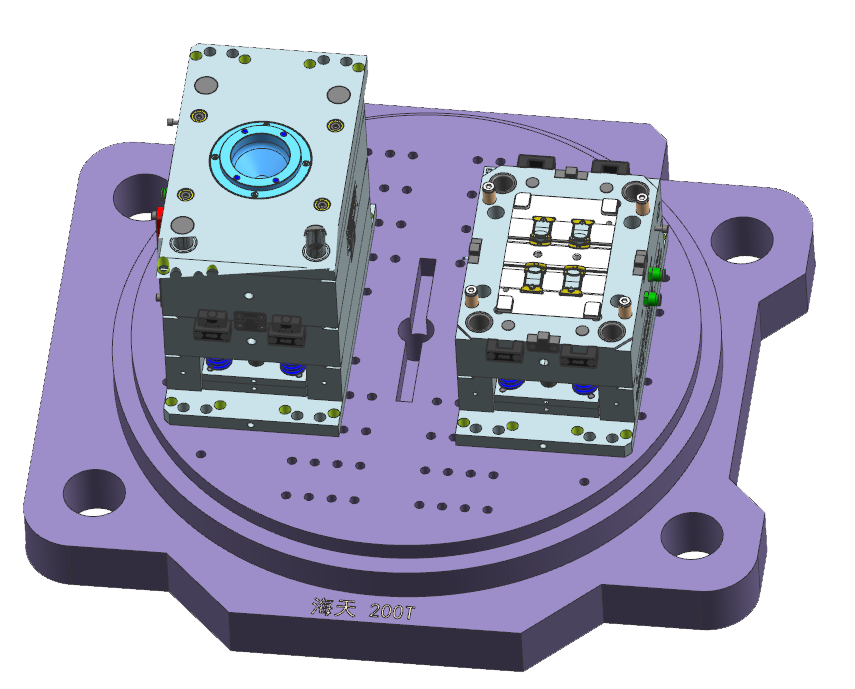

Short cycle

Short molding cycle and high yield rate.

Precision & Surface Quality

Reasonably concealed gate location:
Designed to be inconspicuous or hidden in a way that does not affect the appearance or function of the final product.
Texture:
Multiple texturing processes available (surface treatment for mold surfaces to create a specific pattern or texture), with even and fine texture patterns.
Parting line:
The visible but not touchable parting line on the exterior, near-zero parting line on the rotating insert, and clear color division boundary without burrs.
Appearance:
Resolve issues such as air traps, flow marks, stress marks, etc.

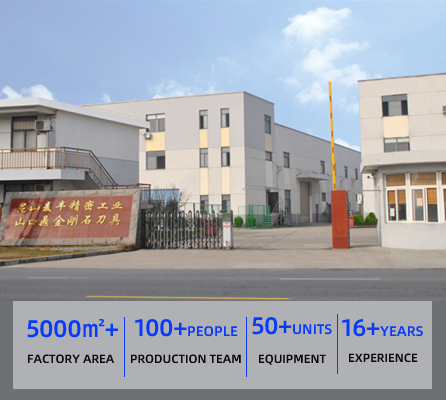

Factory Capabilities

Our independent factory spans over 5,000 ㎡ and houses 25 single and dual-color injection molding machines with capacities ranging from 90-700 tons. With over 50 units of mold processing equipment and a professional service management and production team of over 100 people, we specialize in product design, mold manufacturing, injection molding, and product assembly for various plastic parts. Established in 2008, our mature and experienced team provides customized and differentiated services for small and medium-sized customers globally.

1. Product Design: We can conduct product structure design and optimization based on the provided drawings and samples.
2. Mold Design: Select an appropriate mold design scheme based on customer requirements.
3. Mold Manufacturing: One-stop processing including machining, polishing, assembly, and other processes for mold parts.
4. Injection Molding: Single/double-color injection molding machines to meet customer order requirements.
5. Product Assembly: Comprehensive assembly services for completed plastic parts.

Production Team

Service Team

Design Team

Certifications

Our Advantages

Design

3 senior process engineers.
6 mold design engineers.
An average of 20 years of industry experience.

Mold Manufacturing

18 mechanical processing engineers.
2 Japanese Makino mirror EDM machines.
4 German OPS 5-axis high-speed machining centers.

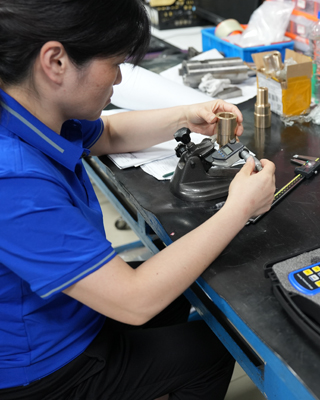

Quality-Inspection

5 quality control engineers.
Hexagon three-dimensional inspection equipment from the United States.
Precision 2.5D inspection equipment.

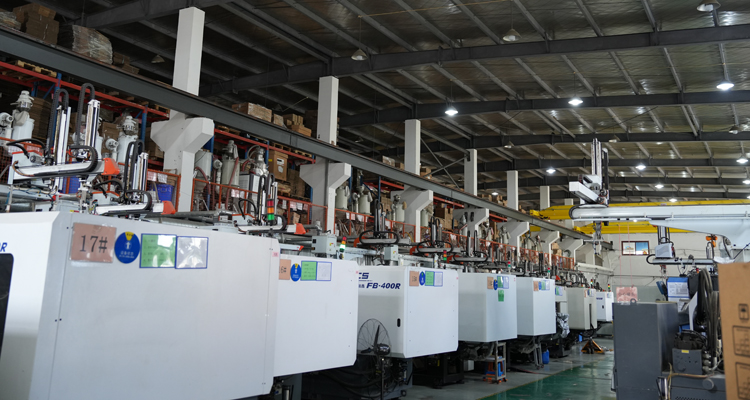

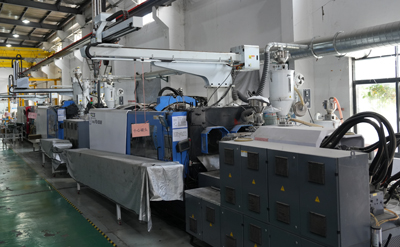

Production Workshop & Equipment

Mold Processing Equipment List

Equipment Brand	Device Model	Origin	Operating Range (mm)	Quantity
OPS 5-Axis High-Speed CNC	OPS550	Germany	550400400	2
OPS 5-Axis High-Speed CNC	OPS750	Germany	1100750500	2
Makino EDM	EDGE2i	Japan	300x250x250	1
Makino EDM	EDGE3i	Japan	450x300x320	1
EDM	S550	Taiwan, China	500x400x300	1
EDM	DE-45	Taiwan, China	450x350x300	2
NC	MV-1380B	Taiwan, China	1300x800x800	1
NC	MV-850B	Taiwan, China	900x500x500	1
NC	VM900	Taiwan, China	900500400	1
High-speed Precision Engraving Machine	JTGK-600iplus2	Taiwan, China	465600300	1
High-speed Precision Engraving Machine	SD-543	Taiwan, China	500x400x300	1
Slow Traveling Wire EDM	HP-500	Taiwan, China	500x300x265	1
Slow Traveling Wire EDM	G32S	Taiwan, China	400x250x215	1
Piercing Machine	DB-703	China	300x250x300	1
Grinding Machine	BSG-818M	Taiwan, China	470x180x410	3
Turret Milling Machine	KN-4S	Taiwan, China	820x420x500	2
Lathe	CH430-800	China	470x180x410	1

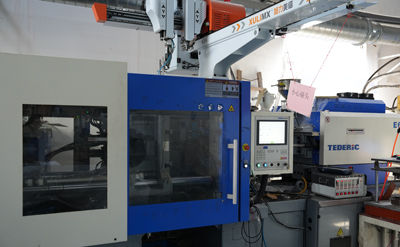

Injection Molding Machine List

Equipment Brand	Machine Tonnage (T)	Forming Method	Horizontal / Vertical Machine	Maximum Shot Weight (g)	Quantity
FCS Injection Molding Machine	160	Two-Color Injection Molding	Horizontal Machine	66+66	1
FCS Injection Molding Machine	280	Two-Color Injection Molding	Horizontal Machine	77+146	2

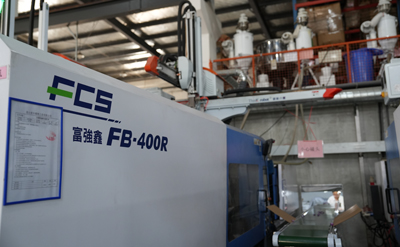

FCS Injection Molding Machine	400	Two-Color Injection Molding	Horizontal Machine	185+289	1
FCS Injection Molding Machine	700	Two-Color Injection Molding	Horizontal Machine	414+185	2
Niigata Injection Molding Machine	450	Single-Color Injection Molding	Horizontal Machine	400	3
Yizumi Injection Molding Machine	450	Single-Color Injection Molding	Horizontal Machine	800	2
Yizumi Injection Molding Machine	90	Single-Color Injection Molding	Horizontal Machine	110	1
Haitian Injection Molding Machine	350	Single-Color Injection Molding	Horizontal Machine	473	2
Haitian Injection Molding Machine	650	Single-Color Injection Molding	Horizontal Machine	1580	1
Haitian Injection Molding Machine	130	Single-Color Injection Molding	Horizontal Machine	200	2
Haitian Injection Molding Machine	160	Single-Color Injection Molding	Horizontal Machine	300	2
Haitian Injection Molding Machine	300	Single-Color Injection Molding	Horizontal Machine	700	2
Haitian Injection Molding Machine	200	Single-Color Injection Molding	Horizontal Machine	246	2
Fengtie Injection Molding Machine	40	Single-Color Injection Molding	Vertical Machine	89	2

Quality Inspection Equipment List

Equipment Brand	Device Model	Origin	Operating Stroke (mm)	Quantity

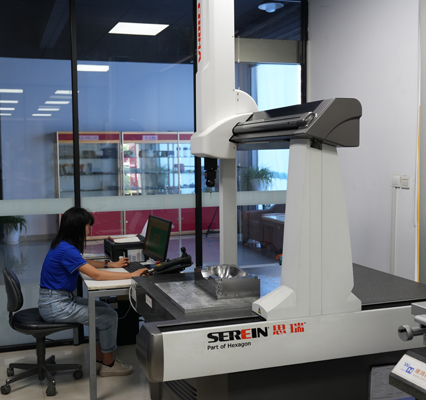

Hexagon CMM	CROMA-8106	America	800x1000x600	1

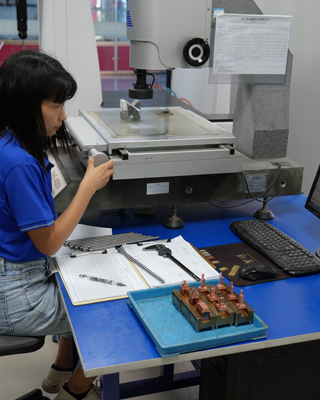

2.5D Measurement Equipment	WHE-4030V	Taiwan, China	400x300x200	1
Mitutoyo Height Gauge	LH-600E	Japan	600	1
Projector	PB-3020-200	Taiwan, China	300x200x200	1
Rockwell Hardness Tester	HR-J150A	China	170	1
Torque Testing Machine	HP-100	China	1.5 ~ 90.0 lbf.in / 1.5 ~ 100.0 kgf.cm / 0.15 ~ 10.00 N.m	1
Coating Thickness Gauge	CT-100	China	0-1250um / 0-50mil	1

Frequently Asked Questions (FAQ)

Q1: Are you a factory or trading company?

We are a professional plastic mold and injection molding manufacturer based in China. We welcome clients to visit our factory.

Q2: How can I get a quotation?

We will submit the quotation within 24 hours if we receive detailed information during working days. Please provide us with the following details along with your inquiry:
1). 3D STEP files and 2D drawings;
2). Material requirements;
3). Surface treatment;
4). Quantity (per order/per month/annual);
5). Any special demands or requirements such as packing, labels, delivery, etc.

Q3: How do you perform quality control?

1). Incoming materials inspection by IQC;
2). During processing, our IPQC checks the injection molded parts hourly to ensure no defects;
3). FQC checks the products before they are sent to the warehouse;
4). 100% inspection by QC before shipping.

Q4: What should we do if we receive defective products?

If you receive a defective product, please send us photos. We will immediately coordinate with our engineering and QC departments and solve the issues as soon as possible.

Q5: How do you pack the molds and products?

1). For molds: we apply a layer of anti-rust oil first, then wrap them in thin film, and finally pack them into a fumigated wooden case.
2). For products: we pack them into standard export cartons or according to the customer's specific packaging requirements.

Q6: What materials and surface treatments do you offer for injection molded parts?

We support a wide range of plastic materials including ABS, PC, PP, HDPE, POM, PA6, PA6+GF, PVC, NYLON, PMMA, PET, etc. Available surface treatments include Texture, Sandy, MT, YS, SPI, EDM finish, smooth, glossy, and VDI.
