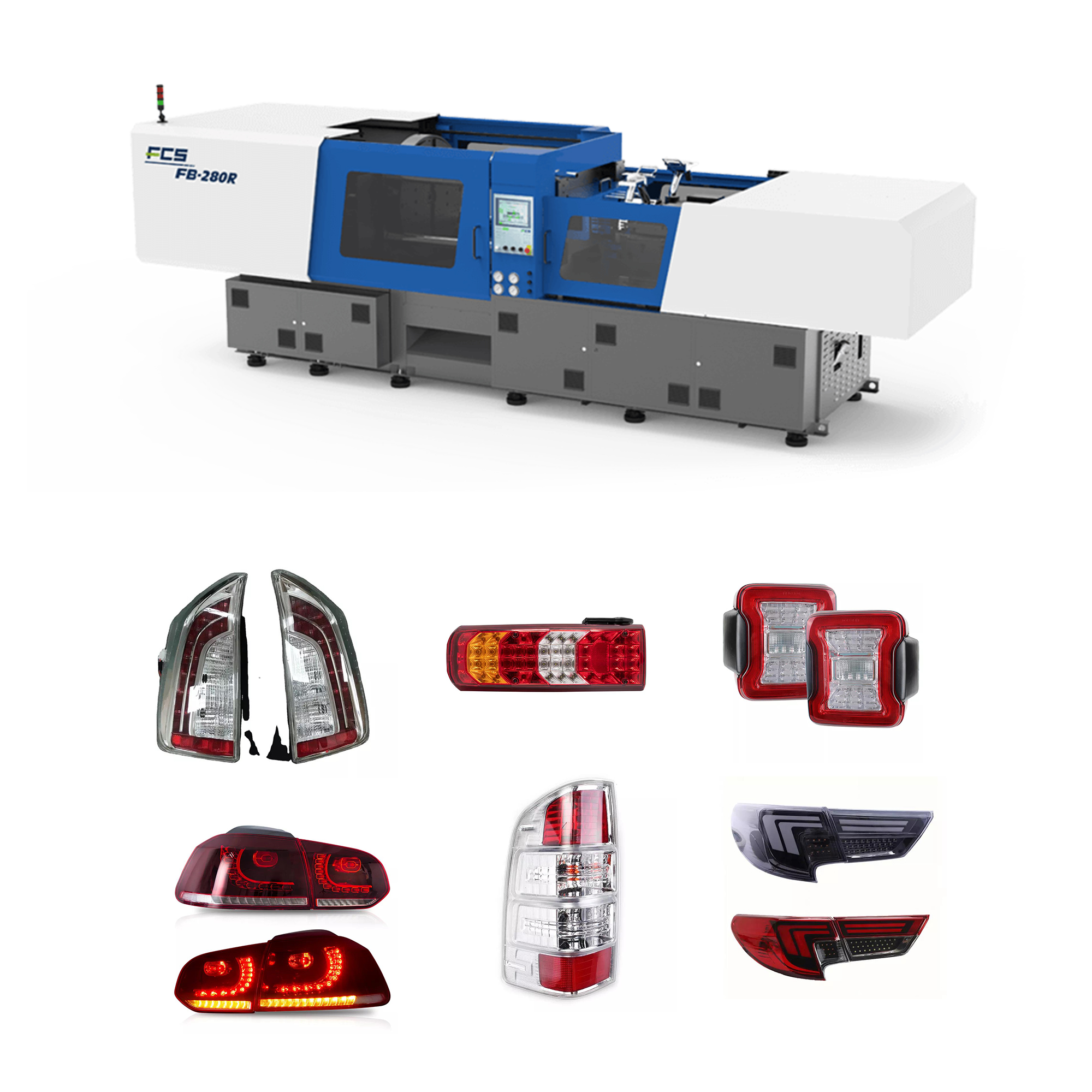

LED Tail Lights Auto Lighting System Taillight Making Two Color Injection Molding Machine 280ton FB-280R
Auto Rear Light Car LED Tail Lamp Two Color Injection Molding Machine FB-280R
Two Color Car Rear Lamp Injection Molding Machine FB-280R Two Colors Injection Moulding Machine
⚙️
Application

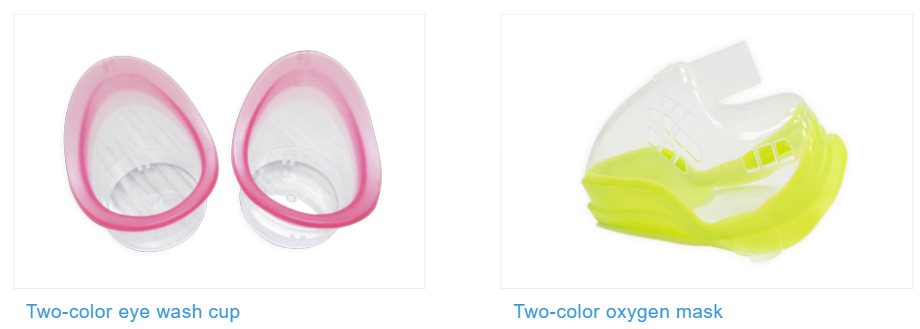

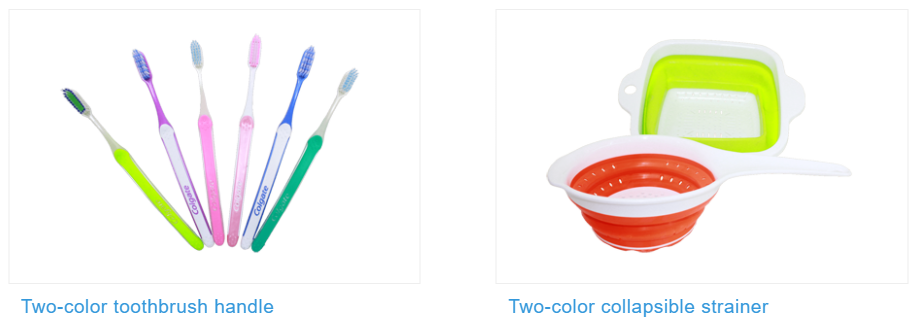

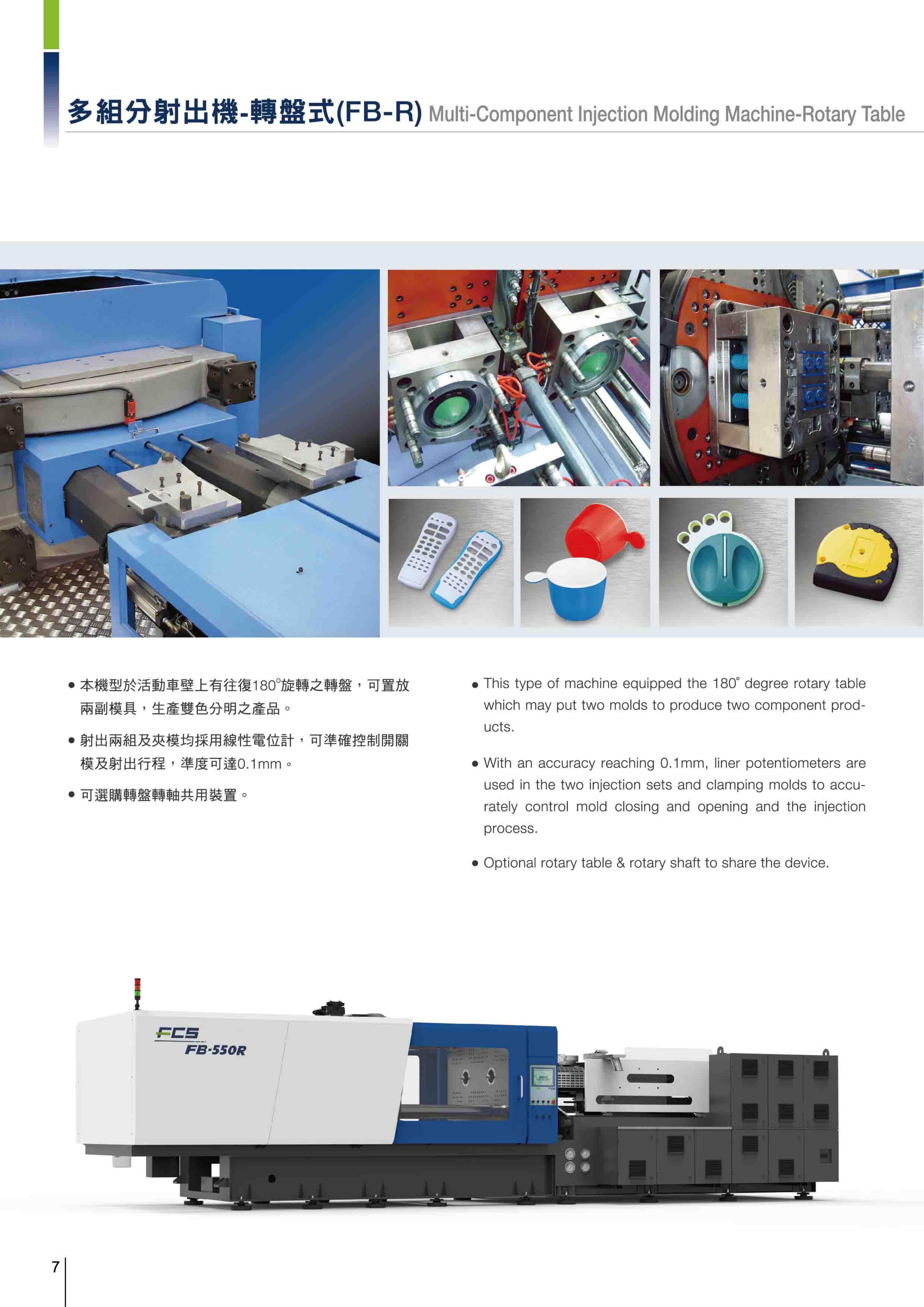

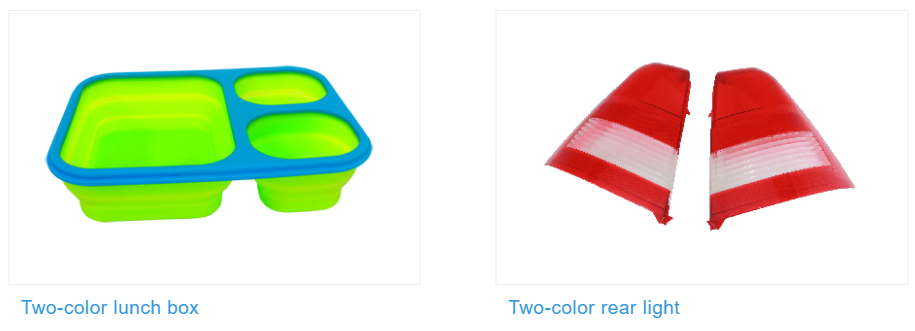

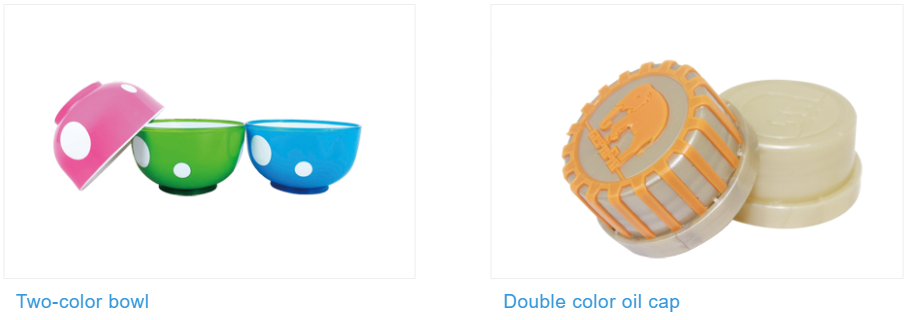

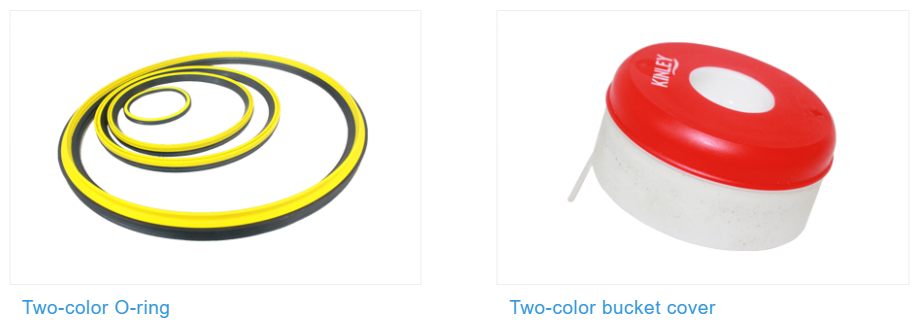

It is rotary table two-component injection molding equipment. It is suitable for two-component and multi-component products, including automotive lamp housing, livelihood supplies, etc.
⚡
Characteristic

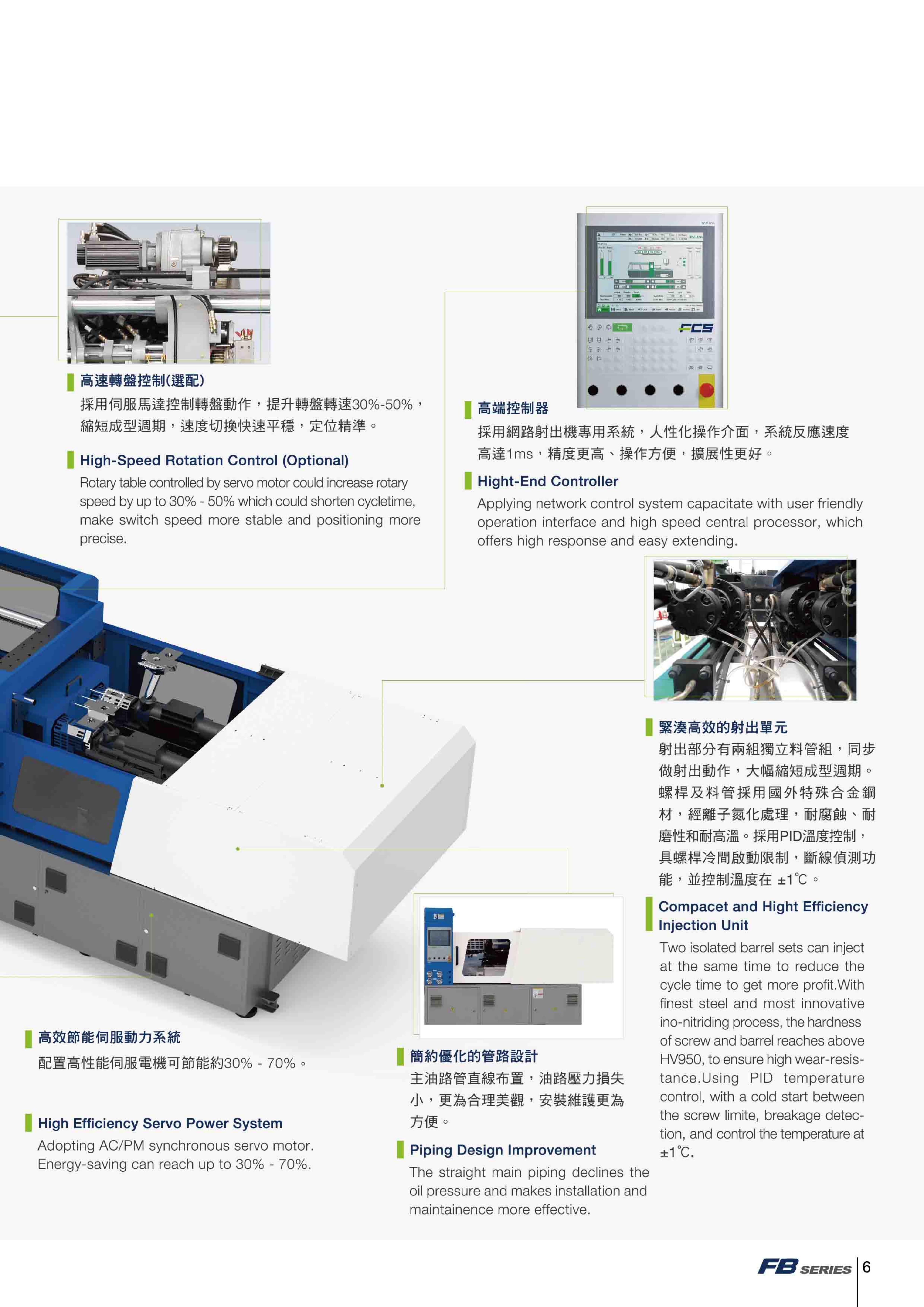

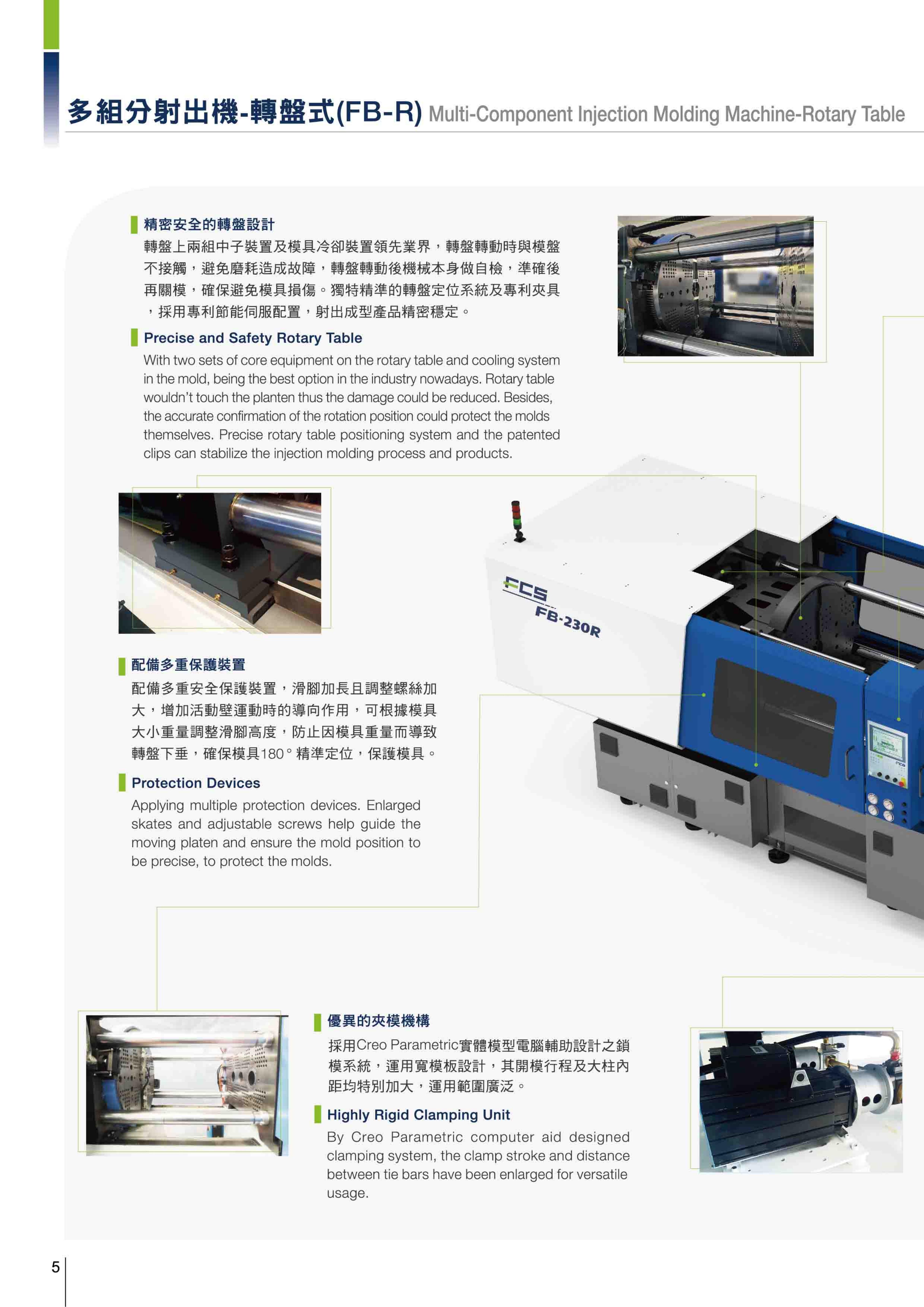

When the rotary table rotates, it does not touch the mold plate to avoid wear and tear. Rotary table controlled by servo motor could shorten rotary time by more than 50%, with more stable rotary speed switch.

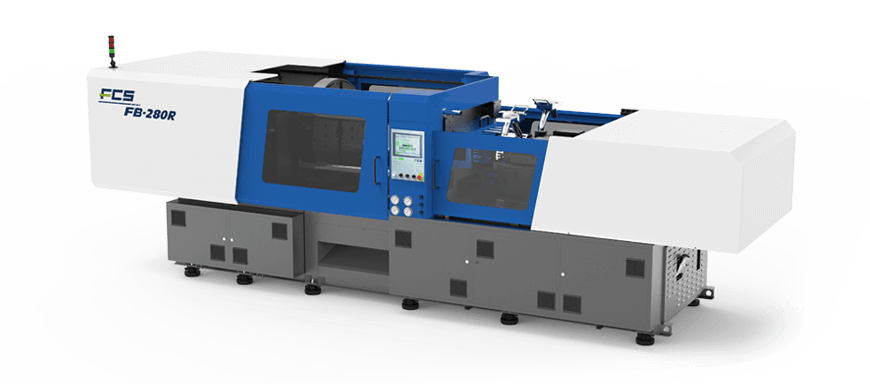

Technical Parameters: FB-280R Servo Motor Two-color Injection Molding Machine
| Items |
Unit |
FB-280R (Type 401) |
| Screw diameter | mm | 32 | 36 | 40 | 45 |
| Screw stroke | mm | 200 |
| Theoretical shot volume | cm³ | 161 | 203 | 251 | 318 |
| Shot weight of injection (PS) | gram | 146 | 185 | 229 | 289 |
| Injection pressure | kgf/cm² | 2529 | 1998 | 1619 | 1279 |
| Injection rate | cm³/sec | 136 | 172 | 212 | 269 |
| Distance between barrels centers | mm | 500 |
| Mold clamping force | tonf | 280 |
| Mold clamping stroke | mm | 450 |
| Mold thickness | mm | 200-650 |
| Tie bars space (H*V) | mm | 950*540 |
| Mold platen (H*V) | mm | 1230*820 |
| Effective ejector stroke | mm | 120 |
| Rotary table diameter | mm | 1080 |
| Mold sets | set | 2 |
| Max. pump driving motor | kw(380v) | 56.6 |
| Temperature controller | set | 5 |
| Heater capacity | kw | 19.3 |
| Machine dimension (L*W*H) | mm | 7010*1940*2040 |
| Oil tank capacity | liter | 590 |
| Machine weight | ton | 16 |
| Max. system pressure | kgf/cm² | 140 |
Frequently Asked Questions
What applications is the FB-280R suitable for?
The FB-280R is specifically designed for two-component injection molding, making it ideal for automotive lighting (like LED tail lamp housings) and high-quality multi-color livelihood products.
How does the servo-controlled rotary table improve production?
The servo motor control allows the rotary table to switch speeds more stably and can reduce rotation time by more than 50% compared to traditional systems, significantly increasing efficiency.
Does the rotary table cause wear on the mold plate?
No, the design ensures that when the rotary table rotates, it does not touch the mold plate, which prevents mechanical wear and extends the lifespan of the equipment.
What is the clamping force and machine weight of the FB-280R?
The machine provides a mold clamping force of 280 tons and has a total machine weight of approximately 16 tons.
Can this machine handle high-precision injection?
Yes, with a maximum injection pressure of up to 2529 kgf/cm² (depending on screw diameter) and specialized servo controls, it is built for high-precision, two-color industrial applications.
What are the dimensions for installation?
The machine dimensions are approximately 7010mm in length, 1940mm in width, and 2040mm in height.
