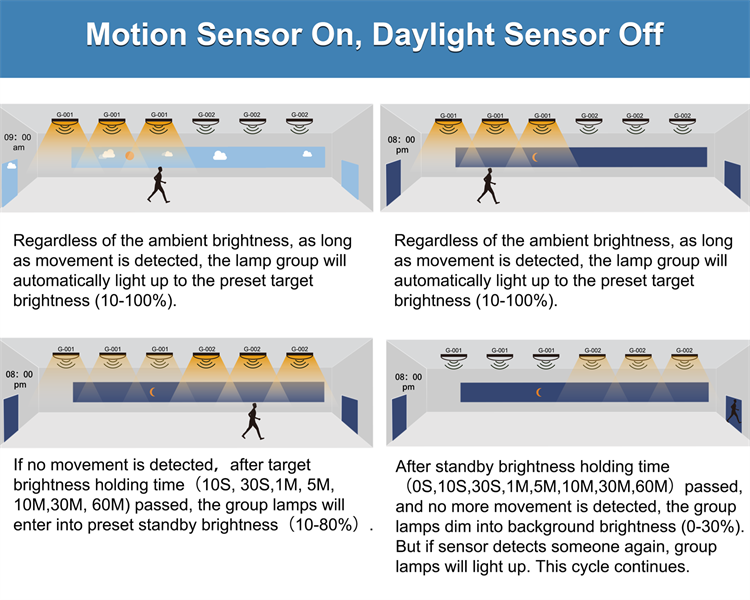

A high-performance solution designed for warehouse logistics automation, compatible with LED high bay lights, panel lights, triple-proof lights, and more. This sensor offers sophisticated occupancy and daylight sensing capabilities to maximize energy efficiency.

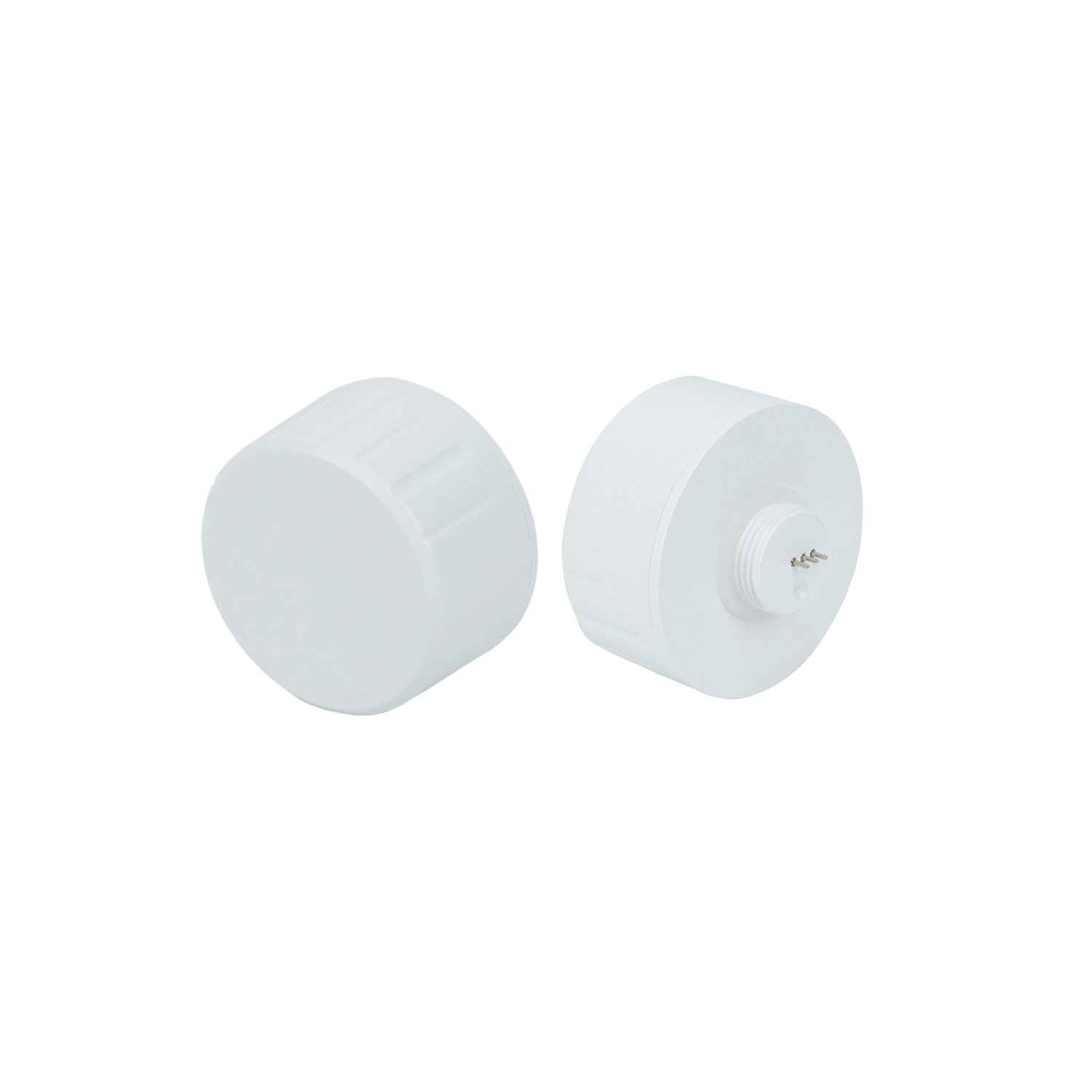

| Product Name | Occupancy Daylight Sensor |
| Input Voltage | DC12V (power ripple requirement < 200mV) |
| Power | 0.5W |
| Input Current | 200mA |
| Output Signal | 0-10V |
| Microwave Frequency | 5.8GHz ± 75Mhz |

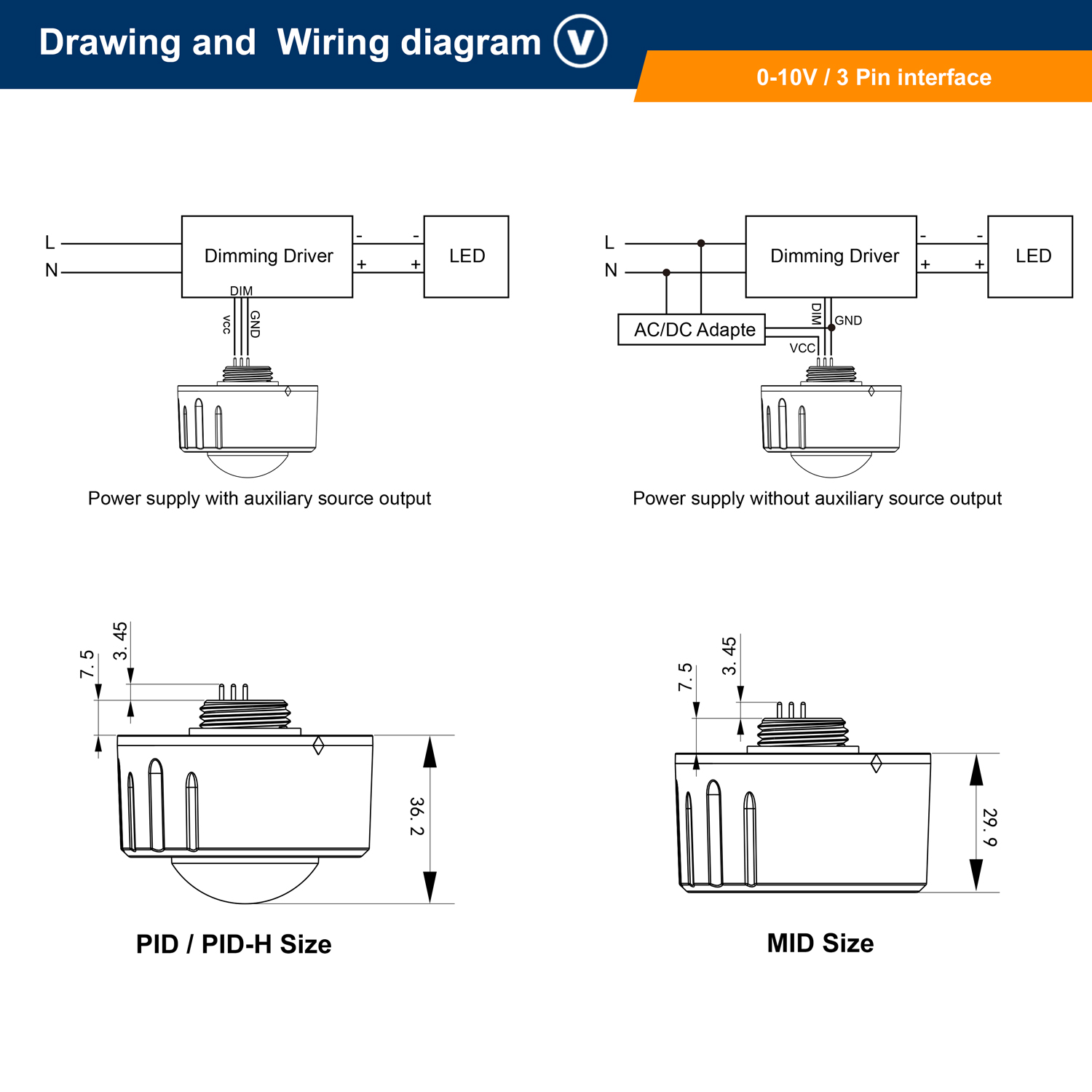

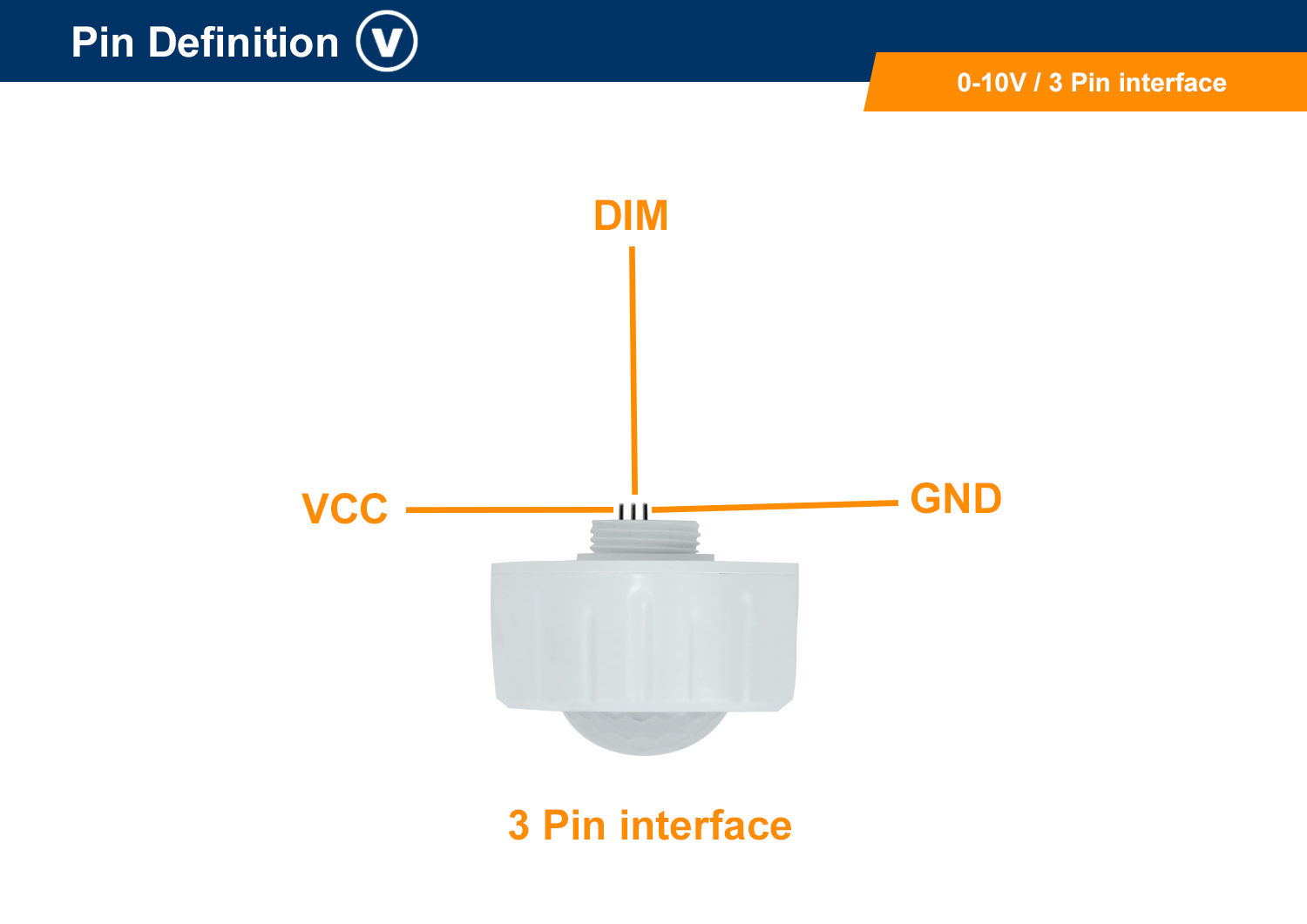

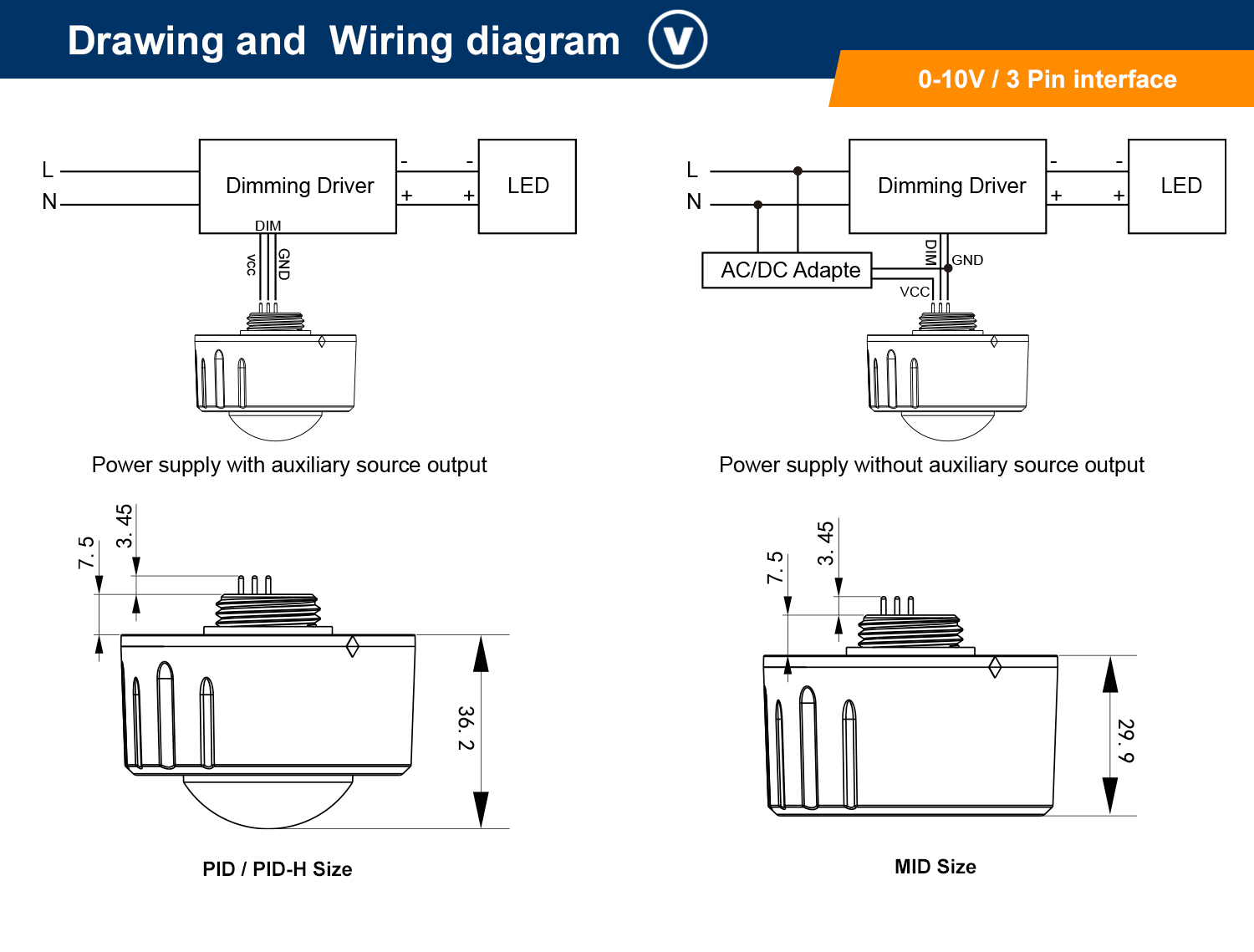

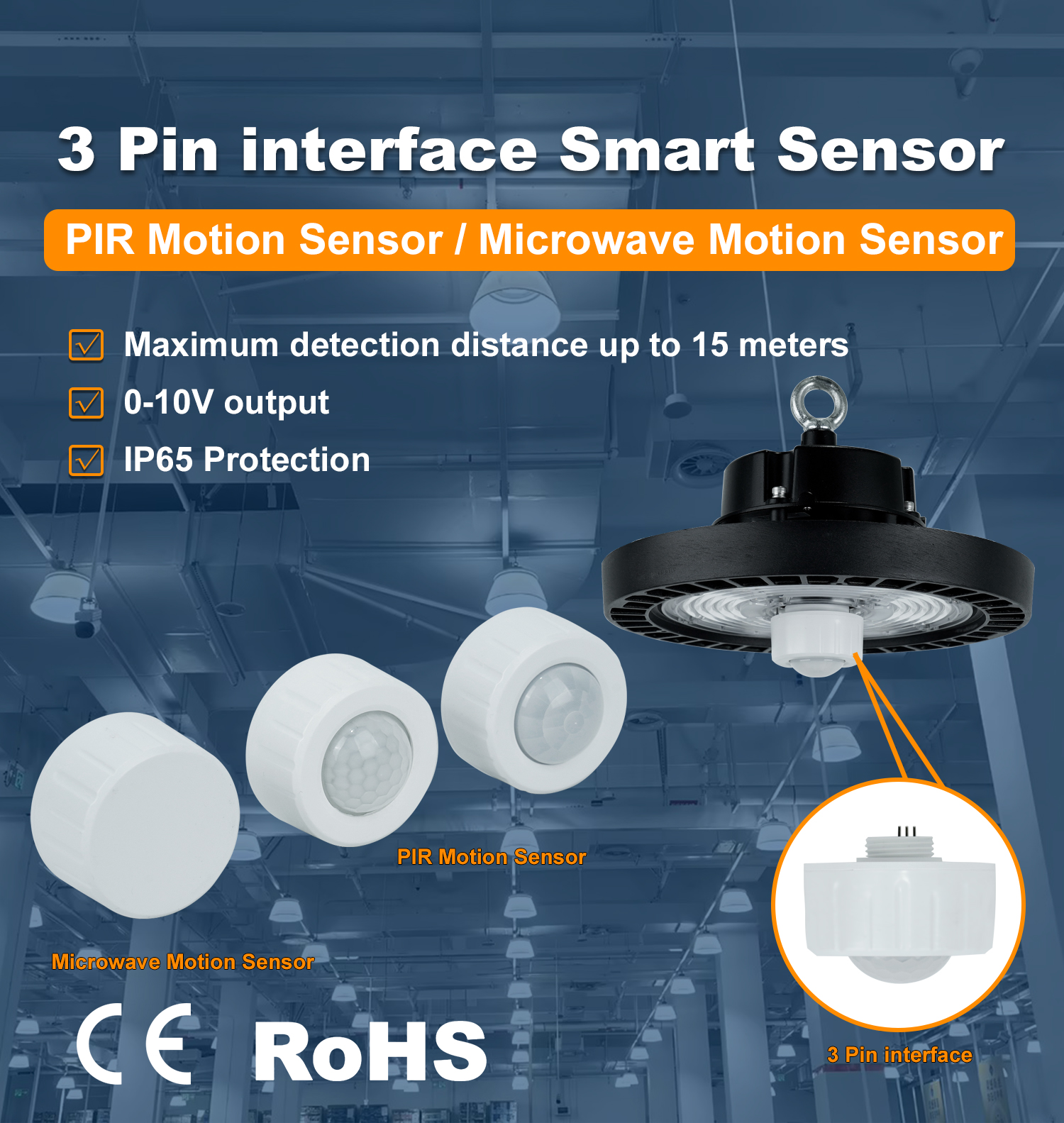

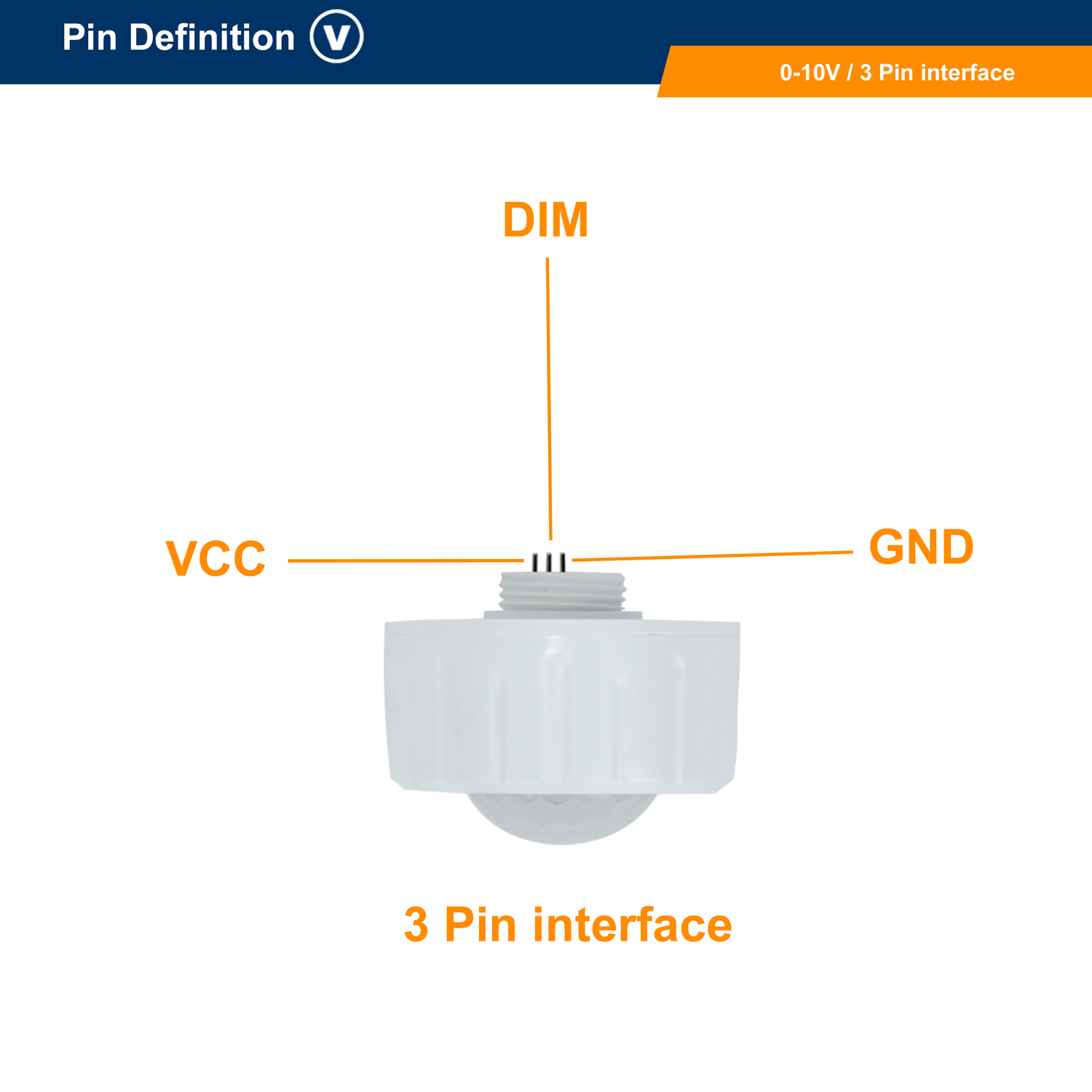

| Connect Interface | Zhaga interface / 3 Pin interface |
| Protection Class | IP66 |
| Material | PC V0 (Flame Retardant) |
| Operating Temp | -20℃ ~ 60℃ |

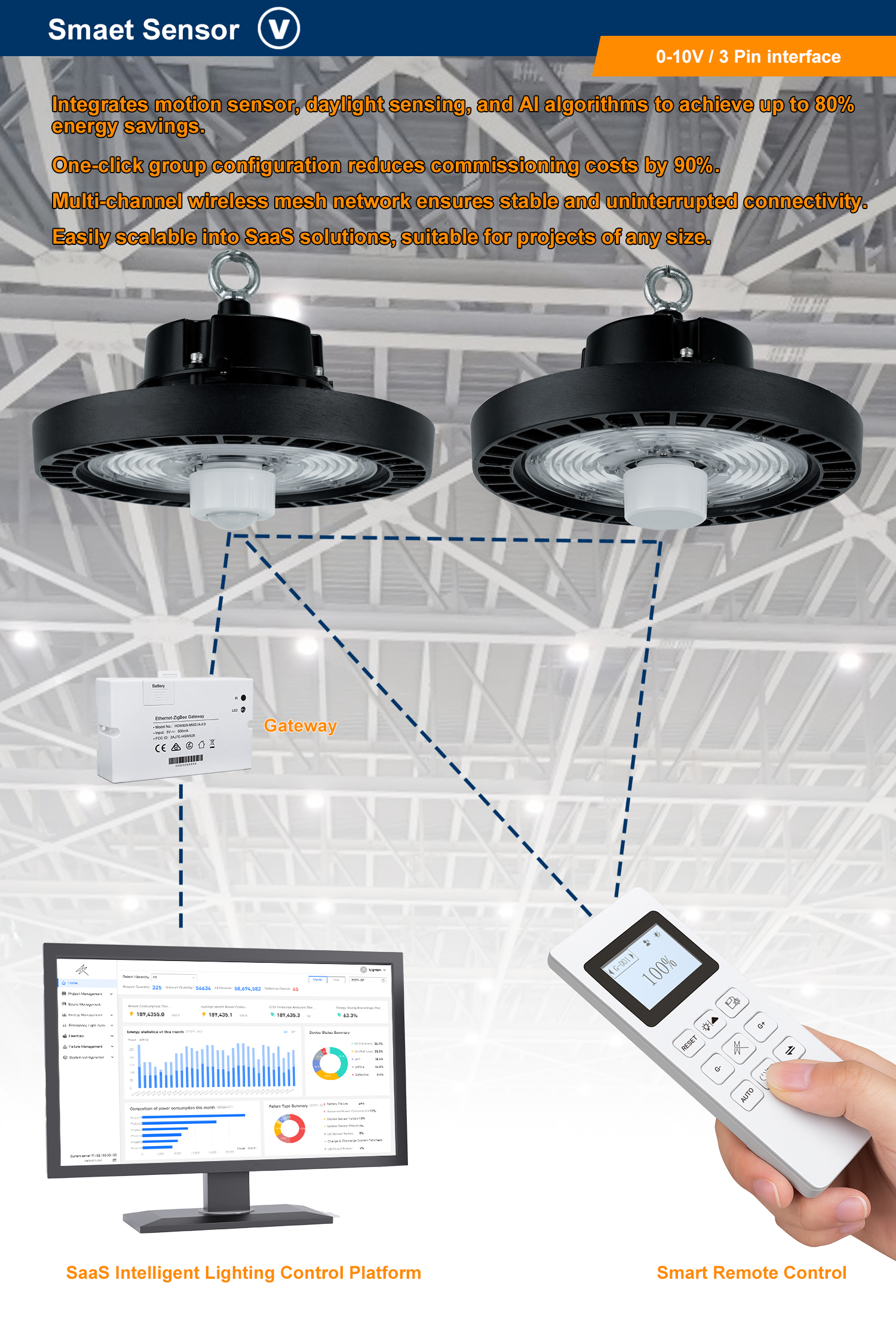

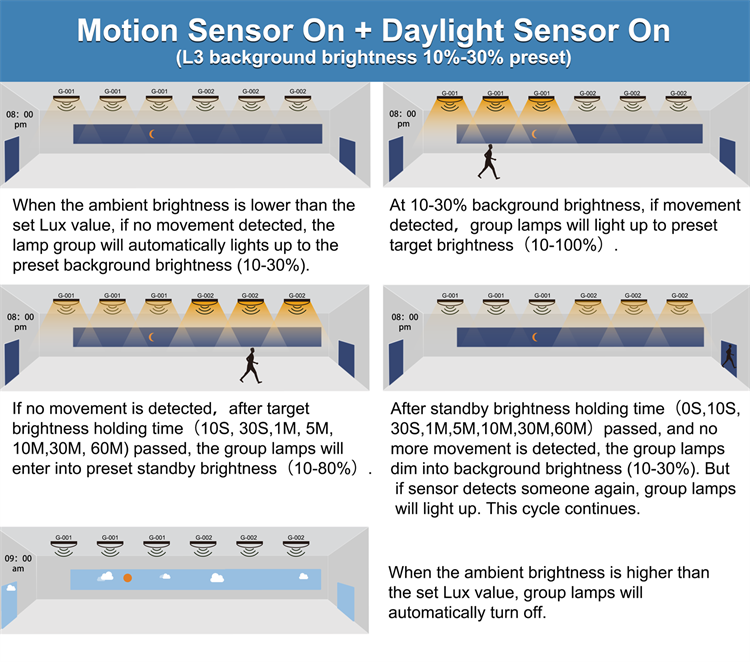

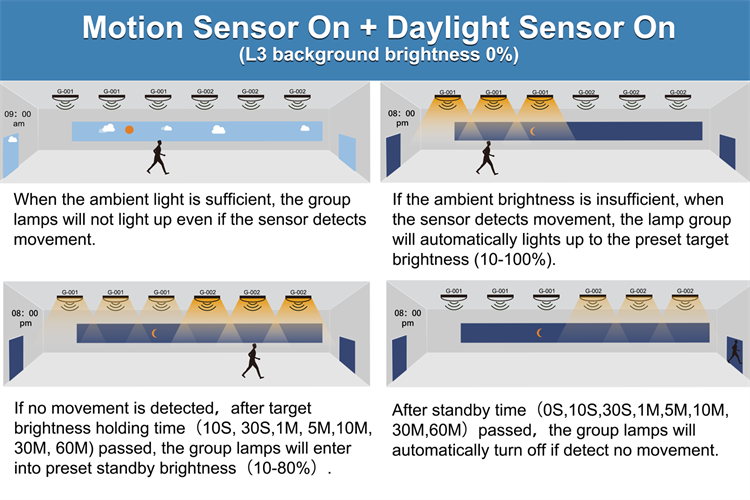

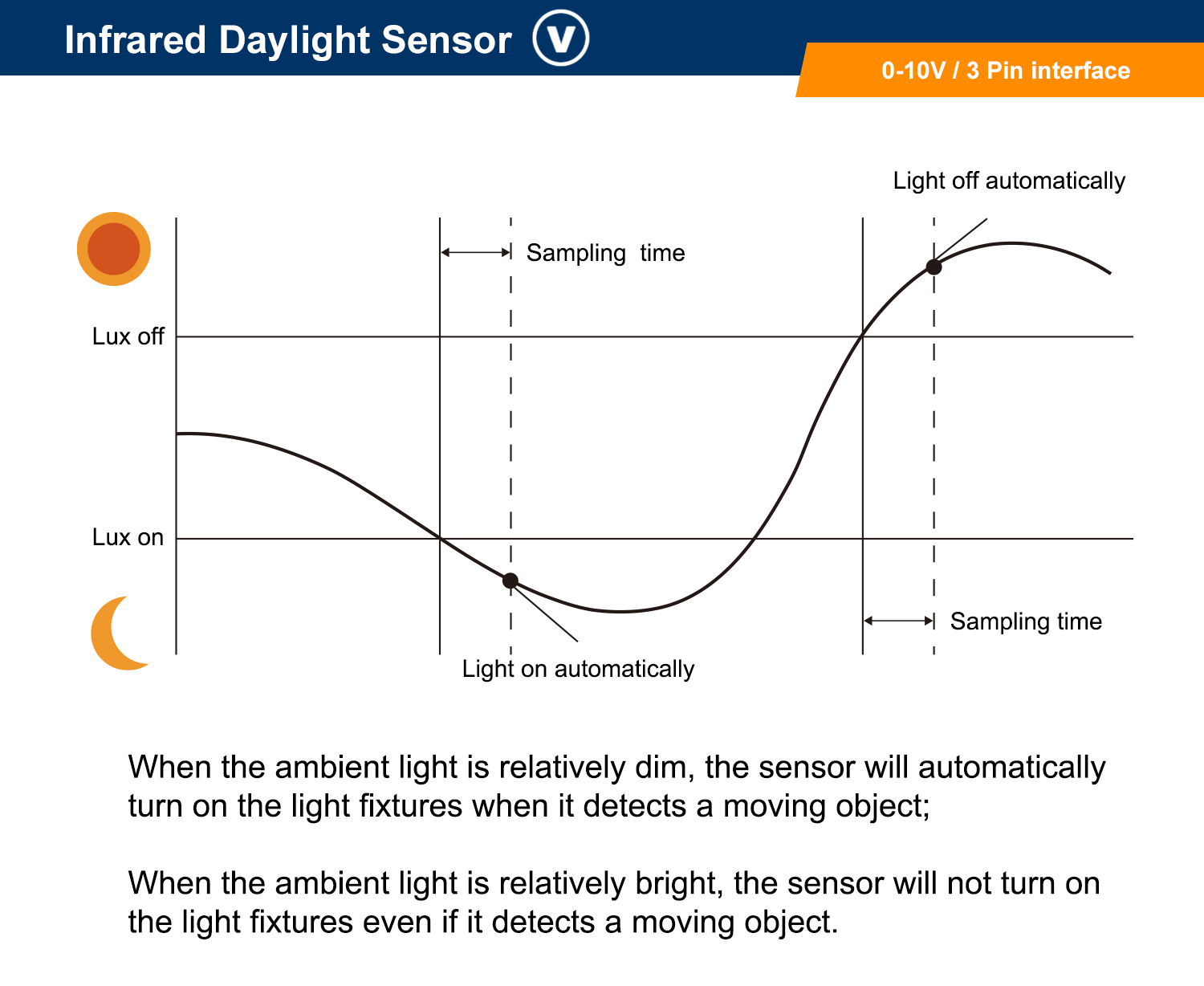

| Intelligent Control | ZigBee / Microwave motion sensor + Infrared Daylight Sensor / PIR Motion Sensor |

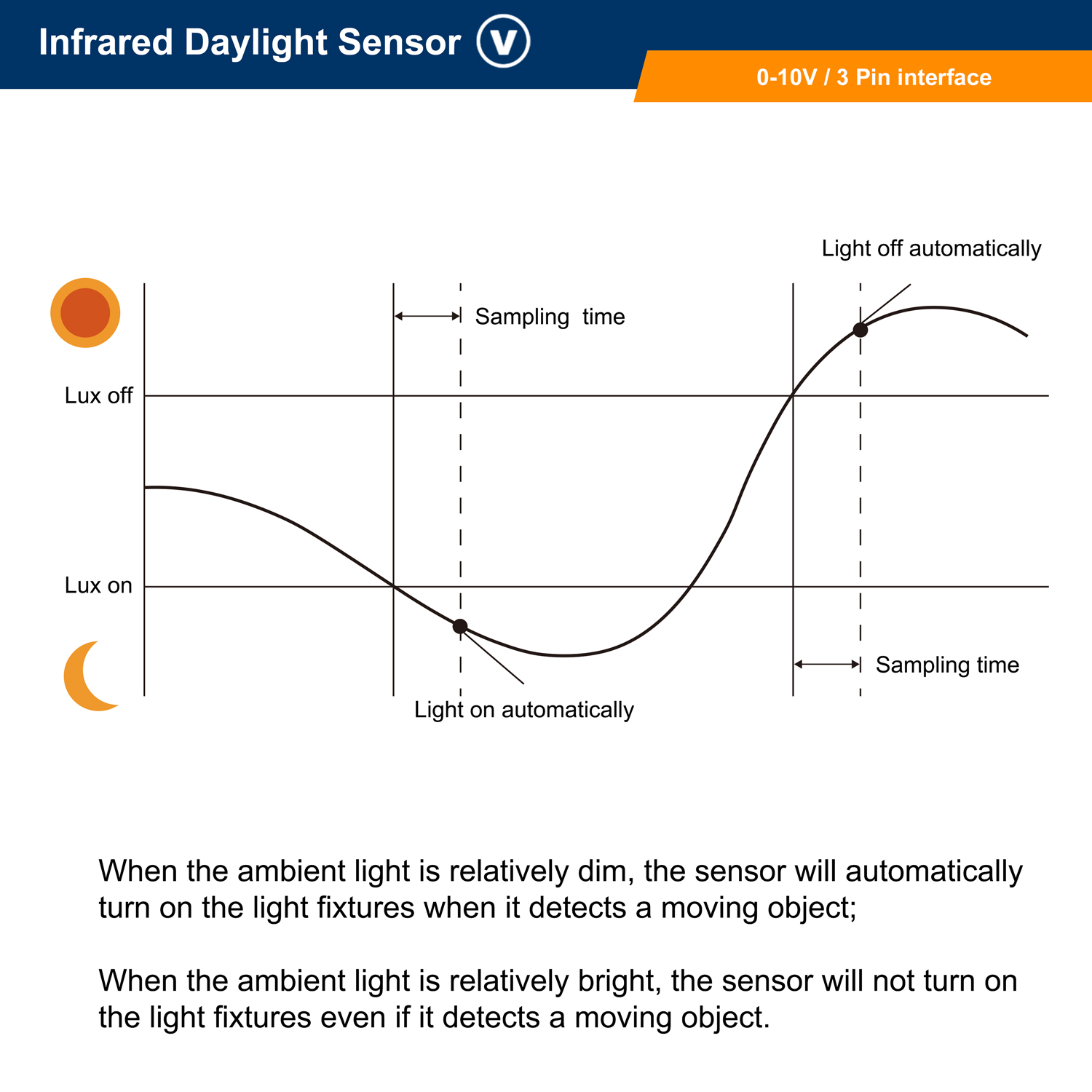

| Detection Range | 0-600Lux (Illuminance) |

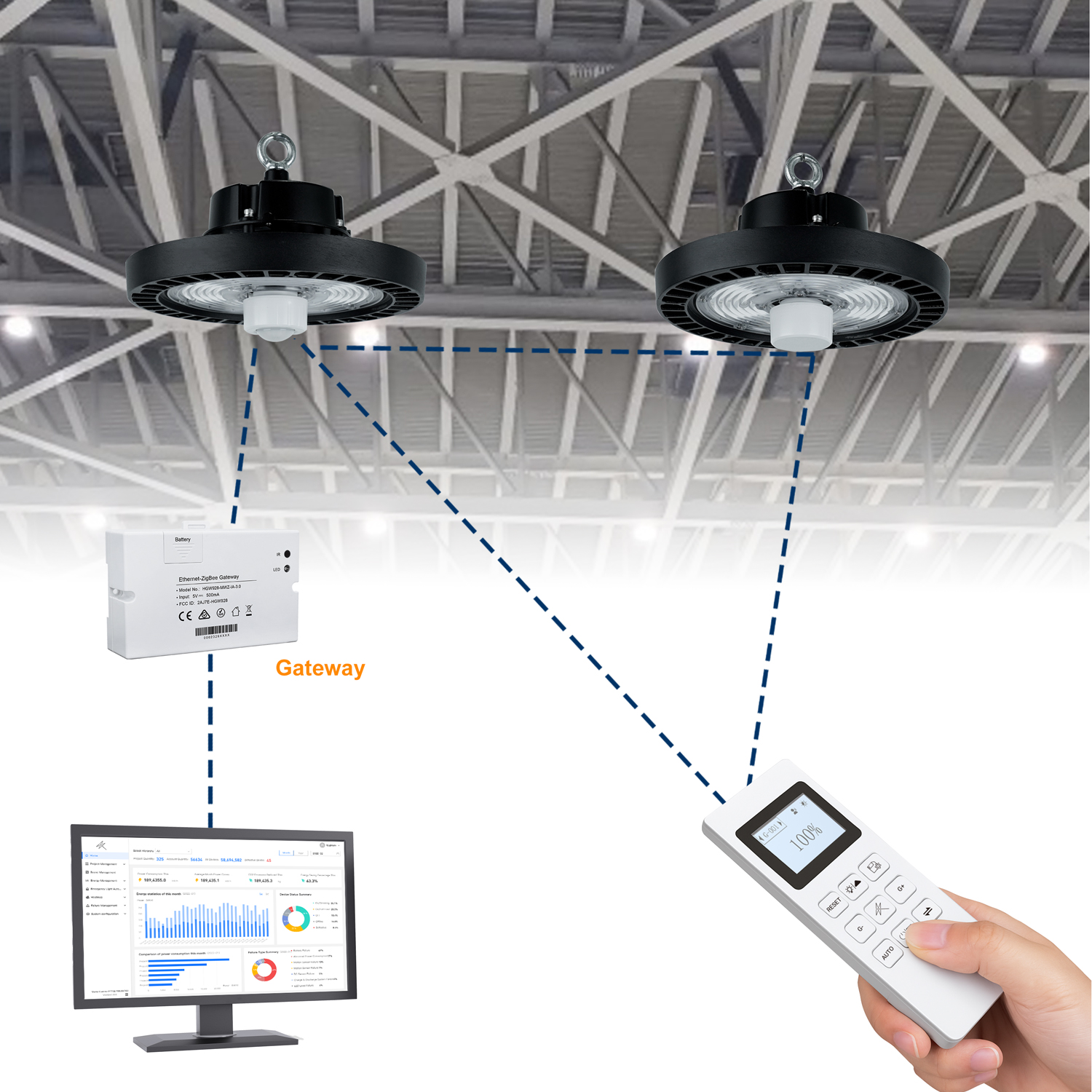

| Control Distance | Remote: 15 meters | Wireless: 30 meters |

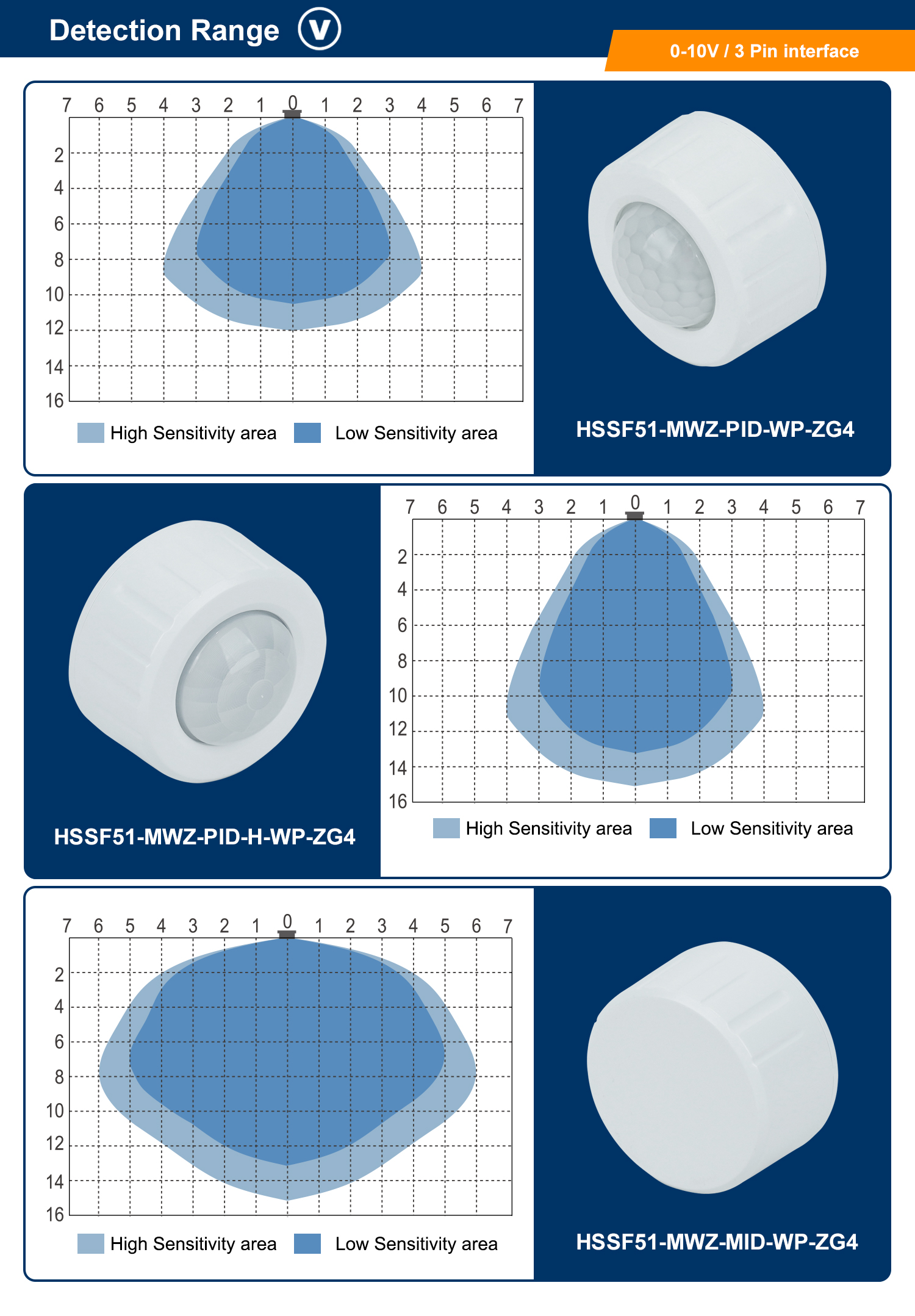

| Maximum Detection | MID: 12 meters | PID: 12-15 meters |

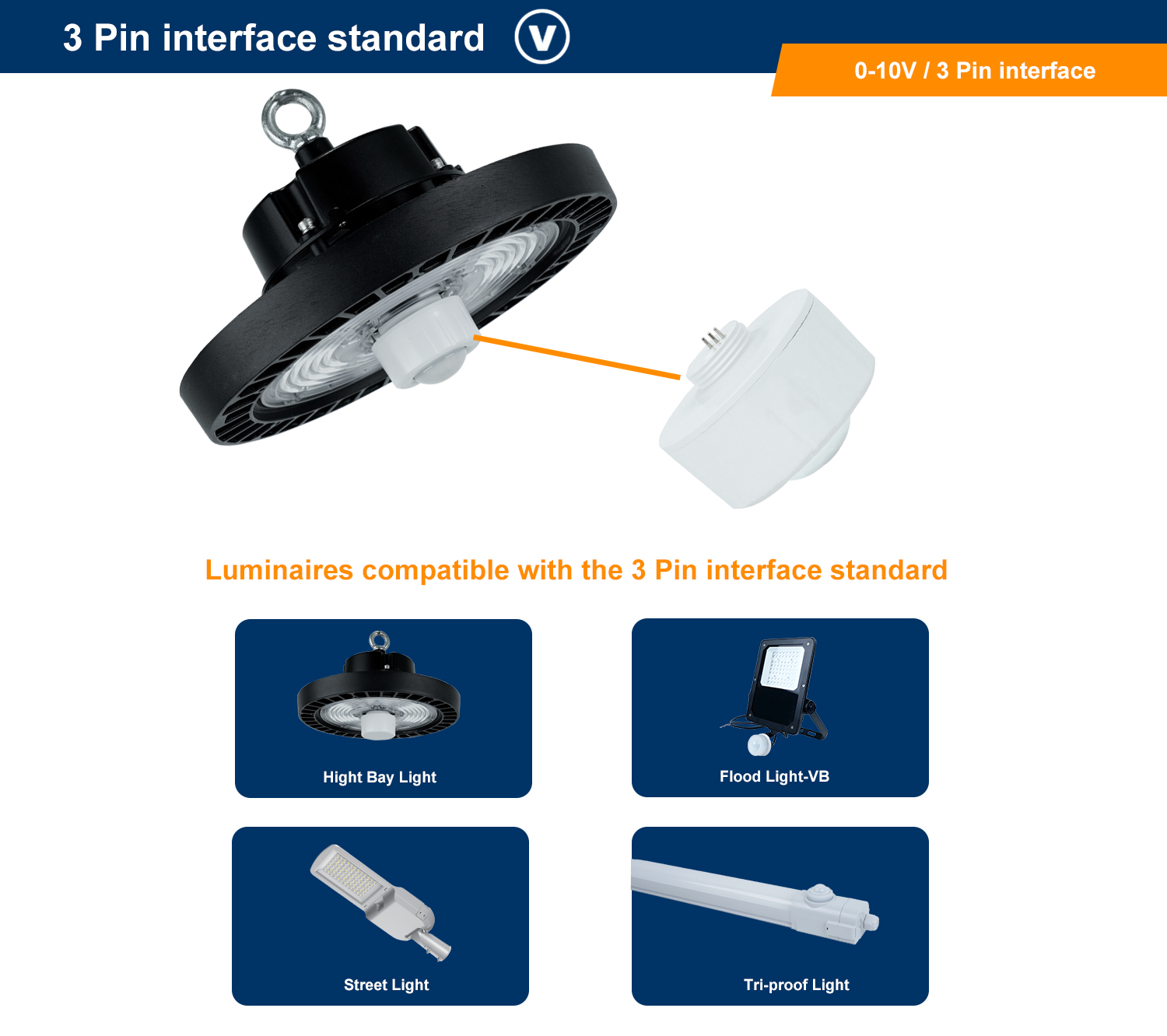

Compatible with: LED high bay lights, LED panel lights, LED triple-proof lights, LED downlights, T5/T8 tubes, LED Flood Lights, and Street Lights.

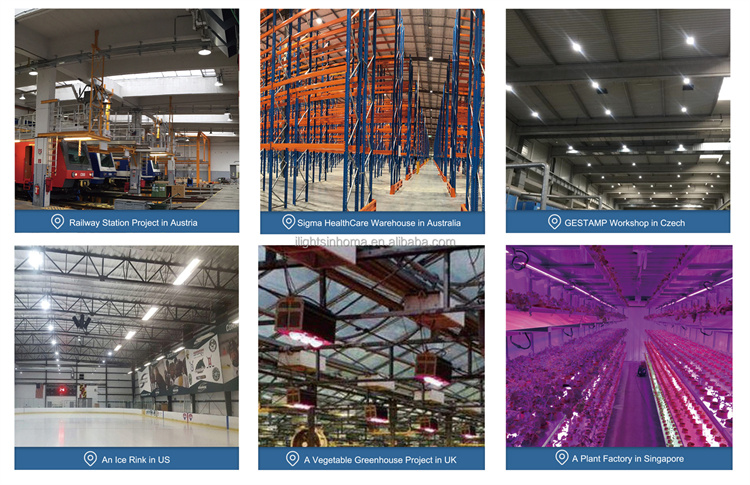

Ideal for: Offices, warehouses, factories, parking lots, hospitals, and libraries.
