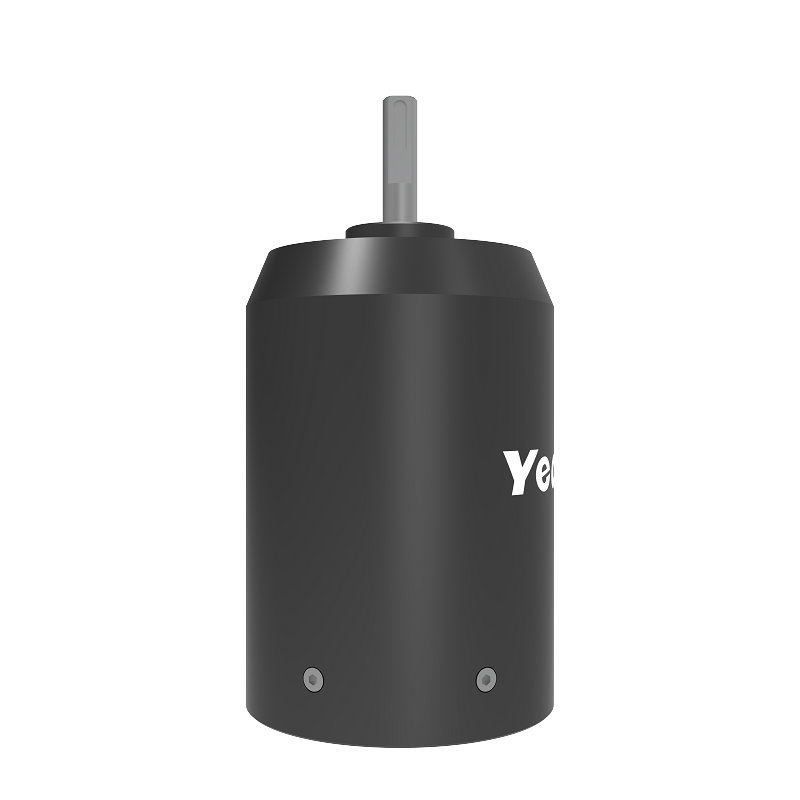

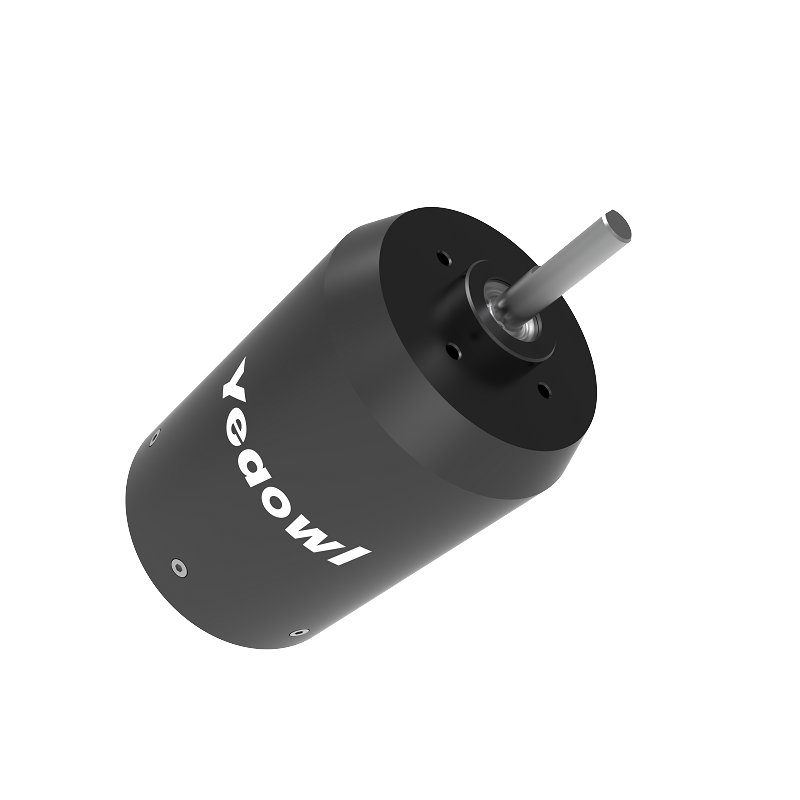

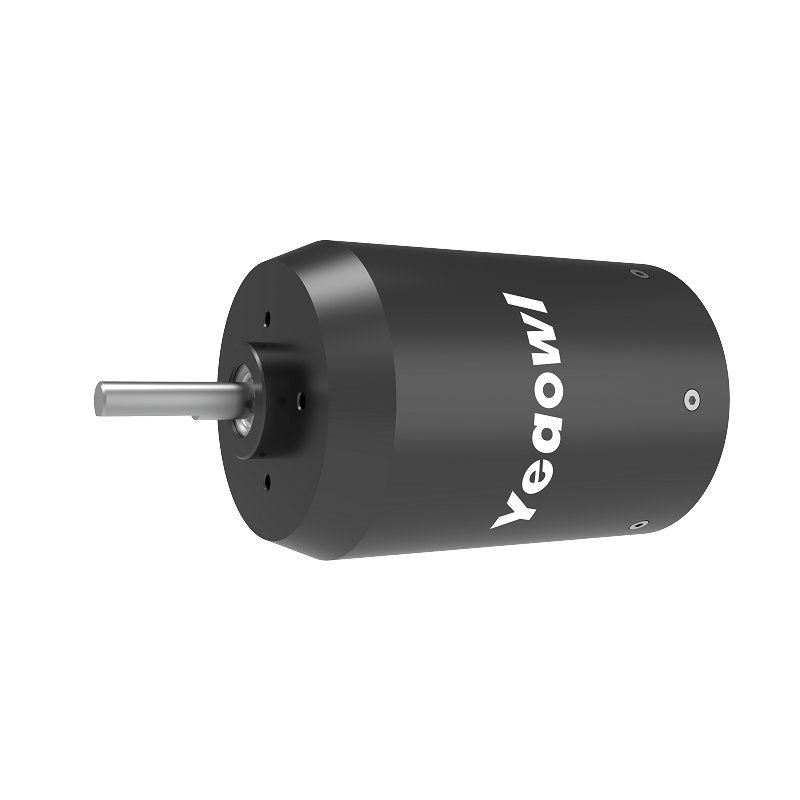

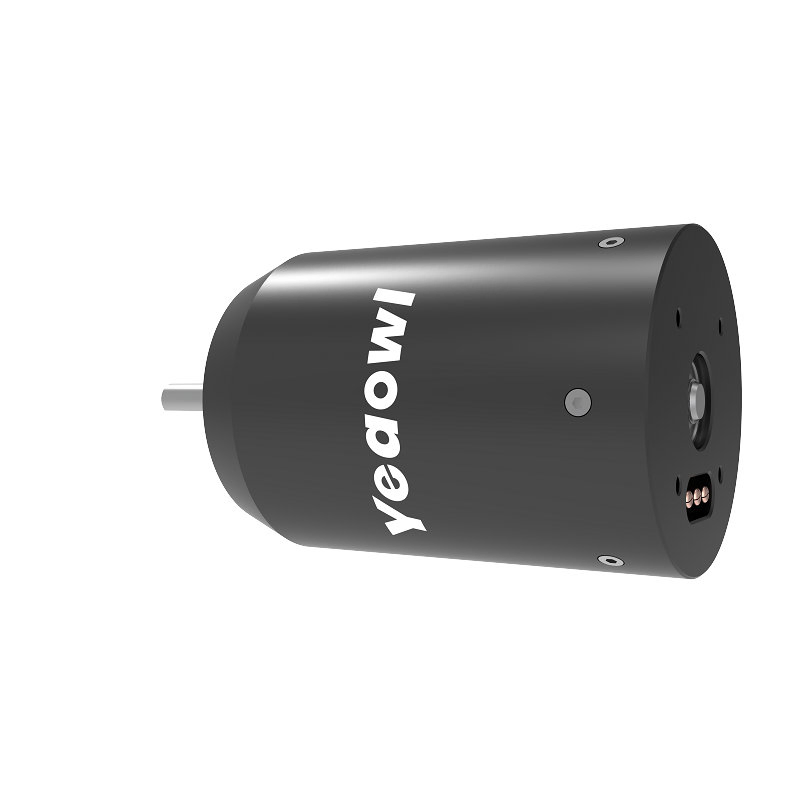

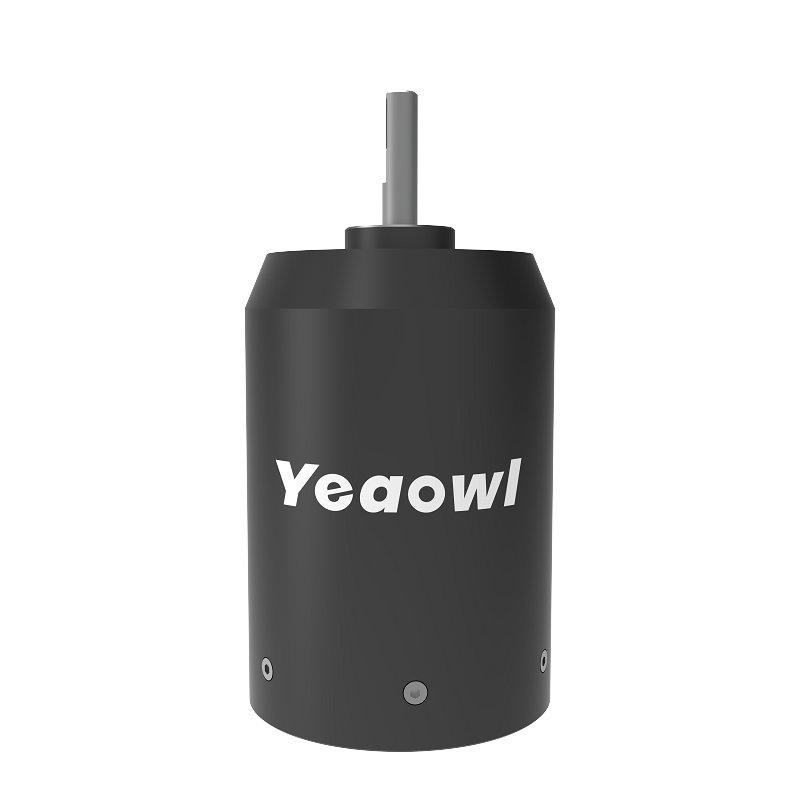

Experience the power and precision of the YO70100X motor, crafted with cutting-edge technology for unmatched performance. Long Lifespan: Built to last, saving you time and money in the long run.
| Code | Feature Item | Specification Details |
|---|---|---|
| A | Rated power | 1530w |
| B | Shipping time | Production completion within 45 working days |
| C | Adjustment | Easy speed & direction adjustment |
| D | Size & Noise | 70mm to 100mm range with low noise |
| E | Stability | Strong stability for driver/controller |
| F | Lifetime | Above continuous 10000 hours |
| G | Protection rank | IP68 protection rank is available |
| H | Efficiency | Above 92% energy efficiency motor available |

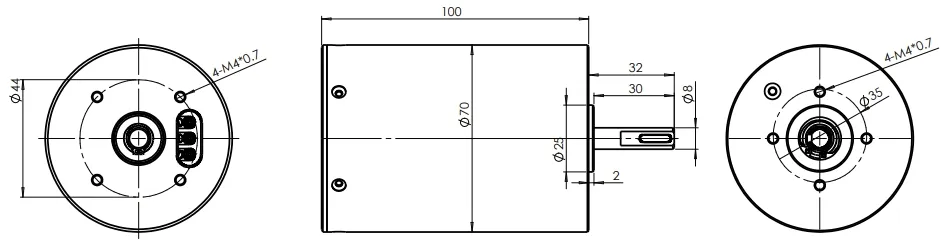

| I | Files | 2D and 3D files available upon request |
| J | Motor type | Brushless DC motors |
| Model | KV | Max Amps | Max Volt | Continuous (W) | Torque (N.M) | Max Power | Max RPM | Weight (g) | Poles |
|---|---|---|---|---|---|---|---|---|---|
| 70100X | 80 | 68 | 52 | 1530 | 4.4 | 3260 | 6000 | 1350 | 14 |
Available Voltages: 12V, 24V, 36V, 48V, 60V, 72V, 84V, 96V, 108V, 132V, 144V DC brushless motors.

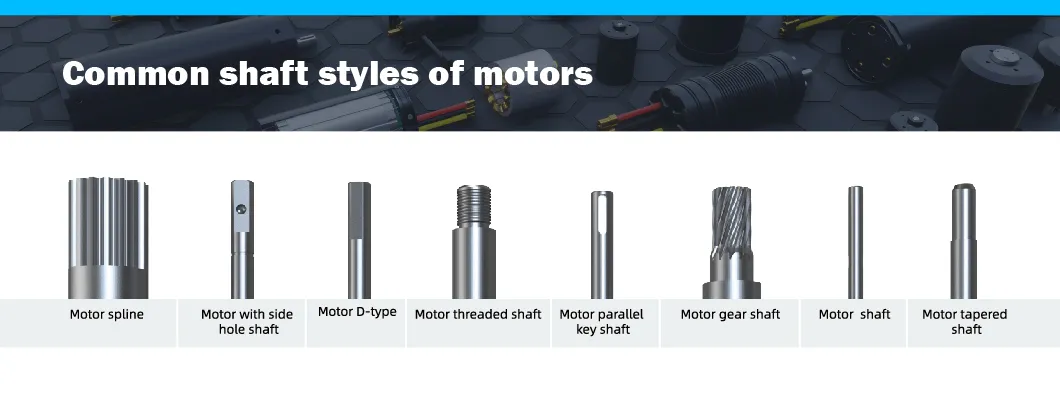

Custom Options: External/internal brushless motors, Hall sensors, reducers for high torque, shaft diameter, screw hole positioning, waterproof/dustproof levels, and water cooling jackets.
We customize high-quality motors that meet specific requirements in terms of cost, product matching, and functional needs. Our professional R&D team provides excellent services with efficient communication.
As a leading enterprise dedicated to the research, development, and manufacturing of various motor types, we focus on cutting-edge brushless DC motor technology. Our team is technically oriented and driven by market demand, independently manufacturing high-performance motors exported globally.

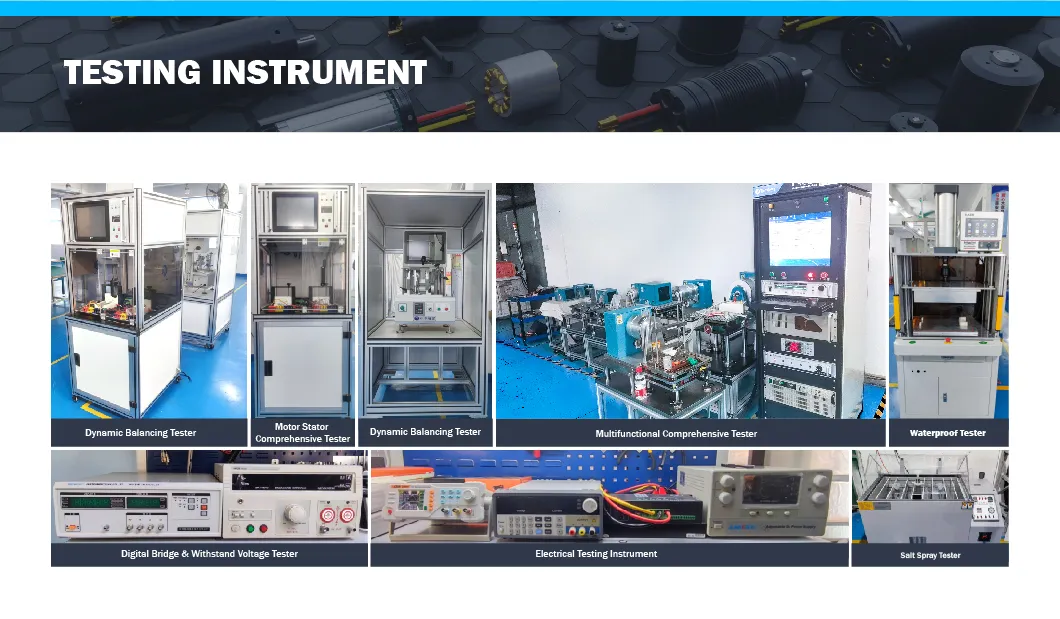

In terms of quality control, we conduct rigorous inspections through professional instruments, from raw materials to finished products, ensuring superior quality based on reliable data.
