Whc Ultra Safe Residential Ess Energy Storage Solutions with 51.2V 184ah 9.4kw Capacity LiFePO4 Lithium Iron Phosphate Battery for Solar System

Customization: Available
Type: Lithium-Ion Batteries
Usage: Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Home

Product Description

Powerwall Lithium Batteries with Battery Storage The Off-grid Solar Power System is one of the most cost-effective types of solar setups available. This complete system is equipped with highly efficient solar panels, an off-grid solar inverter, a Grade A+ lithium iron phosphate battery, and all standard solar accessories. It provides continuous electricity while significantly reducing utility bills.

Basic Info

Model NO.15KW-Li-20KWH
Nominal VoltageAC220V
Discharge RateHigh Discharge Rate
ShapeSquare Battery
ElectrolyteLi-ion
InstallationPackaged
RechargeableChargeable
Product NameOffgrid Solar Power System Home
Model15kw-Li-20kwh
Power15kw
Solar Panel TypeHalf Cell Solar Panel
Battery TypeLiFePO4 Lithium Battery
InverterPure Sine Wave Inverter
ControllerMPPT Solar Charge Controller
Solar Panel BracketAluminum Alloy
Mounting SupportPitched / Flat Roof / Ground
System TypeOff-Grid Solar Power System
Battery Cell3.2V 100ah LiFePO4 Cell
Specification20KW Li-20KWH
Production Capacity10000 pieces/Month

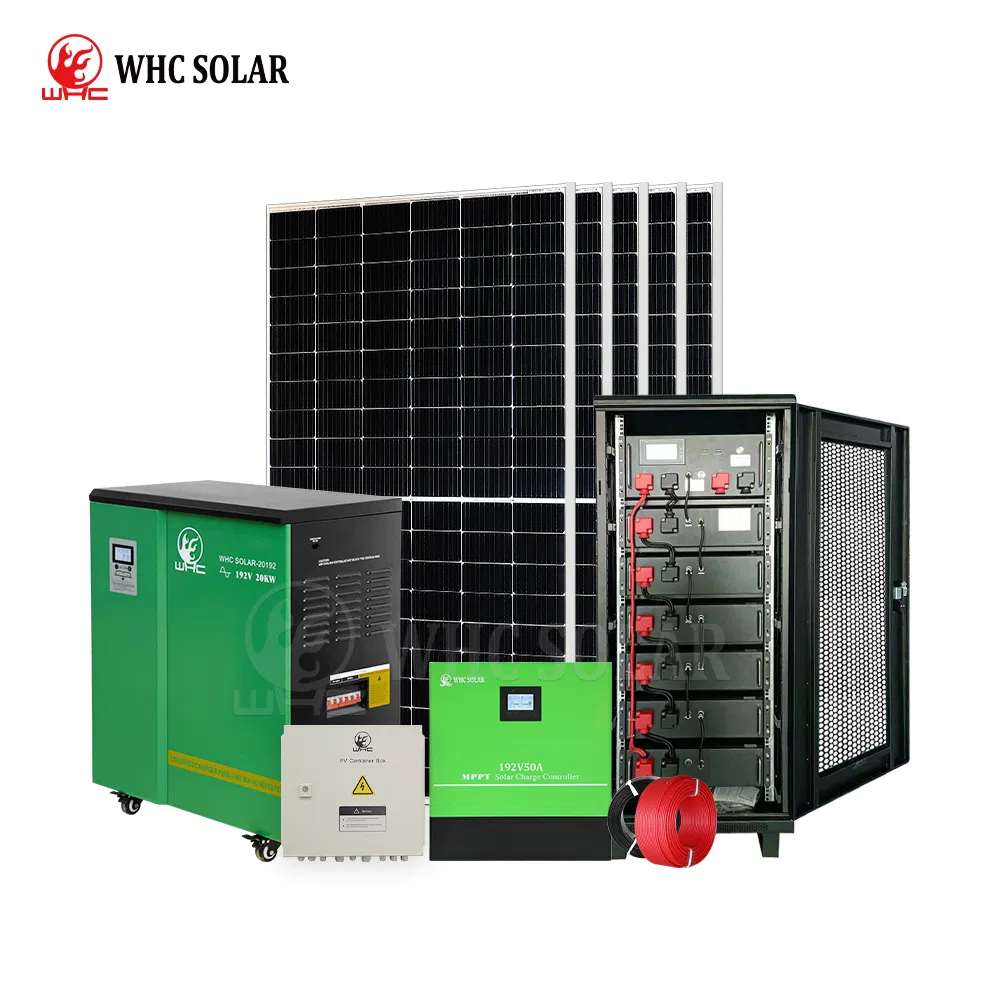

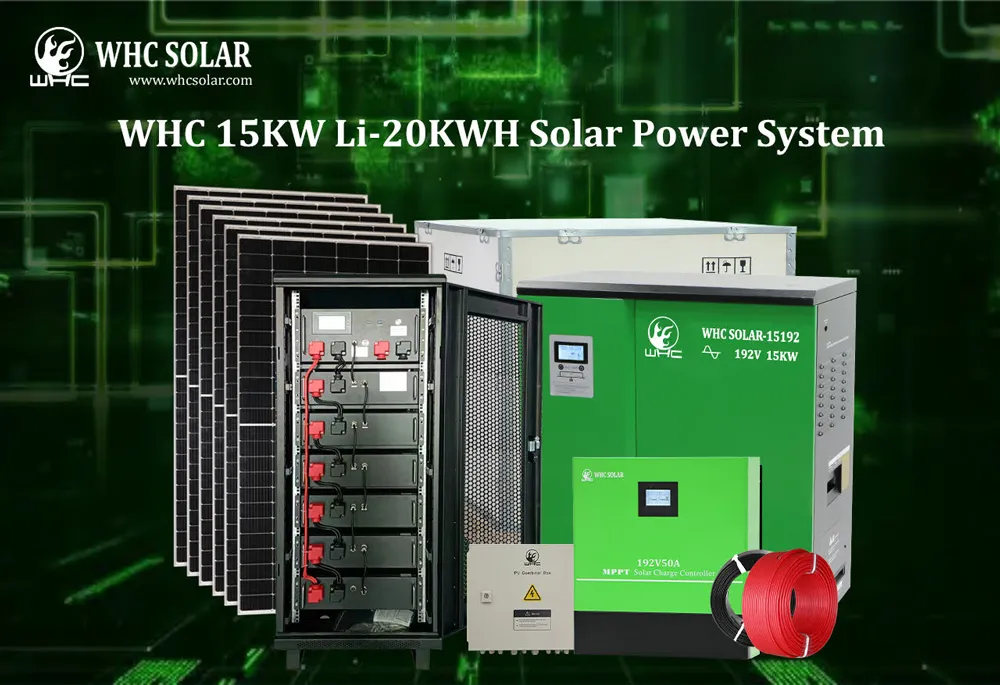

Product Configuration

Item Description Quantity
Solar Lithium Battery 192V 100AH LiFePO4 Lithium Battery 1 Piece
Solar Panel 450W Solar Mono Panel 18 Pieces
Solar Controller 192V 50A MPPT Controller 1 Piece
Solar Inverter 192V 15KW Solar Inverter 1 Piece
PV Combiner Box Six Input + Two Output 1 Piece
PV Cable Single-core 6mm² PV Cable (100m) 2 Pieces
PV Mounting Support Hot Galvanizing Ground Mounting Support 1 Set
Connector MC4 Connector 30 Pieces

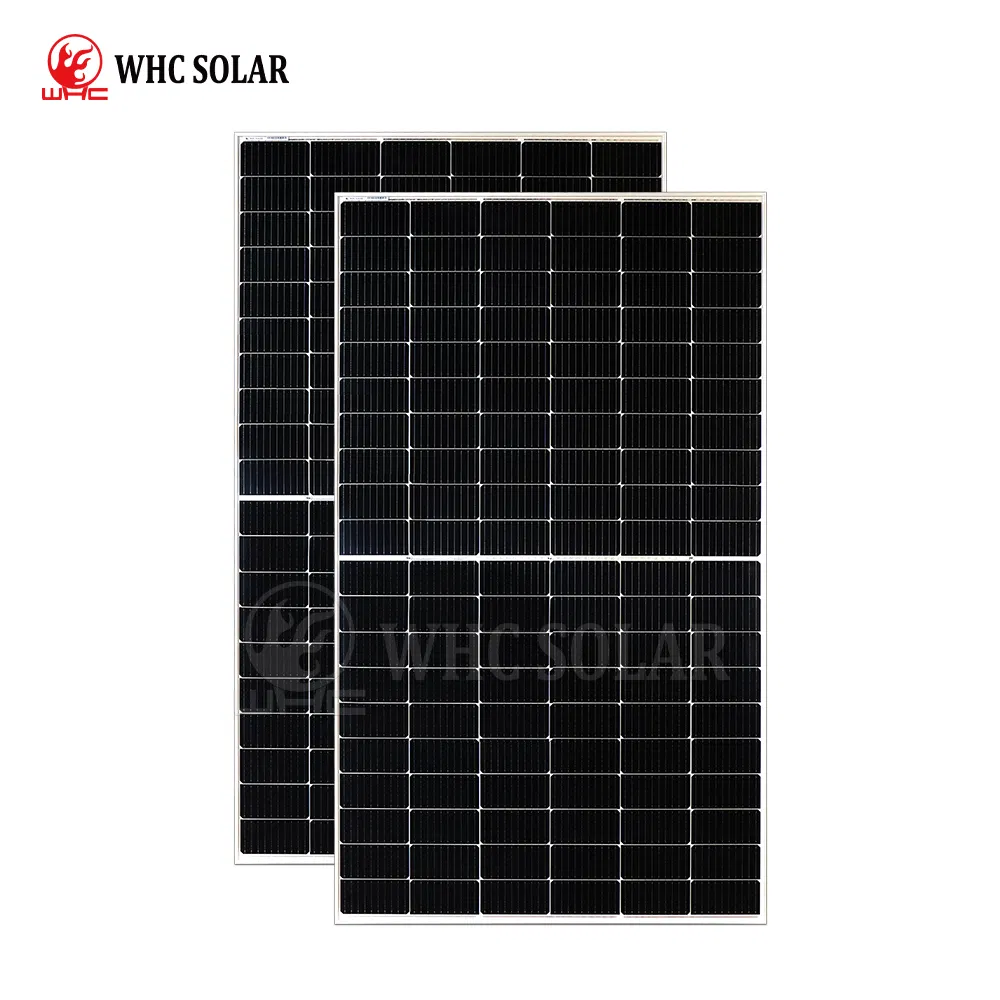

Mono Solar Panel Details

Mono Solar Panel

  • Model: 450M-120
  • Max Power Voltage: 34.67V
  • Max Power Current: 12.98A
  • Open Circuit Voltage: 41.25V
  • Short Circuit Current: 13.89A
  • Dimensions: 1909 * 1134 * 35 mm

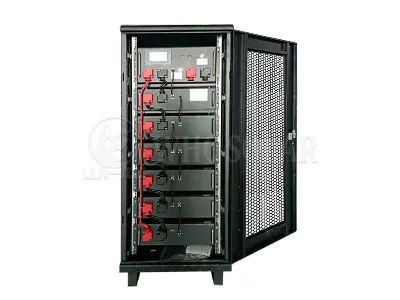

LiFePO4 Lithium Battery Specs

LiFePO4 Lithium Battery

  • Model: 192V 100AH
  • Type: LiFePO4 Lithium Battery
  • Nominal Voltage: 204.8V
  • Capacity: 20480WH
  • Lifespan: 10 Years
  • BMS Max Discharging Current: 100A
Solar Controller Features

Solar Controller

  • Model: MPPT/19250F
  • Type: Heatsink Cooling
  • Max. Charging Current: 50A
  • Max. PV Open Circuit Voltage: 430V
  • DC Input Voltage: 192V
  • MPPT Efficiency: 99%
Solar Inverter Specifications

Solar Inverter

  • Model: 192V 15KW Inverter
  • Type: Low Frequency IGBT Pure Sine Wave with Big Transformer
  • DC Input Voltage: 192V
  • AC Input Voltage: 220V 50/60HZ
  • Recharging Current: 10A
  • AC Output Voltage: 220V 50/60HZ
PV Combiner Box Details

PV Combiner Box

  • Combiner Box: N6 Plus
  • Waterproof Rating: IP65
  • Max Output Voltage: 1000V
  • DC Output Circuit Breaker: Yes
  • Lightning Protection: Yes

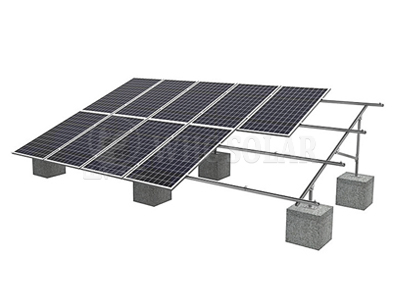

Mounting Support Specs

Mounting Support

  • Solar Panel Bracket
  • Wind Load Capacity: 55m/s
  • Structure: Anodized Aluminum / Stainless Steel
  • Angle Adjustable: Yes
PV Cable Specifications

PV Cable

  • Solar Cable Length: 100m
  • Type: RVV 1*6 mm²
  • Material: Pure Copper
  • Temperature Rating: -40°C to 120°C (Lifespan > 25 Years)

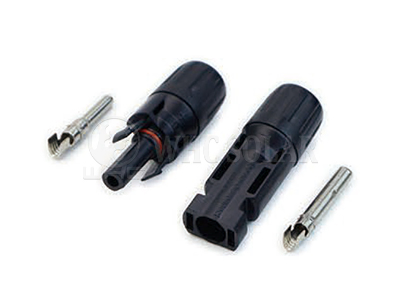

MC4 Connector Features

MC4 Connector

  • MC4 Solar Connector
  • Waterproof Rating: IP68
  • High Quality Safe Protection
  • Quick Operation with Copper Core

Packing & Delivery

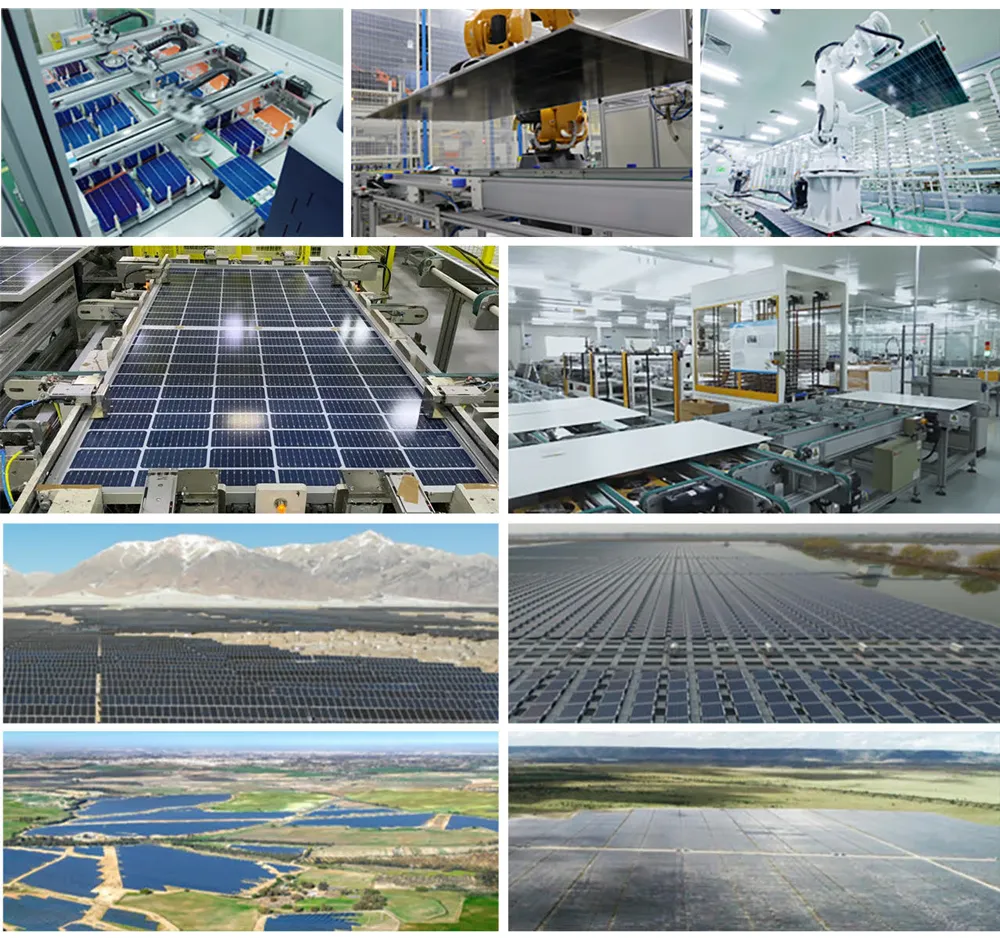

Packing and Delivery Details
Logistics and Packaging Layout

Frequently Asked Questions

Q1 Are the products manufactured directly by your facility?
Yes, all products are manufactured directly in our state-of-the-art production factory, ensuring strict quality control and direct sourcing value.
Q2 Can custom logos be printed on the product covers?
Yes, OEM services are fully supported. Custom logos can be printed directly on the battery casings based on design requirements.
Q3 What product certifications have been obtained?
Our products have secured multiple national patents and conform to CE, RoHS, and ISO9001:2008 quality management system standards.
Q4 What is the estimated delivery timeframe?
Standard delivery typically ranges between 14 to 20 days. The exact timeline varies depending on the specific product configuration and batch quantity.
Q5 What are your primary global markets?
Our primary distribution networks span across Africa, South America, the Middle East, Europe, and other global regions.
Q6 What payment methods are supported for orders?
We accept multiple standard payment channels including T/T (Bank Transfer), Western Union, MoneyGram, and other mutually convenient transaction methods.
