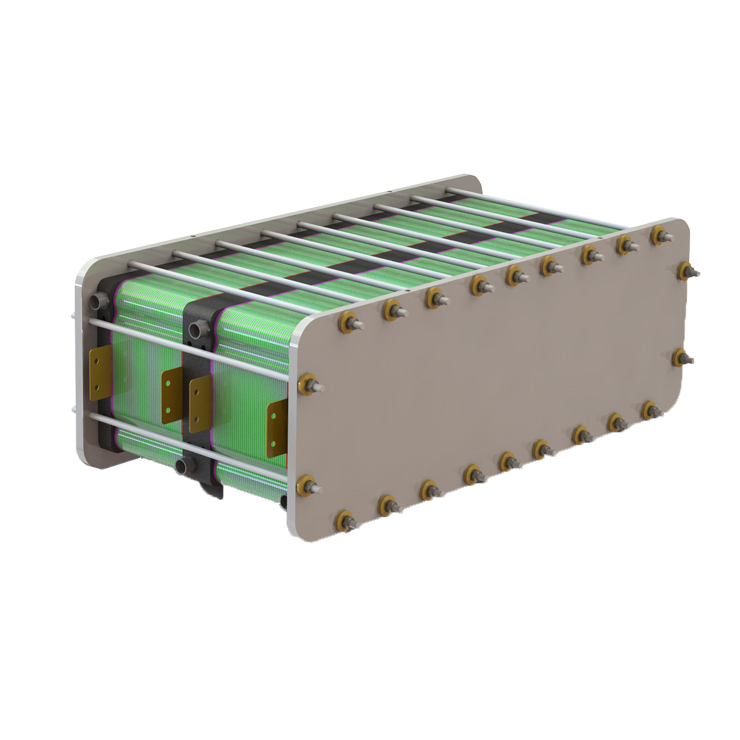

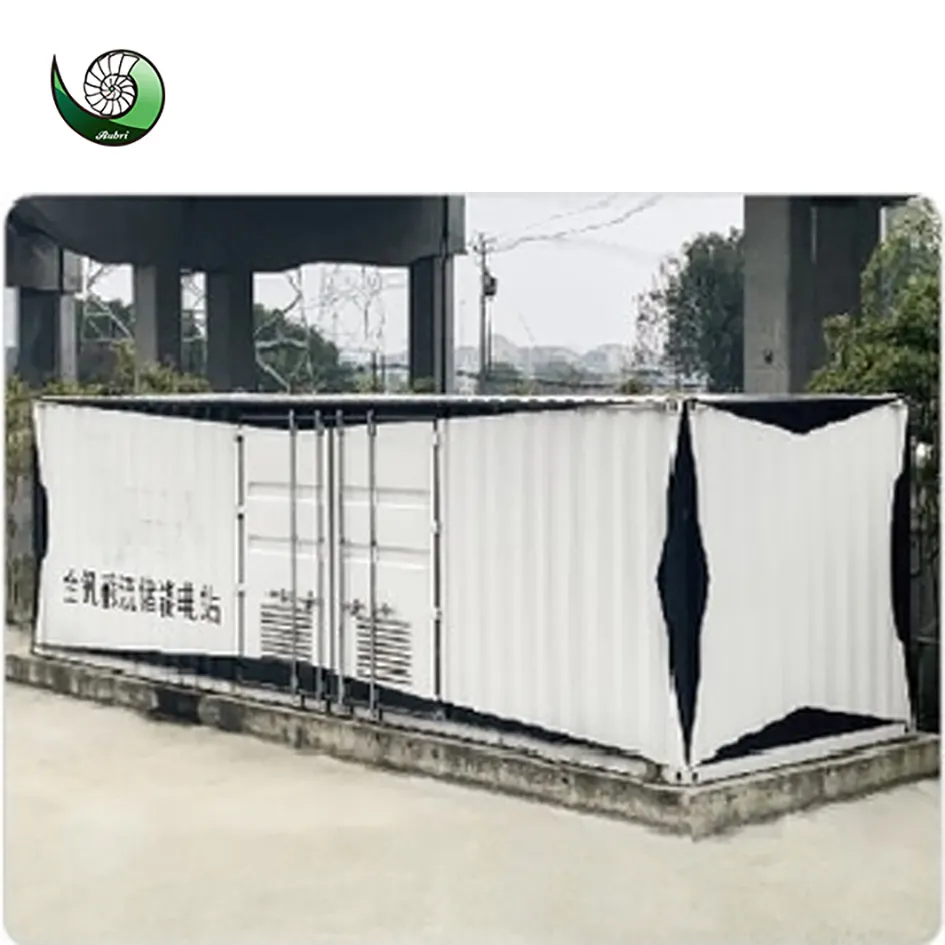

All vanadium flow battery energy storage power station is a comprehensive energy storage system that integrates stack, electrolyte, pumping system, battery management system, energy management system, temperature control system, and other auxiliary systems, with complete functions. The energy storage power station can discharge for up to 4 to 10 hours or even longer at rated power, and the discharge duration can be achieved by adjusting the amount of electrolyte in the energy storage power station. The energy storage power station can charge and discharge more than the rated power, achieving high-power operation.
Product Parameters

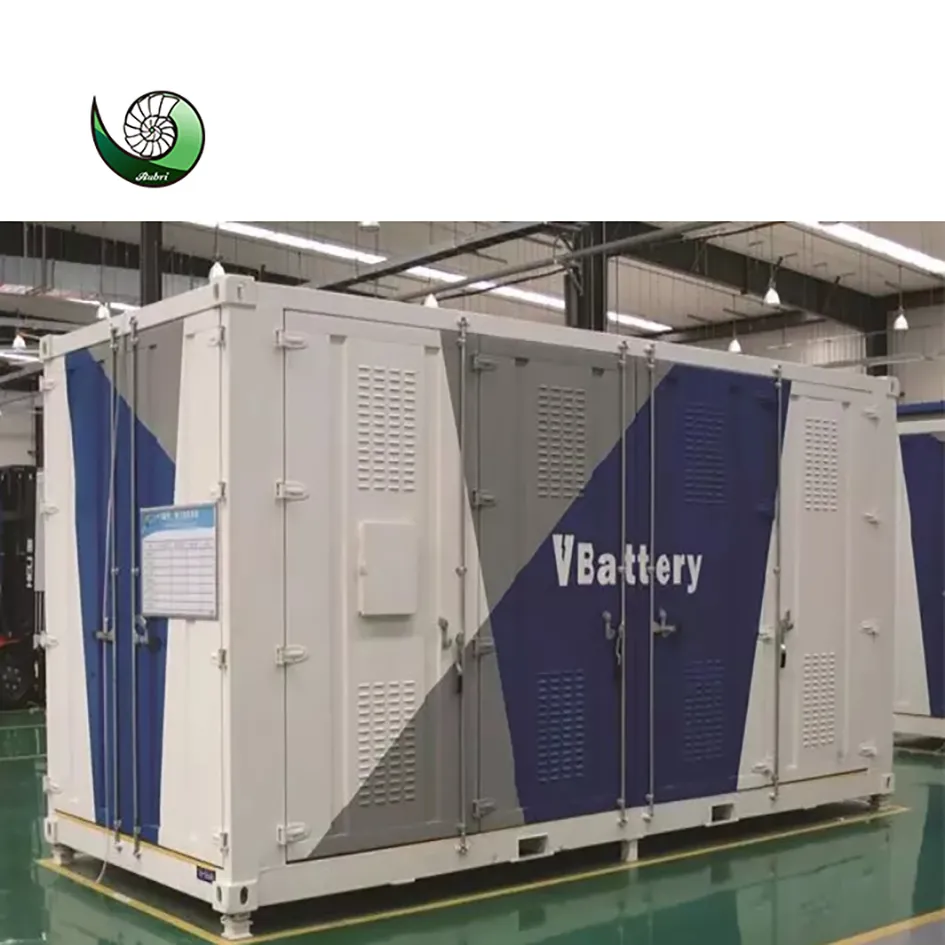

125KW Vanadium Redox Flow Battery Data Sheet
Vanadium Redox Flow Battery VFB125/500
No.
Parameter Type
Unit
Data
1
Rated power
KW
125
2
Rated capacity
KWh
500
3
Maximum power
KW
500
4
Energy efficiency
/
>75%
5
System weight
T
58.75
6
System size
L*W*H(m)
10.5*2.8*2.8
7

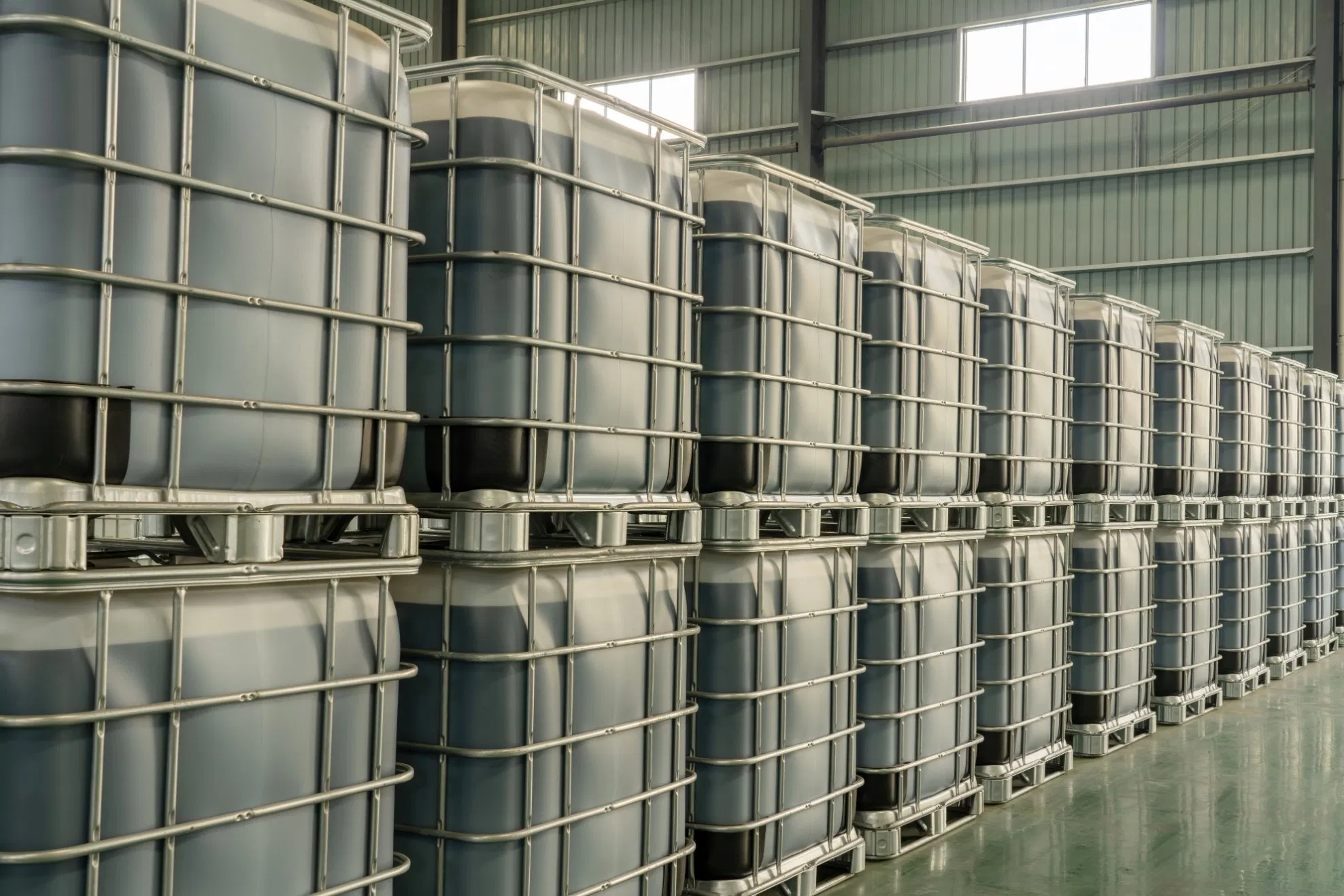

Electrolyte weight
T
40
8
Electrolyte volume
m³
30
9
Charge voltage limiting
VDC
219
10
Discharge voltage limiting
VDC
232
11
Cycle
cycles
≥15000
12
Service life
years
≥20
Packaging & Shipping

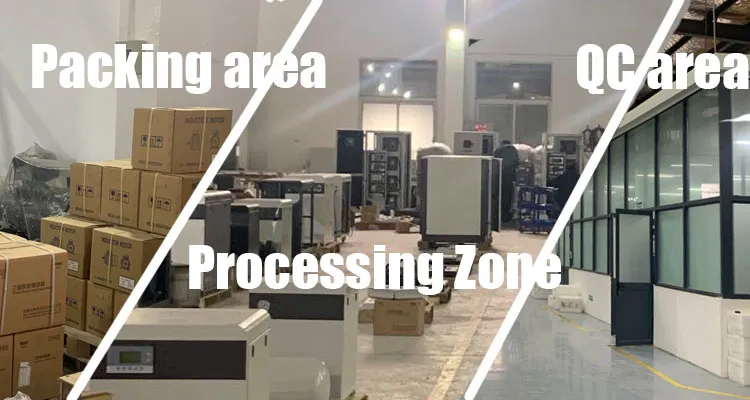

Company Profile
We were established in 2011. We supply various products in the hydrogen energy industry chain, including but not limited to hydrogen production, hydrogen storage, hydrogen supply, electric maintenance and BOP parts, fuel cell system assemblies, fuel cell vehicles, etc.
We have an experienced professional technology research and development team, which can provide professional services from product selection and matching, system design, product customization and development and technical support. We work with well-known universities and scientific research institutions at home and abroad, such as the University of Science and Technology of China, the University of Auckland, Jilin University, Wuhan University of Technology, Sun Yat-sen University, etc. The first hydrogen fuel cell forklift has been developed for the domestic leading forklift enterprise Heli Forklift.
At the same time, our stack, fuel cell system, hydrogen bicycle/scooter, hydrogen UAV and hydrogen production equipment are exported to dozens of countries and regions such as the United States, the Netherlands, Italy, Germany, South Korea, India and Malaysia.
Frequently Asked Questions
Q
What is a Vanadium Redox Flow Battery energy storage system?
It is a comprehensive energy storage system that integrates stack, electrolyte, pumping system, battery management system (BMS), energy management system (EMS), temperature control system, and other auxiliary systems with complete functionalities.
Q
How long can the power station discharge at its rated power?
The energy storage power station can discharge for up to 4 to 10 hours or even longer at rated power. The specific discharge duration can be achieved and adjusted by modifying the amount of electrolyte in the system.
Q
What are the cycle and service life specifications of the system?
The system features an exceptional lifecycle designed to withstand ≥15,000 cycles with an expected service life of ≥20 years.
Q
What are the dimensions and total weight of the VFB125/500 system?
The overall system size is 10.5m * 2.8m * 2.8m (L*W*H). The total system weight is 58.75 tons, which includes an electrolyte weight of 40 tons (with an electrolyte volume of 30 m³).
Q
What other products are provided in the hydrogen energy industry chain?
Beyond battery systems, we supply hydrogen production equipment, hydrogen storage, hydrogen supply systems, electric maintenance, BOP parts, fuel cell assemblies, fuel cell vehicles, hydrogen bicycles/scooters, and hydrogen UAVs.
